JKP76GP3BG 1

JKP76GP3BG 1

Written by

in

JKP76GP3BG 1

Products

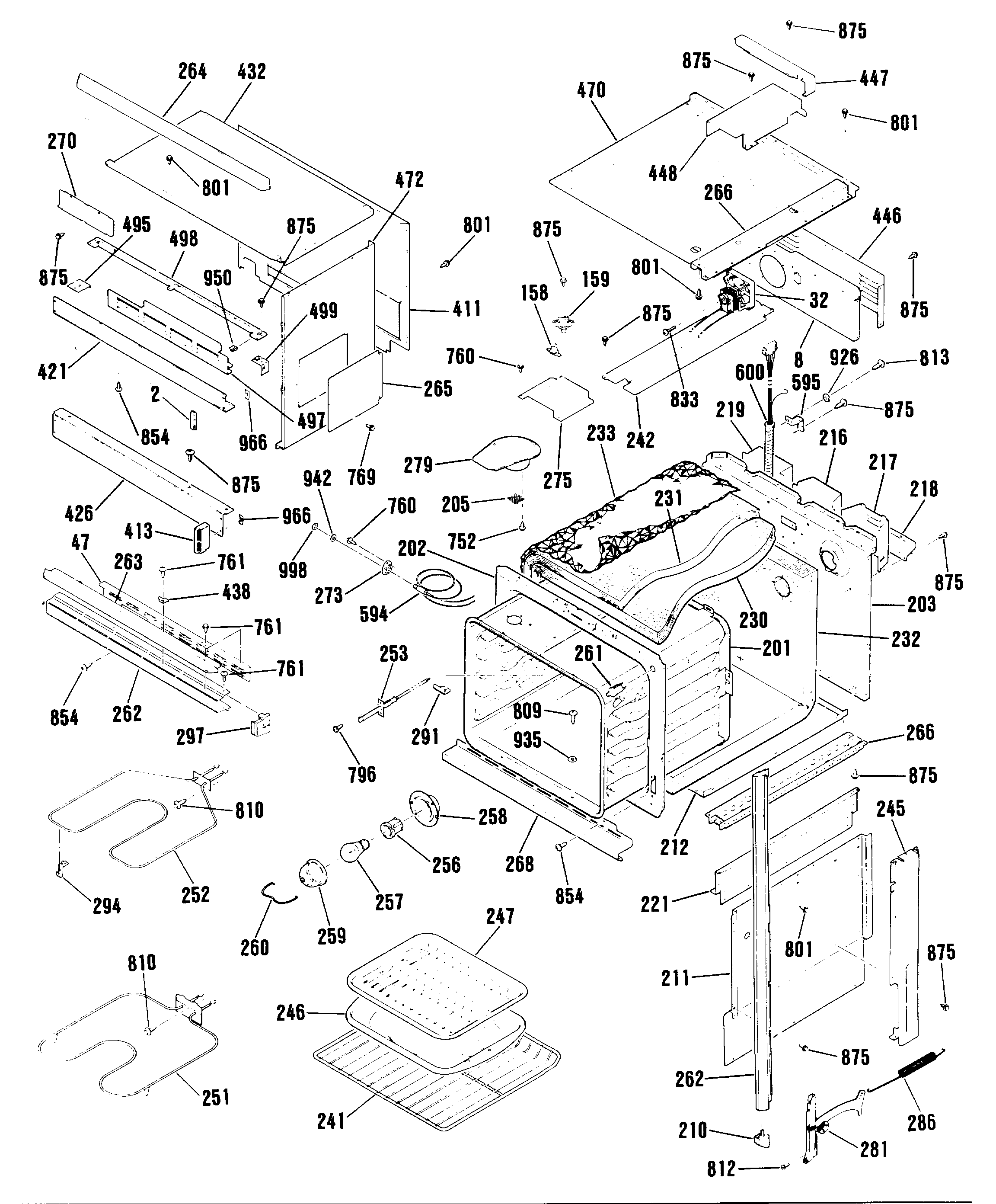

PositionProduct
2END CAP-RT
2END CAP-LT
8FAN SUPPORT-LOWER
32FAN ASM-LOWER
42FUSE INSULATOR
158WB24K5033 GE Oven Limit Switch
159WB24K5049 GE Oven Limit Switch
201GEN WB63K5086
202GEN WB63K5084
203GEN WB63K5078
210GEN WB07K5159
210GEN WB07K5158
211GEN WB63K5085
212GEN WB63K5080
216GEN WB34K5069
217GEN WB34K5070
218GEN WB34K5067
219WB34K5082 GE Oven Wire Cover Conduit
221CAB SIDE EXTENSION-LOW
230WB35K5048 GE Inner Wrapper Insulation
231WB35K5068 GE Insulation Wrapper
232INSULATION BACK/BTTM-UPR
233GEN WB34K5080
241WB48T10093 GE Oven Range Rack
242WB38K5041 GE Vent Box
245GEN WB02K5139
246CERAMIC TRAY
247WB48X10056 GE Broil Pan Set, Large Porcelain
253GEN WB21X5310
256WB8K5029 GE Oven Lamp Holder
256GEN WB08K5096
257GEN BUY-LOCAL
257GEN WB08K5032
258GEN WB02X7693
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261GEN WB24K5061
262GEN WB07K5273
262WB7K5101 GE Oven Vent Trim
262GEN WB07K5274
263WB7K5378 GE Oven Brow Trim
264GEN WB07K5272
265ACCESS COVER
266BASE RAIL MICROWAVE
266WB63K5079 GE Rail Base
268GEN WB07K5256
270LIGHT COVER
273PROBE COVER
275WB34K5078 GE Oven Vent Box Cover
281GEN WB14K5007
281GEN WB14K5006
286OV DR SPRING-UPPER
291GEN WB02X9152
297GEN WB36K5101
297GEN WB36K5102
411CABINET BACK
413END CAP-CENTER-RT-BLK
413CTR TRIM END CAP-LT-BLK
413GEN WB63K5124
421ANTENNA-M/W
421GEN WB07K5277
426GEN WB07K5264
432CABINET TOP
438BOTTOM WINDOW-M/W
438LO TRIM SPRING CLIP
446WB34K5089 GE Wire Center Cover
447WIRE COVER-MICRO SIDE
448GEN WB34K5185
470COMPARTMENT BOTTOM
472CABINET SIDE-RT
472CABINET SIDE-LT
497GEN WB02X7628
497GEN WB38K5047
498CABINET BRACE
499CABINET BRACE BRACKET
594RECEPTACLE JACK
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18K5215
752GEN WB00X6542
760WB1X536 GE Oven Screw
761WB1K5029 GE Oven Screw
769WB1X500D GE Oven Screw Package
796WB1K5116 GE Oven Screw
801WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
812WB1K5191 GE Oven Zinc FL Screw
813WB1X1261 GE Oven Screw
833WB1X1131 GE Screw 6-32
854GEN WB01X1328
854SCREW-BRT. NI.
875WH2X930 GE Screw
926GROUND WASHER
935GEN WB01X1201
950CABLE CLIP
966PUSH ON CLIP
998WB1X5572 GE Oven Nut
