JKP77WP2WG 1

JKP77WP2WG 1

Written by

in

JKP77WP2WG 1

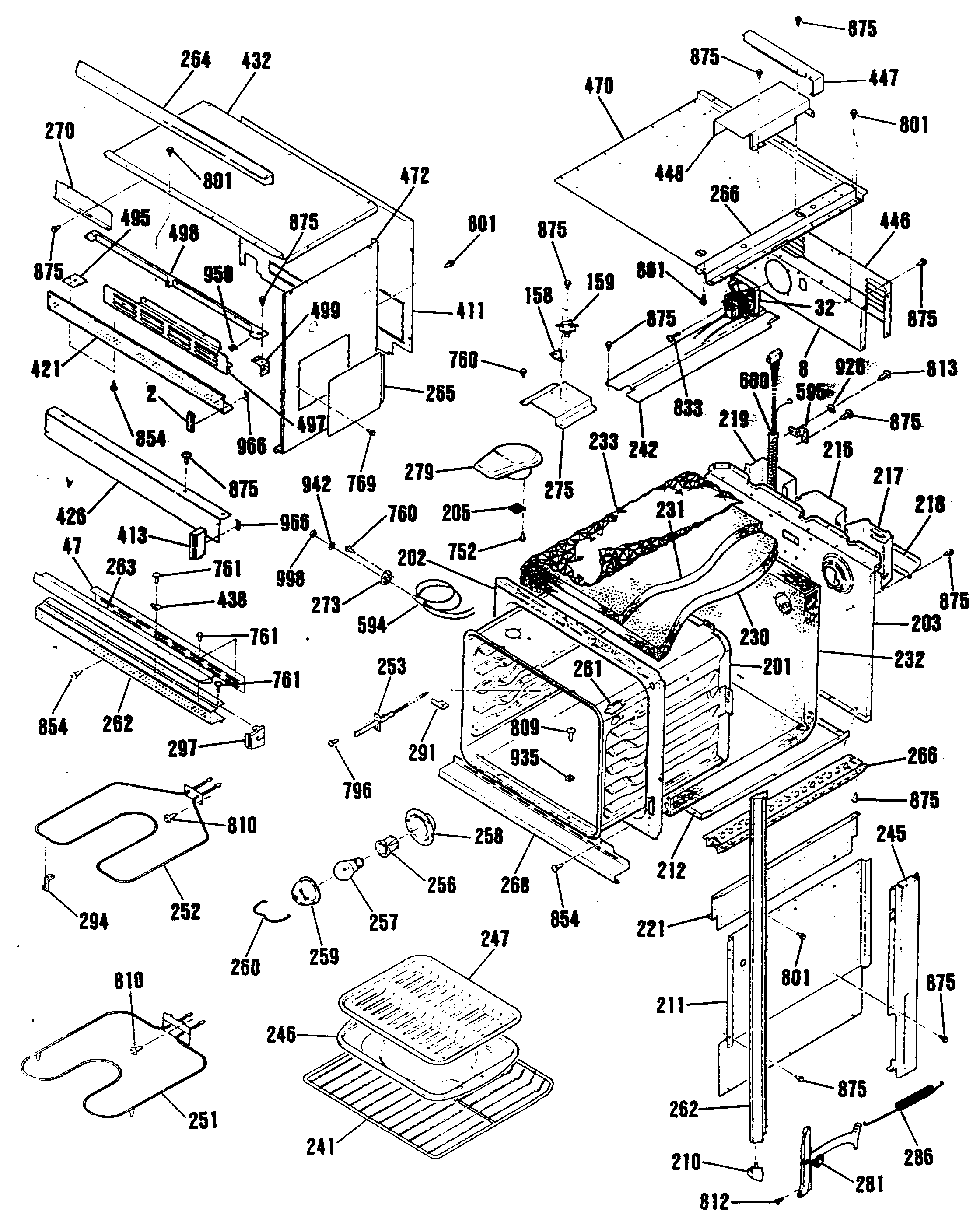

Products

PositionProduct
32FAN ASM-LOWER
47WB38K5029 GE Oven Vent Barrier
47GEN WB02X7724
158WB24K5033 GE Oven Limit Switch
201GEN WB63K5086
202GEN WB63K5084
203GEN WB63K5078
205WB6K5026 GE Oven Smoke El Screw
210GEN WB07K5161
210GEN WB07K5160
211GEN WB63K5085
212GEN WB63K5080
216GEN WB34K5069
217GEN WB34K5070
218GEN WB34K5067
219WB34K5082 GE Oven Wire Cover Conduit
221CAB SIDE EXTENSION-LOW
230WB35K5048 GE Inner Wrapper Insulation
231WB35K5068 GE Insulation Wrapper
233GEN WB34K5080
241WB48T10093 GE Oven Range Rack
242WB38K5041 GE Vent Box
245GEN WB02K5139
246WB48X10056 GE Broil Pan Set, Large Porcelain
246CERAMIC TRAY
251WB44K5013 GE Oven Bake Element Range
252WB44K5009 GE Oven Broil Element
253SENSOR ASM
256GEN WB08K5096
256WB8K5029 GE Oven Lamp Holder
257GEN BUY-LOCAL
257GEN WB08K5032
258GEN WB02X7693
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261GEN WB24K5061
262GEN WB07K5223
262WB7K5236 GE Oven Vent Trim
262GEN WB07K5224
263TRIM-I BROW GRAY-UP
264GEN WB07K5199
265ACCESS COVER
266BASE RAIL MICROWAVE
266WB63K5079 GE Rail Base
268GEN WB07K5183
270LIGHT COVER
273PROBE COVER
275WB34K5078 GE Oven Vent Box Cover
279VENT BOX ASM-BLACK
281GEN WB14K5007
281GEN WB14K5006
286OV DR SPRING-UPPER
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
297GEN WB36K5108
297GEN WB36K5107
411CABINET BACK
413GEN WB36K5118
413GEN WB63K5124
413GEN WB36K5119
421ANTENNA-M/W
421GEN WB07K5090
426LOWER TRIM-M/W-WHITE
432CABINET TOP
438BOTTOM WINDOW-M/W
438LO TRIM SPRING CLIP
446WB34K5089 GE Wire Center Cover
447WIRE COVER-MICRO SIDE
448WIRE COVER-MICRO CENTER
470COMPARTMENT BOTTOM
472CABINET SIDE-LT
472CABINET SIDE-RT
495VENT TRIM BRACKET
497GEN WB02X7628
497VENT BARRIER TRIM
498CABINET BRACE
499CABINET BRACE BRACKET
594RECEPTACLE JACK
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18K5215
752WZ4X345D GE Screw Package 12 C92
760WB1X536 GE Oven Screw
761WB1K5029 GE Oven Screw
769WB1X500D GE Oven Screw Package
796WB1K5116 GE Oven Screw
801WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
812WB1K5191 GE Oven Zinc FL Screw
813WB1X1261 GE Oven Screw
833WB1X1131 GE Screw 6-32
854SCREW-BRT. NI.
854GEN WB01X1328
875GEN WB01X5716
875GEN WB01K5057
935GEN WB01X1201
942WB1X5573 GE Oven Washer
950CABLE CLIP
966PUSH ON CLIP
998WB1X5572 GE Oven Nut
