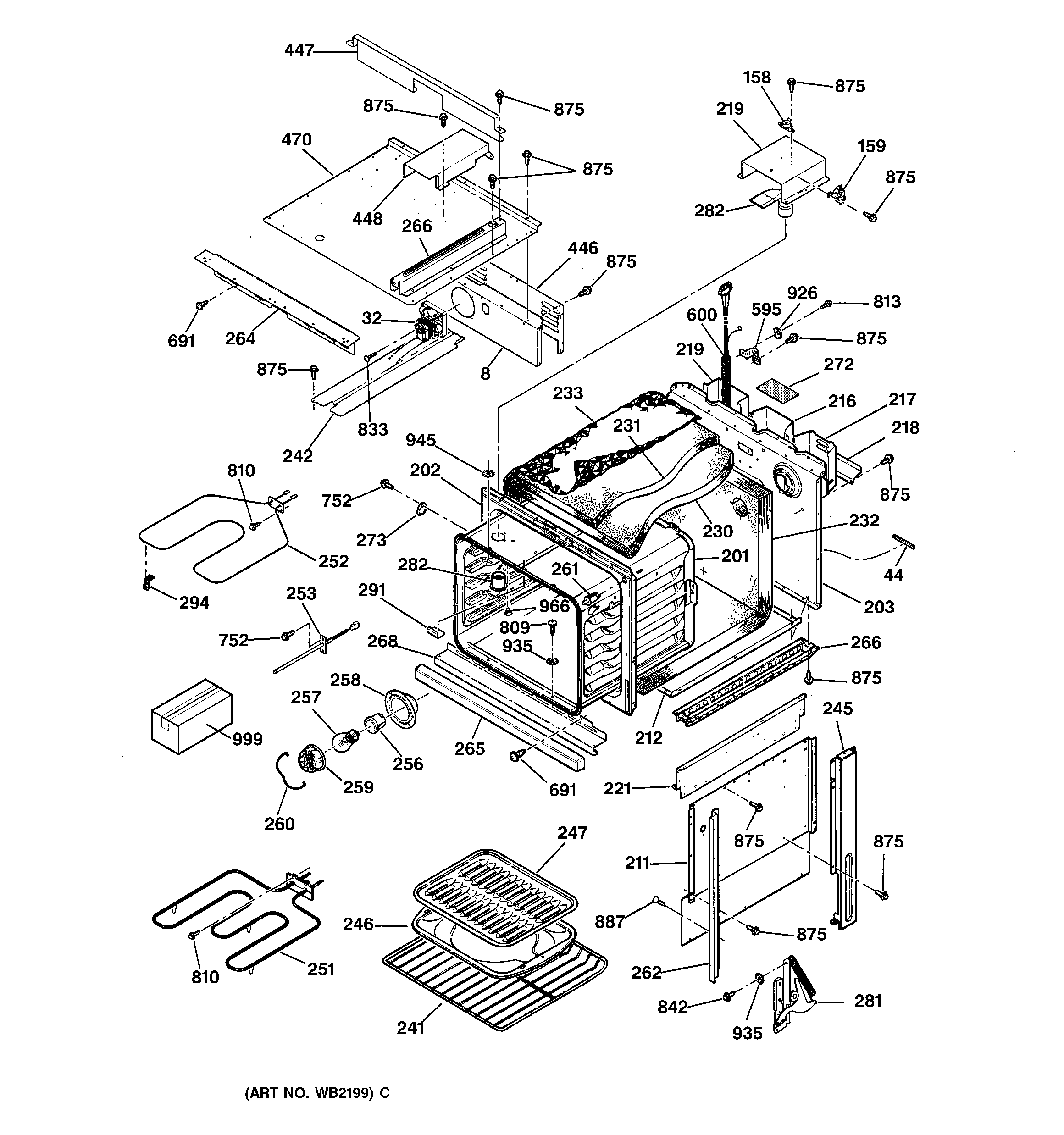

JKP85WA2WW OVEN BODY PARTS

JKP85WA2WW OVEN BODY PARTS

Written by

in

JKP85WA2WW OVEN BODY PARTS

Products

PositionProduct
8FAN SUPPORT-LOWER
32WB26K5072 GE Oven Fan Assembly
44GEN WB02K5225
158WB24K5033 GE Oven Limit Switch
159WB24K5049 GE Oven Limit Switch
201GEN WB63T10009
202GEN WB63T10036
203WB63K5167 GE Back Main
211WB63T10043 GE Cabinet Side
212GEN WB63K5080
216GEN WB34K5069
217GEN WB34T10006
218GEN WB34K5067
219WB34K5082 GE Oven Wire Cover Conduit
221GEN WB63K5174
230WB35K5048 GE Inner Wrapper Insulation
231WB35K5068 GE Insulation Wrapper
232INSULATION BACK/BTTM-UPR
233GEN WB34K5080
241WB48T10093 GE Oven Range Rack
242WB38K5041 GE Vent Box
245GEN WB02K5139
246WB49X690 GE Oven Glass Tray
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44T10007 GE Oven Bake Element
252WB44K5009 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256WB8K5029 GE Oven Lamp Holder
257GEN WB08X10012
257GEN BUY-LOCAL
258GEN WB02X7693
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261WB24T10147 GE Oven SPDT Light Switch
262GEN WB07T10091
262GEN WB07T10090
264GEN WB07T10057
265GEN WB07T10065
266GEN WB63T10052
266GEN WB63T10044
266WB63K5079 GE Rail Base
266GEN WB63X10014
268FT FRAME TRIM LWR (WHT)
272WB35K5112 GE Insulator Module
273GEN WB02K5365
281GEN WB10T10001
282GEN WB28T10005
282GEN WB28K5010
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
446GEN WB34T10015
446GEN WB34T10005
447GEN WB34T10014
448GEN WB34K5185
470GEN WB55T10043
595WB2K5126 GE Oven Condenser Clamp
600WB18X32567 GE Conduit Wire Assembly
691GEN WB01K5163
691WB1K5162 GE Oven Black Screw
752WB1K5200 GE Oven Screw 340531
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
813WB1X1261 GE Oven Screw
833WB1X1131 GE Screw 6-32
875WH2X930 GE Screw
887WB1K5172 GE Oven Screw
926GROUND WASHER
935WB1K5174 GE Oven Washer
945WB1K5046 GE Oven Washer
966WB2X9573 GE Oven Clip
999GEN WB18T10050
999GEN WB18T10051
999GEN 31-13669
999GEN 31-13682
999GEN 49-8923
999GEN WB18T10046
999GEN 31-10307
