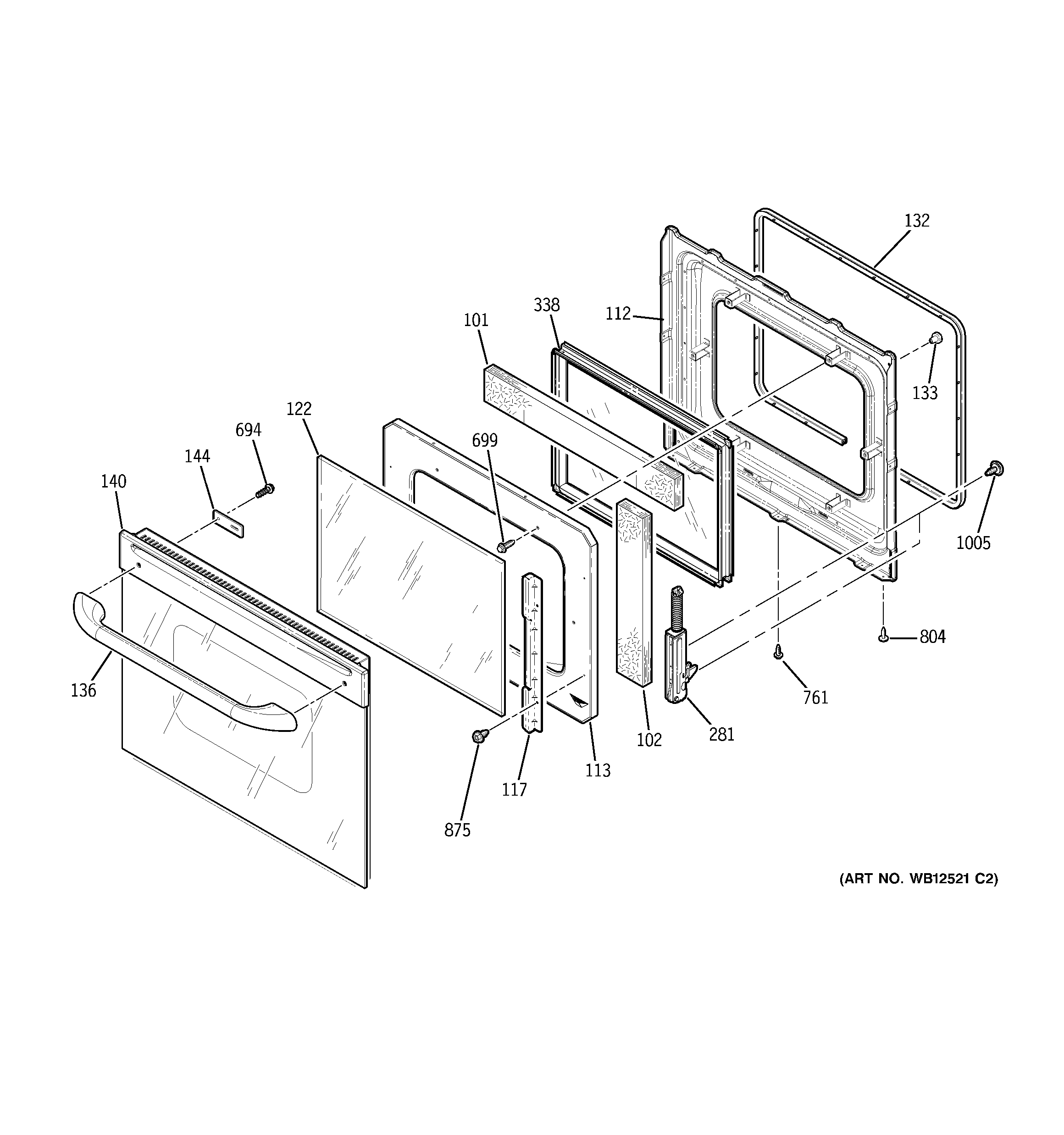

JKP86CF5CC DOOR

JKP86CF5CC DOOR

Written by

in

JKP86CF5CC DOOR

Products

PositionProduct
101GEN WB35T10062
102WB35T10061 GE Oven Door Insulation Side
112GEN WB55T10151
113WB56T10133 GE Oven Insulation Retainer
117WB56T10373 GE Oven Door Retainer Kit
122GEN WB57T10185
132WB32T10010 OVEN DOOR GASKET
133WB01T10052 GE Oven Foam Tape
133WB01T10022 GE Oven Door Bumper
133WB03T10156 GE Oven Door Bumper
136GEN WB15T10113
136GEN WB15T10111
136GEN WB15T10112
140WB57T10264 GE Oven Door Outer Assembly 27 (BK)
140GEN WB57T10266
140GEN WB57T10265
144GEN WB02T10147
281WB10T10074 GE Oven Right Door Hinge
281WB10T10075 GE Oven Left Door Hinge
338WB55T10086 GE Oven Window Assembly
694WB01T10066 GE Oven Screw 10-16 XC02
699WB1M1 GE Oven Screw
761WB1K5029 GE Oven Screw
804WB1X681 GE Oven Screw
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
1005WB01T10008 GE Oven Screw 10-32
