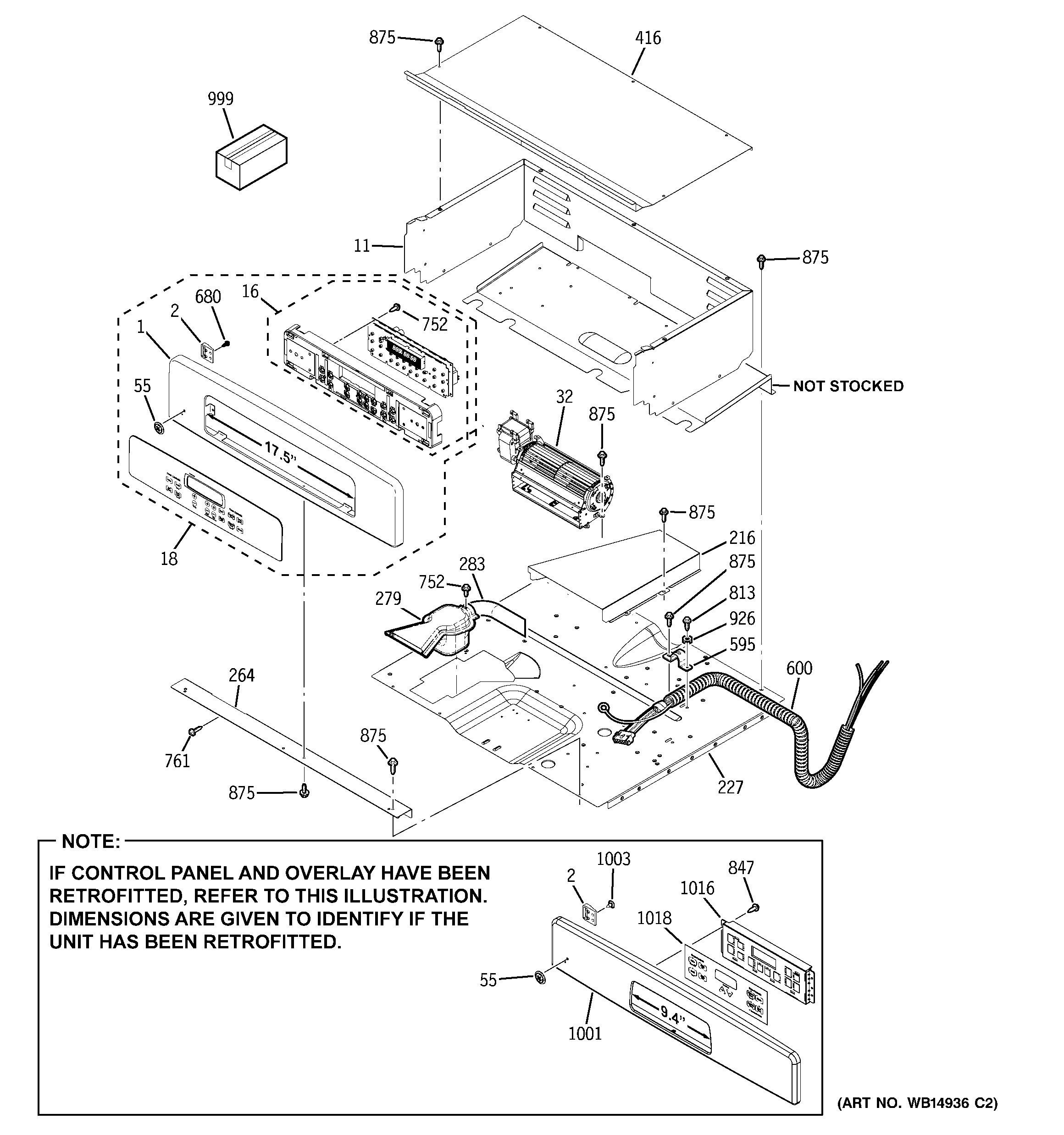

JKS10BM1BB CONTROL PANEL

JKS10BM1BB CONTROL PANEL

Written by

in

JKS10BM1BB CONTROL PANEL

Products

PositionProduct
1GEN WB36T11015
2GEN WB02T10376
11WB02T10362 GE Fan Housing
16KEYPANEL BOARD ASM TO11
18GEN WB49T10061
32GEN WB26T10057
55WB02T10359 GE Oven Badge
216WB34T10057 GE Oven Top Cover Wire
227GEN WB02T10356
264GEN WB07T10335
279WB38T10019 GE Oven Vent Box Assembly
283WB28T10212 GE Inlet Duct Vent
416WB02T10363 GE Electrical Top Cover
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18T10221
600WB18T10447 GE Oven Wire Conduit Assembly
680WR1X1850 GE Refrigerator Screw
752WB1K5200 GE Oven Screw 340531
761WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
813WB1X1261 GE Oven Screw
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875WH2X930 GE Screw
926GROUND WASHER
999GEN 49-80433
999GEN 31-14520
999GEN 31-10748
999GEN 31-10730
999GEN 31-10647
999INSTR INSTALL OVN DOOR
1001GEN WB36T11269
1003WZ4X245D GE Screw Package
1016GEN WB27T11162
1018GEN WB27T11338
