JKS3000DN2WW CONTROL PANEL

JKS3000DN2WW CONTROL PANEL

Written by

in

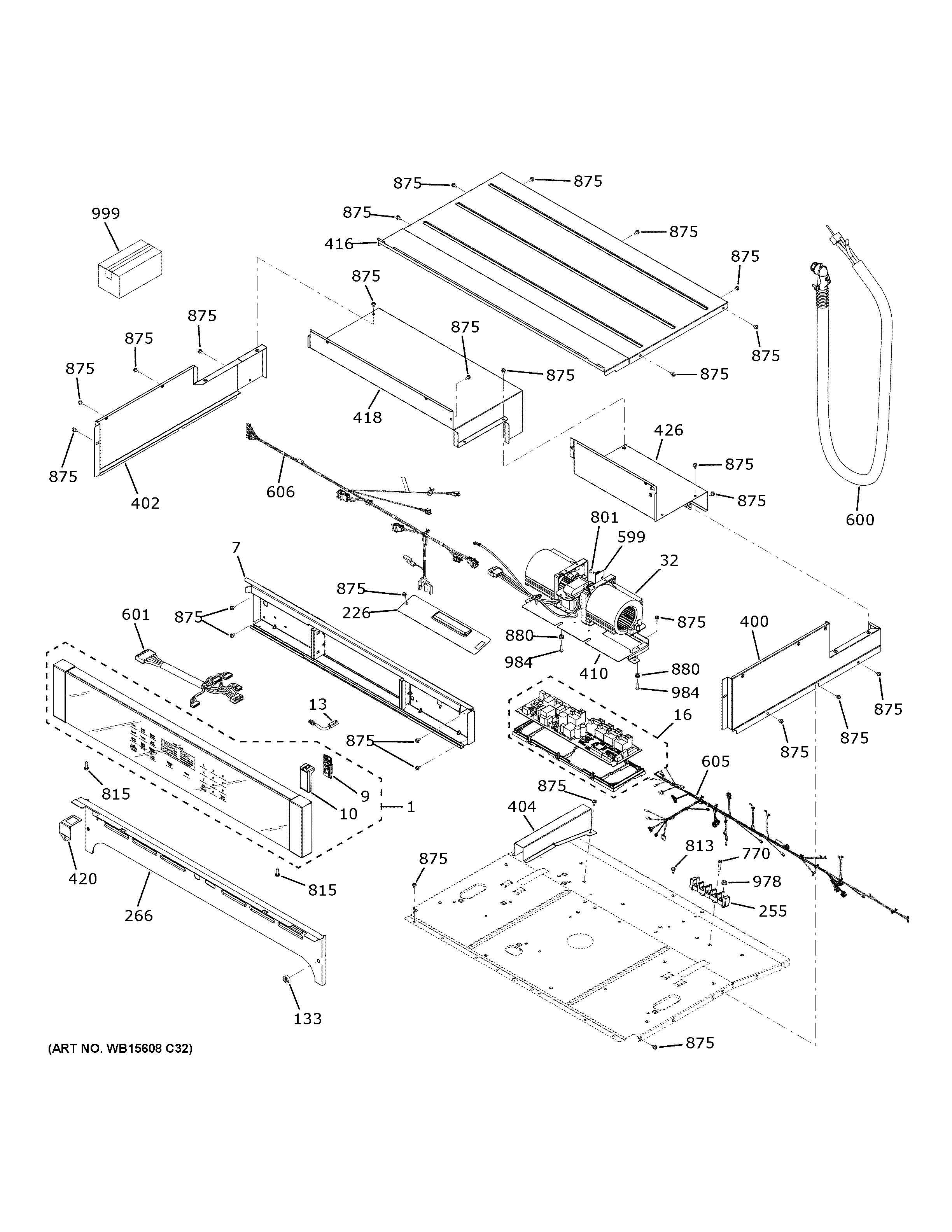

JKS3000DN2WW CONTROL PANEL

Products

PositionProduct
1WB27X39815 GE White UI LCD Control Panel
7WB07X32470 GE Control Panel Mounting BRack
9WB27X33353 GE Wi-Fi Module Kit
10WB02X20265 GE Transceiver Housing
13WB18X30704 GE Jumper
16WB27X36809 GE Control Assembly
32WB26X31060 GE Oven Blower Fan
133WB03T10341 GE Oven Door Bumper
226COVER LATCH ACCESS
255WB17K10001 GE Oven Block Terminal
266WB07X32859 GE Upper Vent Trim
400COVER TOP RIGHT EDGE
402WB44T10126 GE Oven Top Left Edge Cover
404WB34T10150 GE Upper Air Vent Channel
410WB37T10026 GE Oven Upper Fan Mount Bracket
416COVER TOP FRONT
418TOP REAR COVER
420WB24X33028 GE RJ45 Bracket
426COVER WIRE REAR
599WB27T11463 GE Oven Fan Sensor Board
600WB18X35246 GE Conduit Wire SWO
600WB18T10581 GE Oven 6 FT Optional Conduit
601WB18X32824 GE UI Communication and RJ45 Harness
605WB18X32833 GE Wire Harness Assembly
606WB18X33365 GE Harness Wire Latch Assembly
770WB1K5072 GE Oven Screw
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
813WB1X1261 GE Oven Screw
815WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8
875WH2X930 GE Screw
880WB01T10128 GE Grommet
978WB1X1259 GE Hex Nut
984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999INSTRUCTION INSTALL
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
999PM MINI MANUAL AND WIRING
