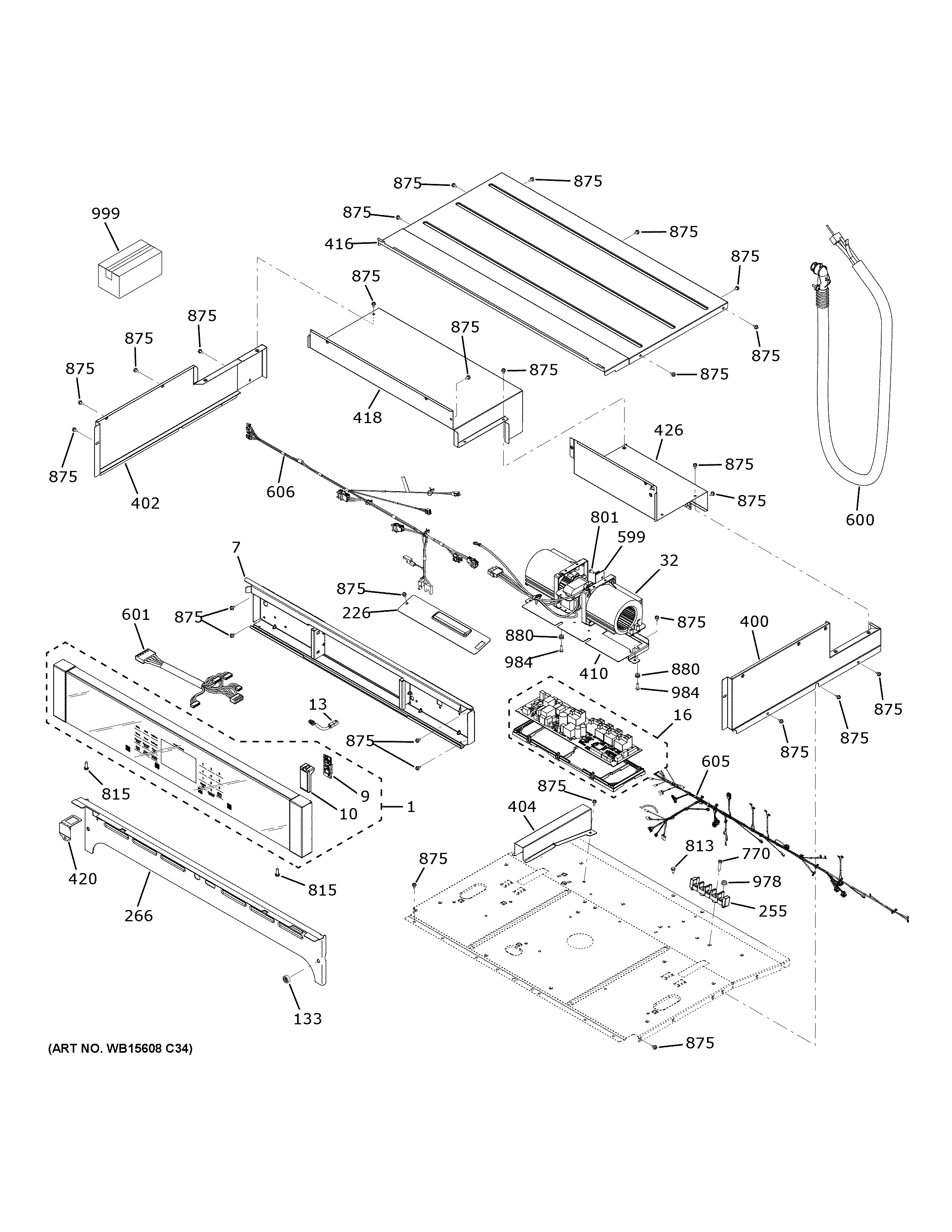

JKS5000SN1SS CONTROL PANELadmin2025-04-26T08:45:35+00:00JKS5000SN1SS CONTROL PANEL ProductsPositionProduct1WB27X39830 GE Stainless Wall Oven LCD Control Panel7WB07X32470 GE Control Panel Mounting BRack9WB27X33353 GE Wi-Fi Module Kit10WB02X20265 GE Transceiver Housing13WB18X30704 GE Jumper16WB27X36807 GE Control Flashed32WB26X31060 GE Oven Blower Fan133WB03T10341 GE Oven Door Bumper226WB34T10161 GE Access Latch Cover255WB17K10001 GE Oven Block Terminal266WB07X32859 GE Upper Vent Trim400COVER TOP RIGHT EDGE402WB44T10126 GE Oven Top Left Edge Cover404WB34T10150 GE Upper Air Vent Channel410WB37T10026 GE Oven Upper Fan Mount Bracket416COVER TOP FRONT418TOP REAR COVER420WB24X33028 GE RJ45 Bracket426COVER WIRE REAR599WB27T11463 GE Oven Fan Sensor Board600WB18X35246 GE Conduit Wire SWO600WB18T10581 GE Oven 6 FT Optional Conduit601WB18X32871 GE Oven UI COM and RJ45 Harness605WB18X32880 GE Main Harness Wire606LATCH COM WIRE HARNESS770WB1K5072 GE Oven Screw801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"813WB1X1261 GE Oven Screw815WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8875WH2X930 GE Screw880WB01T10128 GE Grommet978WB1X1259 GE Hex Nut984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN999INSTRUCTION INSTALL999PM INSTALL INSTRUCTIONS999PM MINI MANUAL AND WIRING999PM OWNERS MANUAL999MANUAL U&C TIP SHEET
