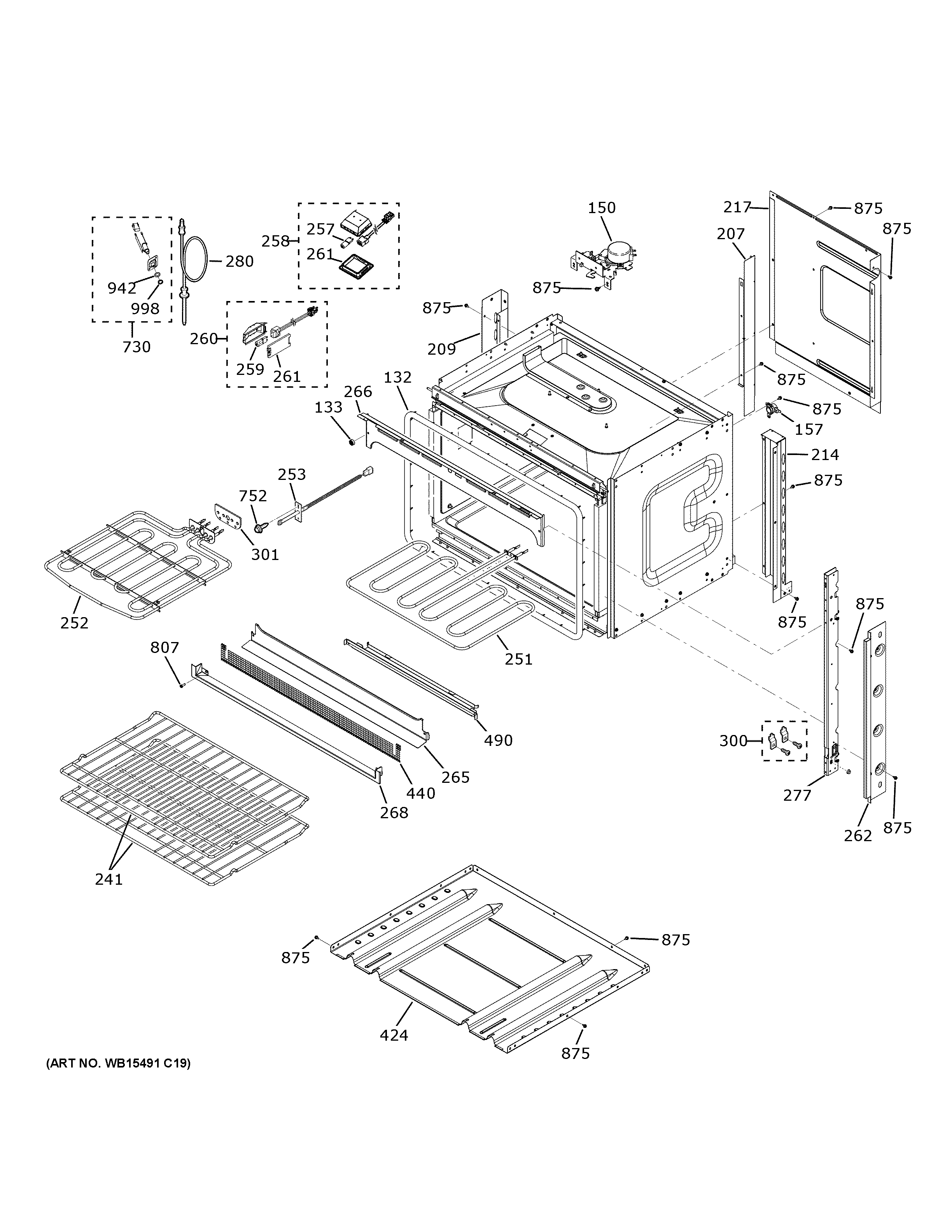

JKS5000SV1SS BODY PARTS

JKS5000SV1SS BODY PARTS

Written by

in

JKS5000SV1SS BODY PARTS

Products

PositionProduct
132WB35X34867 GE Oven Door Gasket
133WB03T10341 GE Oven Door Bumper
150LATCH ASM
157HIGH LIMIT SWITCH
207WB34T10134 GE Center Air Divider
209CHANNEL REAR
214WB55X10971 GE Rear Channel
217WB34T10135 GE Upper Rear Duct Cover
241WB48X32180 GE Oven Rack Assembly
251HIDDEN BAKE ELEMENT
252BROIL ELEMENT
253SENSOR ASM
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X31221 GE Oven Halogen Lamp Assembly
259WB25T10101 GE Oven Halogen Lamp Bulb G9
260WB25X31222 GE Halogen Lamp Assembly
261WB34X31317 GE Oven Light Lens
262WB07T10732 GE Oven Vertical Side Trim (Black)
265WB07T10807 GE Oven Lower Black Trim Vent
266WB07X32859 GE Upper Vent Trim
268WB07X32860 GE Oven Bottom Trim
277WB07T10751 GE Oven Vertical Left Brace Black
277WB07T10750 GE Oven Right Vertical Brace
280WB20T10024 GE Oven Thermistor Probe
300WB49X21652 GE Oven Hinge Bracket Assembly
301WB35X21972 GE Broil Element Gasket
424WB34T10155 GE Oven Bottom Air Duct Cover
440SCREEN SUPPORT
490WB55T10195 GE Oven Hidden Bake Cover
730WB18X23585 GE Oven Meat Probe and Harness
752WB01X21742 GE Screw
807WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
875WH2X930 GE Screw
942WB1X5573 GE Oven Washer
998WB1X5572 GE Oven Nut
