JKS5000SV1SS CONTROL PANEL

JKS5000SV1SS CONTROL PANEL

Written by

in

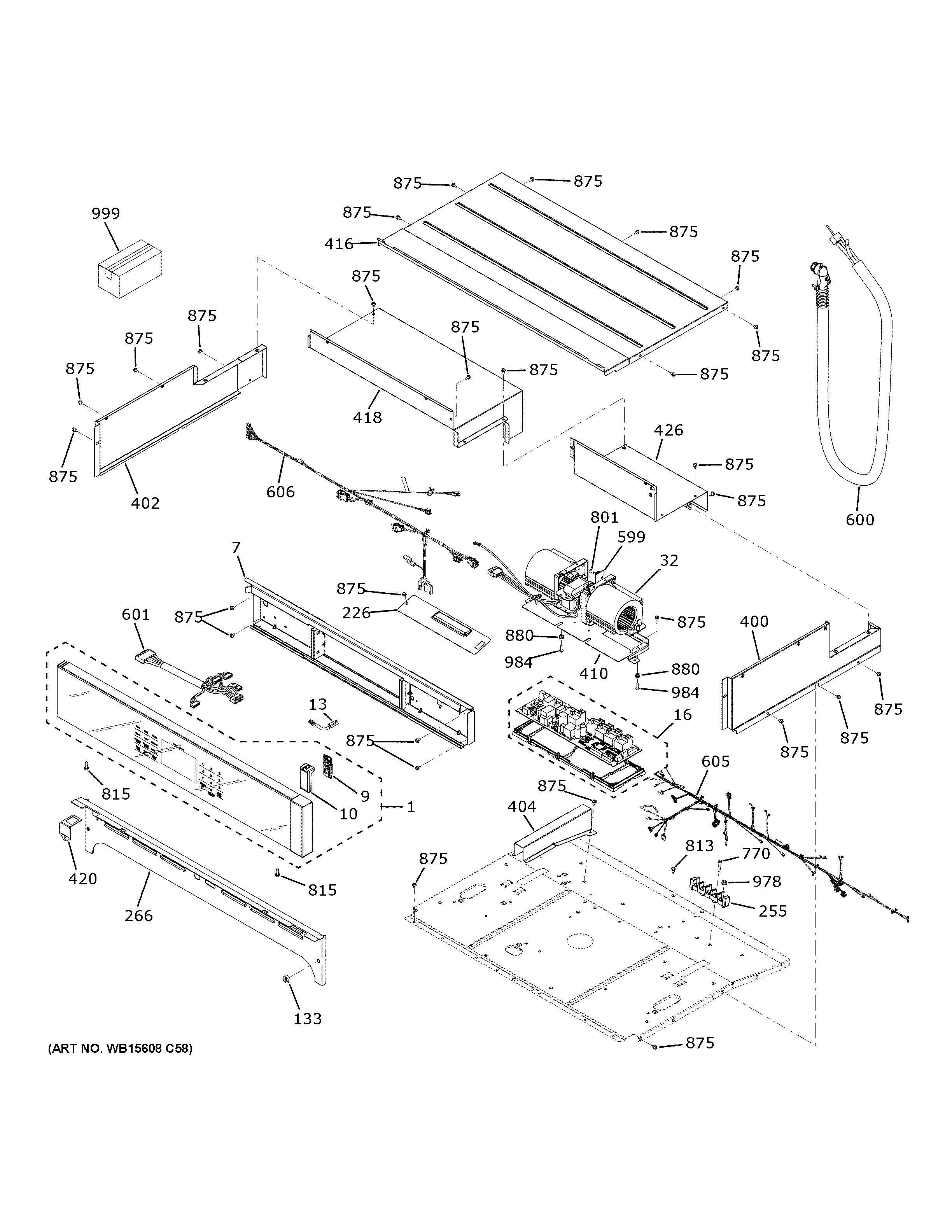

JKS5000SV1SS CONTROL PANEL

Products

PositionProduct
1CONTROL PANEL-STAINLESS
7WB07X32470 GE Control Panel Mounting BRack
9WB27X46666 GE Oven Wi-Fi/Bluetooth Board with Instructions
10WB02X20265 GE Transceiver Housing
13WB18X30704 GE Jumper
16CONTROL RC17 (FLASHED)
32WB26X31060 GE Oven Blower Fan
133WB03T10341 GE Oven Door Bumper
226COVER LATCH ACCESS
255WB17K10001 GE Oven Block Terminal
266WB07X32859 GE Upper Vent Trim
400COVER TOP RIGHT EDGE
402WB44T10126 GE Oven Top Left Edge Cover
404WB34T10150 GE Upper Air Vent Channel
410WB37T10026 GE Oven Upper Fan Mount Bracket
416COVER TOP FRONT
418TOP REAR COVER
420WB24X33028 GE RJ45 Bracket
426COVER WIRE REAR
599WB27T11463 GE Oven Fan Sensor Board
600WB18T10581 GE Oven 6 FT Optional Conduit
600WB18X35246 GE Conduit Wire SWO
601WB18X32871 GE Oven UI COM and RJ45 Harness
605WB18X32880 GE Main Harness Wire
606LATCH COM WIRE HARNESS
770WB1K5072 GE Oven Screw
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
813WB1X1261 GE Oven Screw
815WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8
875WH2X930 GE Screw
880WB01T10128 GE Grommet
978WB1X1259 GE Hex Nut
984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999INSTRUCTION INSTALL
999PM MINI MANUAL AND WIRING
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
