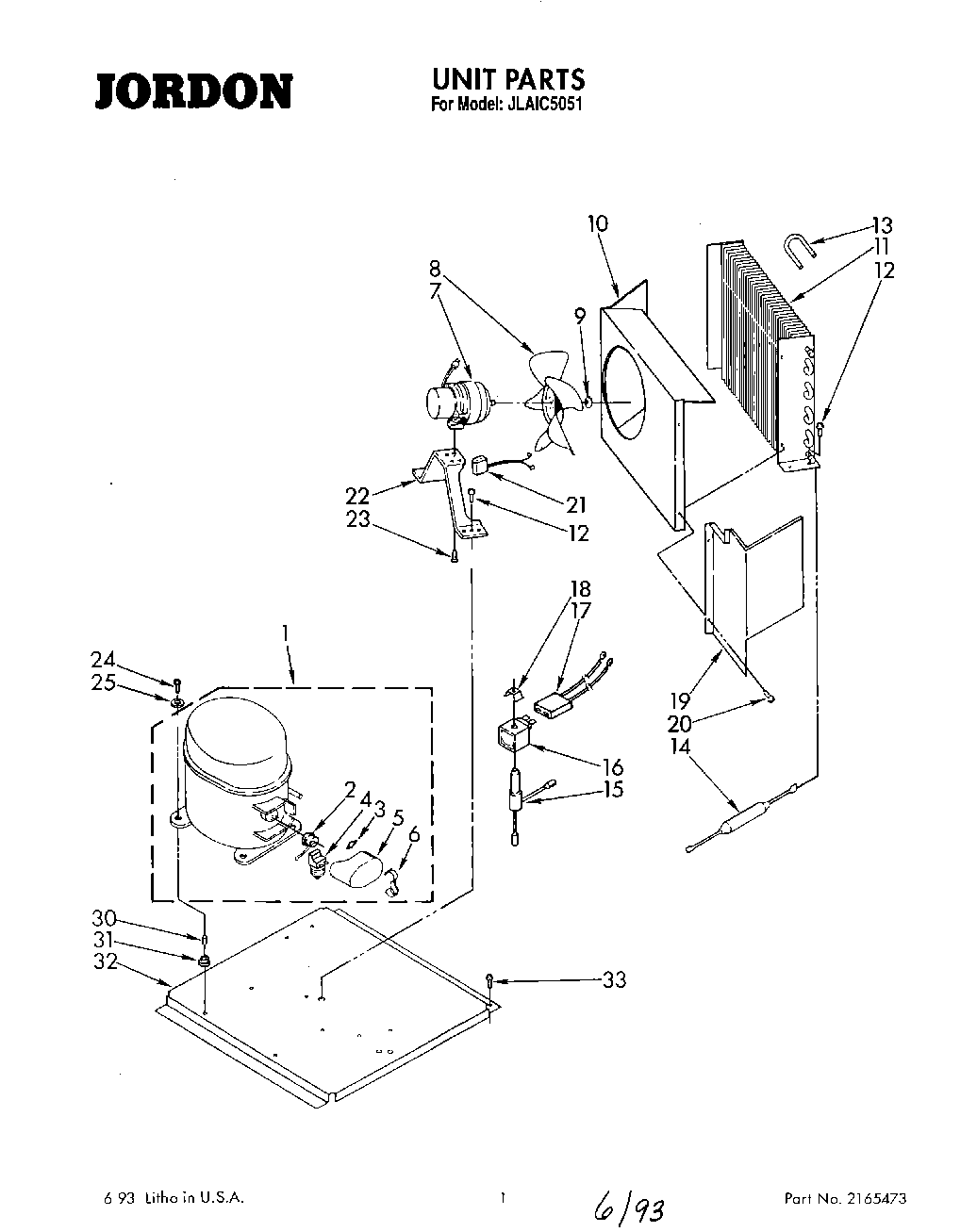

JLAIC5051 01 – UNIT, LITERATURE

Products

Position	Product
	WPL LIT758969
	WPL LIT2165473
	WPL LIT758860
	WPL LIT758883
1	Compressor, Service Kit
2	Overload
2	Overload
3	Spring, Overload
4	Relay, Start
4	Relay, Start
5	Cover
5	Cover, Terminal
6	Cover, Spring
6	Strap
7	Motor, Fan (Includes No. 23)
8	978655 Whirlpool Refrigerator Fan Blade
9	Nut, Hex 1/4-20
10	Shroud, Condenser
11	Condenser
12	Screw, 1/4-20 x 1/2
13	Accumulator
14	W10843121 Whirlpool Refrigerator Tube
15	Valve, Solenoid Coil
16	Coil, Solenoid
17	Harness, Wiring (Solenoid Coil)
18	Retainer, Solenoid Coil
19	Deflector, Air
20	WP90767 Whirlpool Screw
21	Harness, Wiring (Fan Motor)
22	Bracket, Fan Motor
23	Screw, 8-36 x 1/2 (4)
24	Screw, 5/16-18 x 1-1/4 (4)
25	Washer, Flat (4)
30	Sleeve (4)
31	Grommet (4)
32	WPL 758808
33	SCREW
