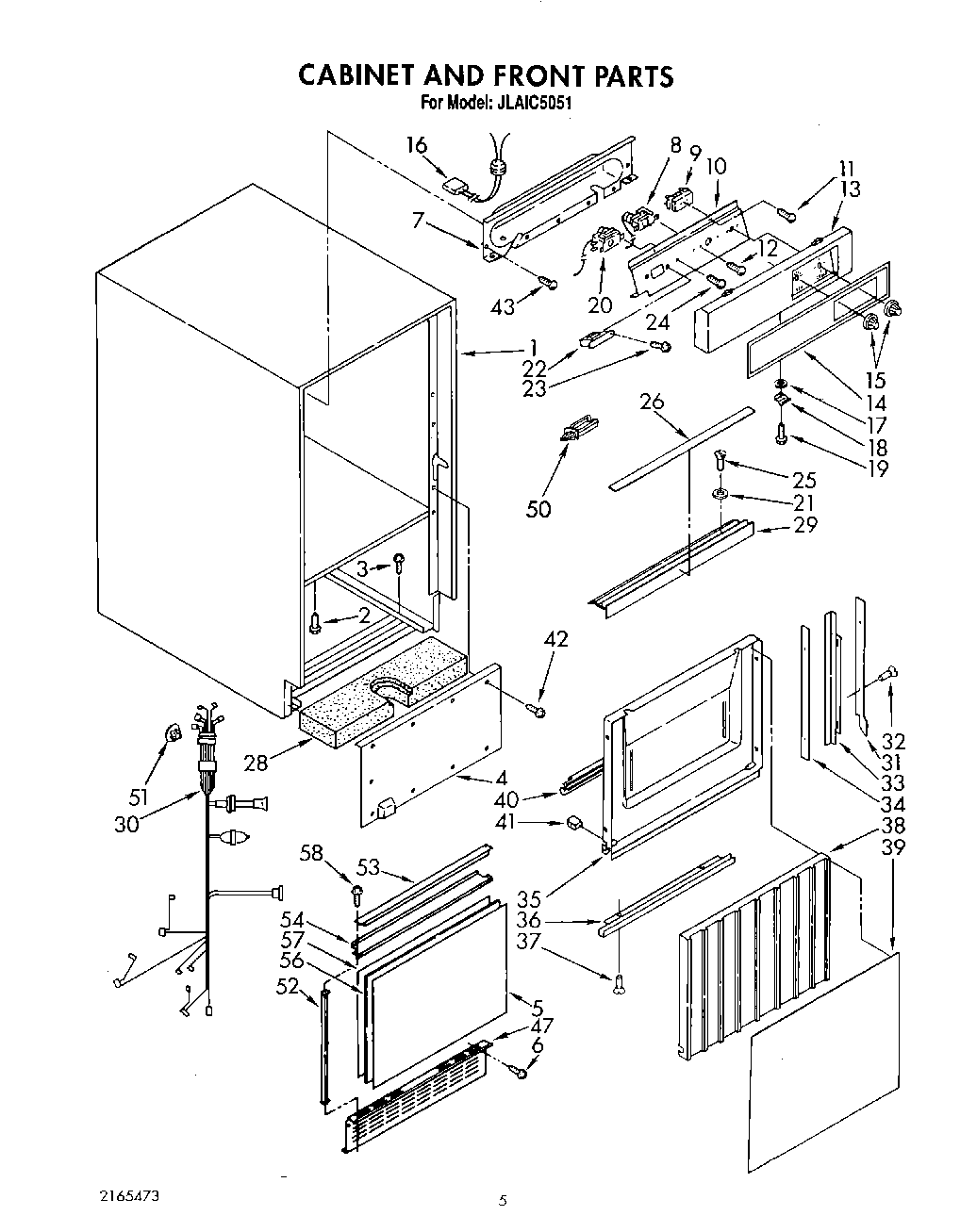

JLAIC5051 03 – CABINET AND FRONT

Products

Position	Product
1	WPL 756643
3	Screw, No.10-32 x 3/8
4	Support, Cabinet Front
5	Panel, Grille Cabinet Front
6	WP90767 Whirlpool Screw
7	Panel, Rear Escutcheon
8	Thermostat, Ice-Control
9	Switch, Rotary
10	Panel, Control
11	WP250830 Whirlpool Refrigerator Screw
12	WP486579 Whirlpool Air Conditioner Screw
13	WPL 593178
14	WPL 593555
15	WPL 756880
16	Harness, Wiring (Cutter Grid)
17	Washer, Latch
18	Latch, Door
19	Repair, Screw
20	Thermostat, Ice-Bin
21	Washer (2)
22	Transformer
24	Screw, 8-32 x 3/8 (2)
25	Screw, 10 x 1/2
26	WPL 593810
28	Insul/Bottom Foam
29	Pull, Door
30	WPL 758838
31	Rail, Door (Left Side)
31	Rail, Door (Right Side)
32	Screw, No.8-32 1/2 (6)
33	Trim, Door (R.S.)
33	Trim, Door (L.S.)
34	Strip, Tapping (2)
35	Liner, Door
36	Trim, Door (Lower)
37	Screw, No.8-32 x 1/2
38	WPL 758754
39	Panel, Door (White & Black)
40	Gasket, Door
41	Plug, Hinge
42	WP965173 Whirlpool Dishwasher Screw
43	SCREW
47	Grille, Panel
50	Retainer, Wire (2)
51	WPL 758564
52	Trim, Sides (2)
53	Trim, Top & Bottom
54	Support Panel
56	Filler, Grille Panel
57	Panel, Inner Grille
58	WP488729 Whirlpool Refrigerator Door Screw
