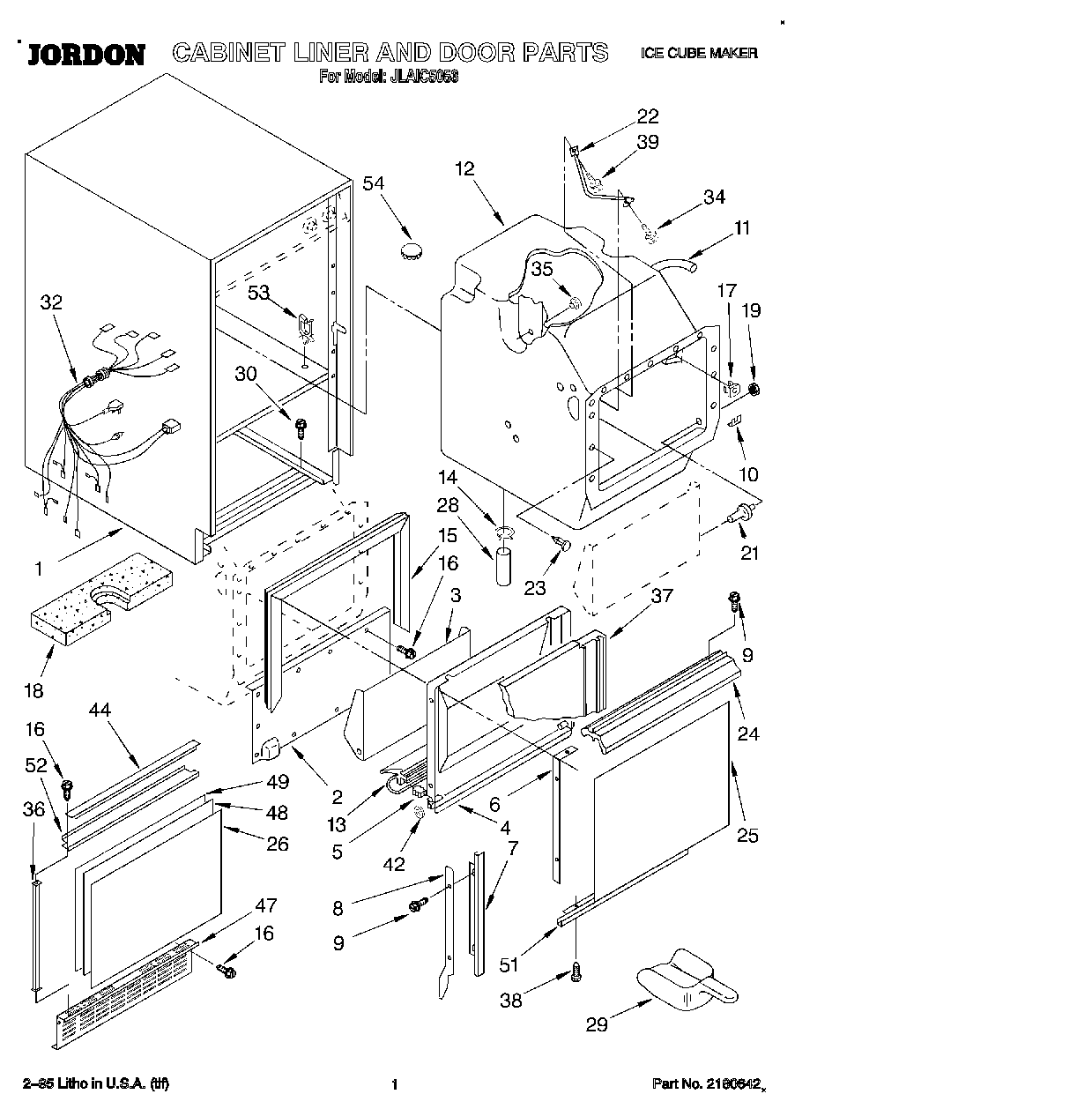

JLAIC5053 01 – CABINET LINER AND DOOR, LITERATURE

Products

Position	Product
	WPL LIT2174783
	WPL LIT2180616
	WPL LIT2180622
	WPL LIT2180635
	WPL LIT2180642
1	WPL 2180602
2	WPL 2175619
3	Door, Inner
4	Liner, Door
5	Plug, Hinge
6	Strip, Tapping (2)
7	Trim, Door (L.S.)
7	Trim, Door (R.S.)
8	Rail, Door (Right Side)
8	Rail, Door (Left Side)
9	Screw, No.8-32 1/2 (6)
10	Washer, Clip
11	WPL 759213
12	Liner (Includes No.s 5, 6, 7, 11, 14)
13	WPL 2172898
14	Clamp, Hose (2)
15	Gasket, Liner
16	WP488729 Whirlpool Refrigerator Door Screw
17	Grommet, Mtg (2)
18	Insul/Bottom Foam
19	Nut, Hex 1/4 (2)
21	Stud, Inner Door Mtg. (2)
22	Thermostat, Well Bin
23	Clip, Linner (12)
24	Pull, Door
25	Panel, Door (White & Black)
26	Panel, Grille Cabinet Front
28	Hose, 5/8 x 4“ (Connector To Air Gap)
29	W11420408 Whirlpool Refrigerator Ice Scoop
30	Screw, No.10-32 x 3/8
32	WPL 2174781
34	Thumbscrew 10-32 x 5/8
35	Nut, Well (3)
36	Trim, Sides (2)
37	WPL 758754
38	Screw, No.8-32 x 1/2
39	Screw, 10 x 1/2
42	Washer (2)
44	Trim, Top & Bottom
47	Grille, Panel
48	Filler, Grille Panel
49	Panel, Inner Grille
51	Trim, Door (Lower)
52	WPL 2175604
53	Retainer, Wire (2)
54	WP978025 Whirlpool Refrigerator Valve
54	212643 Whirlpool Refrigerator Permagum Sealer
54	876370 Whirlpool Refrigerator Insulation
54	WP503695 Whirlpool Refrigerator Sealer
54	978026 Whirlpool Refrigerator Primary Valve
54	WP505587 Whirlpool Refrigerator Sealer
54	978030 Whirlpool Refrigerator Valve
54	978027 Whirlpool Refrigerator Primary Valve
54	VALVE, ACCESS (5/8“)
54	WPL 799351
54	WPL 758564
54	VALVE, ACCESS (1/2“)
54	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
