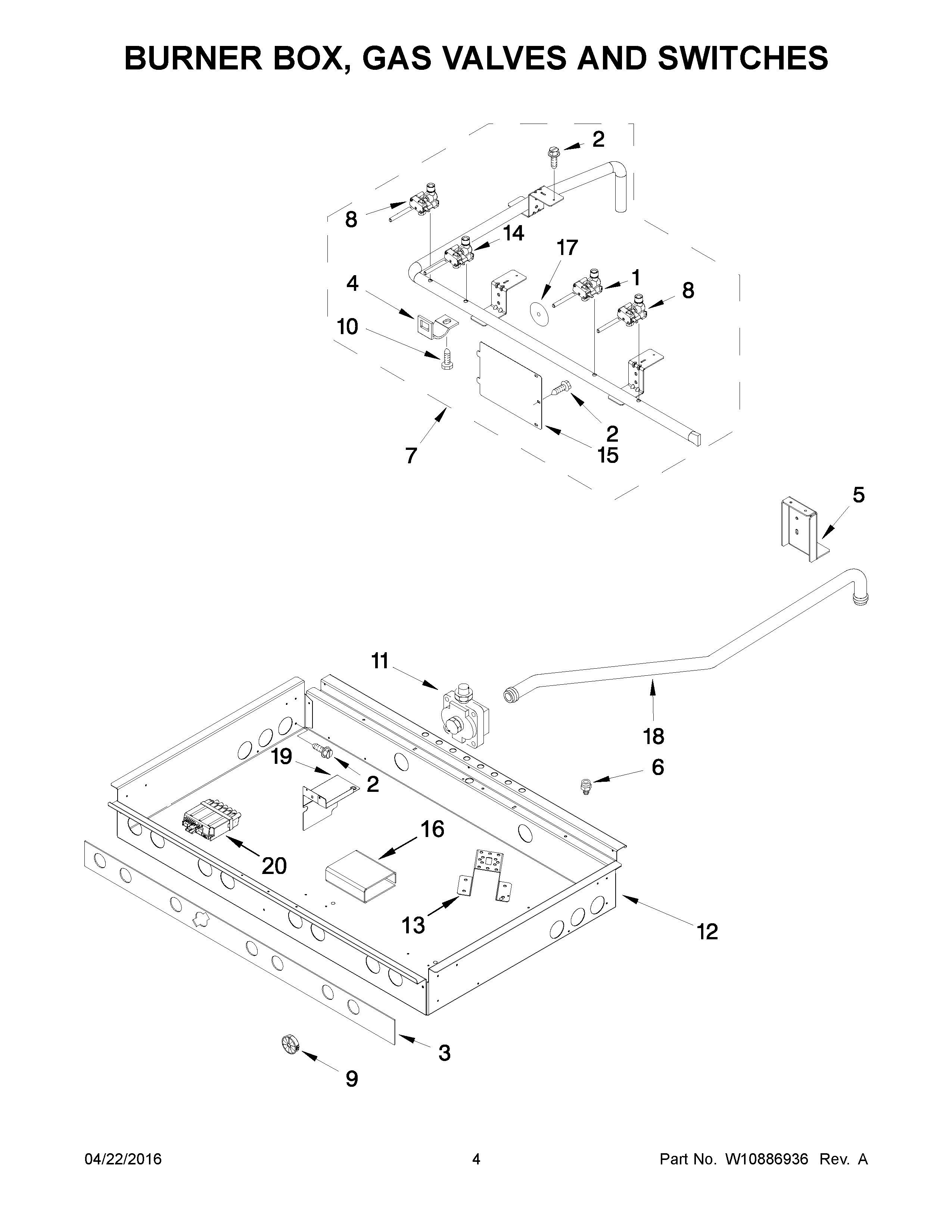

JLRP430WP00 03 – BURNER BOX, GAS VALVES AND SWITCHES

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NITUBING, GAS (LF-RIGHT)
NITUBING, GAS (LF-LEFT)
NITUBING, GAS (LR)
NIMAY W10276501
NIMAY W10368335
1VALVE, GAS (LF)
2MAY 7101P426- 60
3MAY W10276534
4BRACKET, VALVE
5MAY W10308042
6ADAPTER, FEMALE
7MAY W10815793
8VALVE, SINGLE (LEFT REAR, RIGHT REAR, CENTER FRONT)
9MAY W10189097
10SCREW, VALVE MTG
11MAY W10813917
13BRACKET, BURNER
14VALVE, SIMMER (CENTER REAR)
15MAY W10115843
16INSULATION, SPARK MODULE
17MAY W10189177
18MAY W10348600
19BRACKET, SPARK MODULE
20MODULE, SPARK
