JLRP430WP00 04 – CHASSIS PARTS
Written by
in

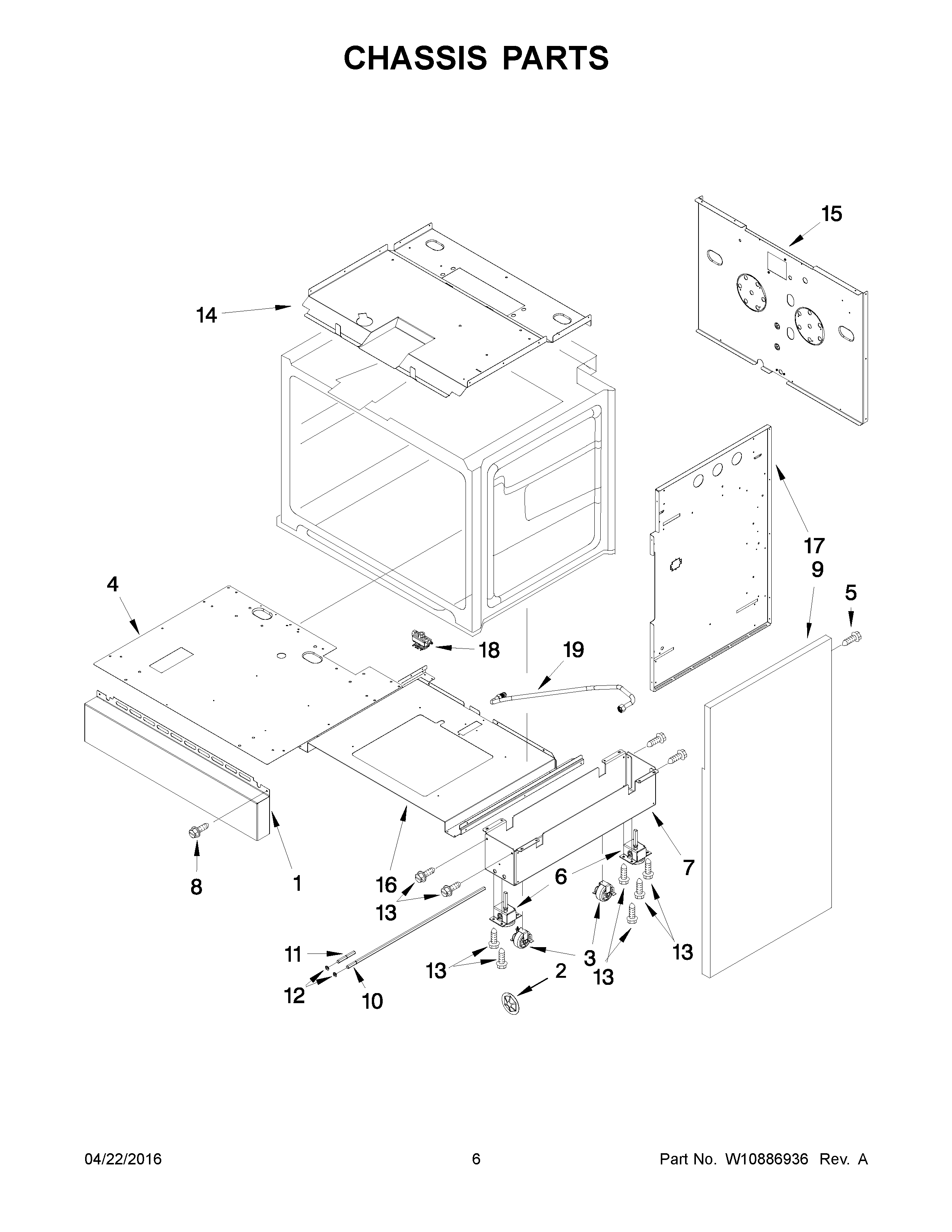

JLRP430WP00 04 – CHASSIS PARTS
Products
Position
Product
1
MAY W10145765
2
MAY 3400968
3
MAY W10138054
4
MAY W10145380
6
FOOT
7
BASE, LEVELING
8
Screw
9
SIDE PANEL (LEFT)
9A
SIDE PANEL (RIGHT)
10
MAY W10115869
11
MAY W10115793
12
RING
13
MAY W10292297
14
MAY W10145374
15
MAY W10145356
16
MAY W10145371
17
SIDE, CHASSIS (LEFT)
17A
SIDE, CHASSIS (RIGHT)
18
MAY W10145680
19
MAY W10145701
←
