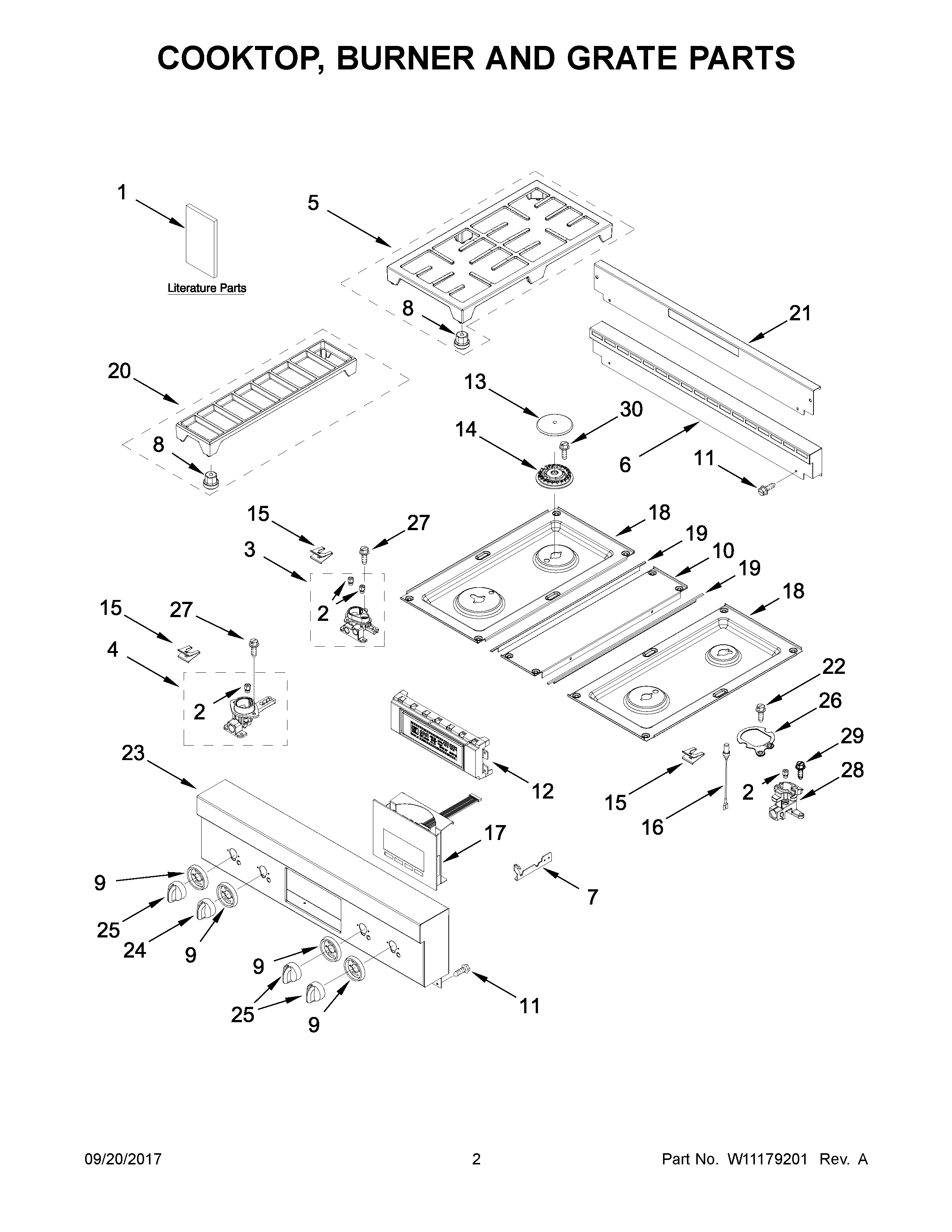

JLRP430WP01 02 – COOKTOP, BURNER AND GRATE PARTS

JLRP430WP01 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

JLRP430WP01 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NIBRACKET, ANTI-TIP
NIHARNESS, DOOR LOCK
NIMAY 4450800
NIMAY W10116168
NILINER (NOT A SERVICEABLE PART)
NICORD, POWER
NIMAY W10183556
NIMAY W10763500
NIMAY W10368807
NIMAY W10340850
NISCREW, ANTI-TIP KIT
NICLIP, HARNESS
NIMAY W10145988
NIMAY W10344051
1AGUIDE, USE & CARE
1INSTRUCTIONS, INSTALLATION
1BMAY W10403308
1CMAY W10403309
2BORIFICE (11K) (LEFT REAR, RIGHT REAR, CENTER FRONT)
2ORIFICE (HIGH) (LEFT FRONT & RIGHT FRONT)
2AORIFICE (LOW) (LEFT FRONT & RIGHT FRONT)
2CORIFICE (3K) (CENTER REAR)
3MAY W10905356
4MAY W10905358
5MAY W10276551
6MAY W10323247
7BRACKET,CONSOLE (LEFT)
7ABRACKET,CONSOLE (RIGHT)
8RUBBER, FOOT
9MAY W10276494
10MAY W10189105
11SCREW (8BX3/8-NI)
12ASSEMBLY, KEYPAD
13BMAY W10364463
13AMAY W10256032
13MAY W10256034
14BBURNER HEAD (RR)
14MAY W10879806
14ABURNER, HEAD (LR,RF)
15SPRING, ELECTRODE
15ASPRING, ELECTRODE (RR)
16ELECTRODE, WIRE
17ASSEMBLY, POWER SUPPLY
18AMAY W10352969
18MAY W10352968
19TRIM, T-STRIP
20MAY W10276495
21MAY W10323248
22MAY 3196160
23PANEL, CONTROL
24KNOB, CONTROL LF
25KNOB, CONTROL (LR, RF) LR, RF
26MAY 8286930
27SCREW (ALL BUT CENTER REAR)
28ASSEMBLY, ORIFICE HOLDER (CENTER REAR)
29MAY 8286921
30SCREW
