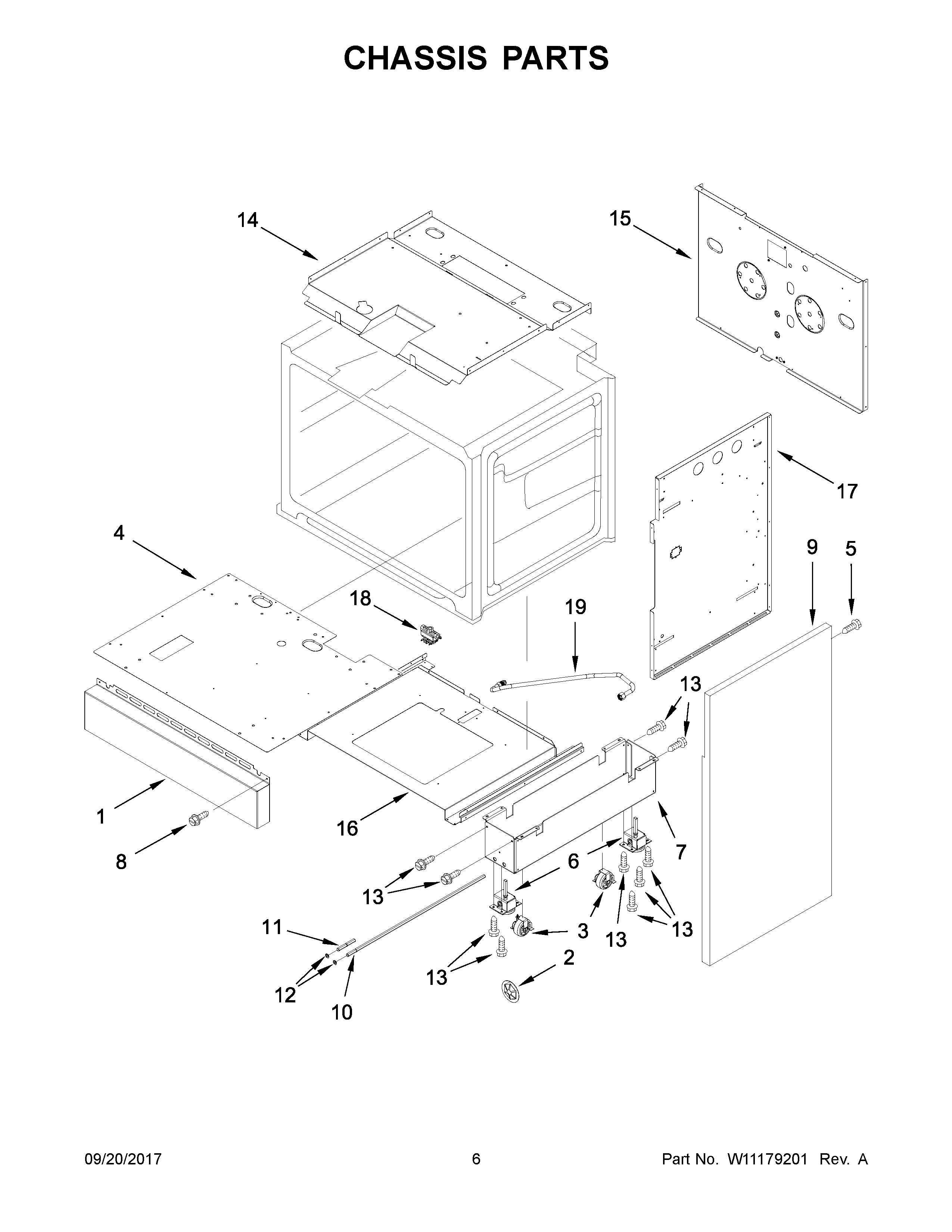

JLRP430WP01 04 – CHASSIS PARTS

JLRP430WP01 04 – CHASSIS PARTS

Written by

in

JLRP430WP01 04 – CHASSIS PARTS

Products

Position	Product
1	MAY W10145765
2	MAY 3400968
3	MAY W10138054
4	MAY W10145380
6	FOOT
7	BASE, LEVELING
8	Screw
9A	SIDE PANEL (RIGHT)
9	SIDE PANEL (LEFT)
10	MAY W10115869
11	MAY W10115793
12	RING
13	MAY 4449743
14	MAY W10145374
15	MAY W10145356
16	MAY W10145371
17	SIDE, CHASSIS (LEFT)
17A	SIDE, CHASSIS (RIGHT)
18	MAY W10145680
19	MAY W10145701
