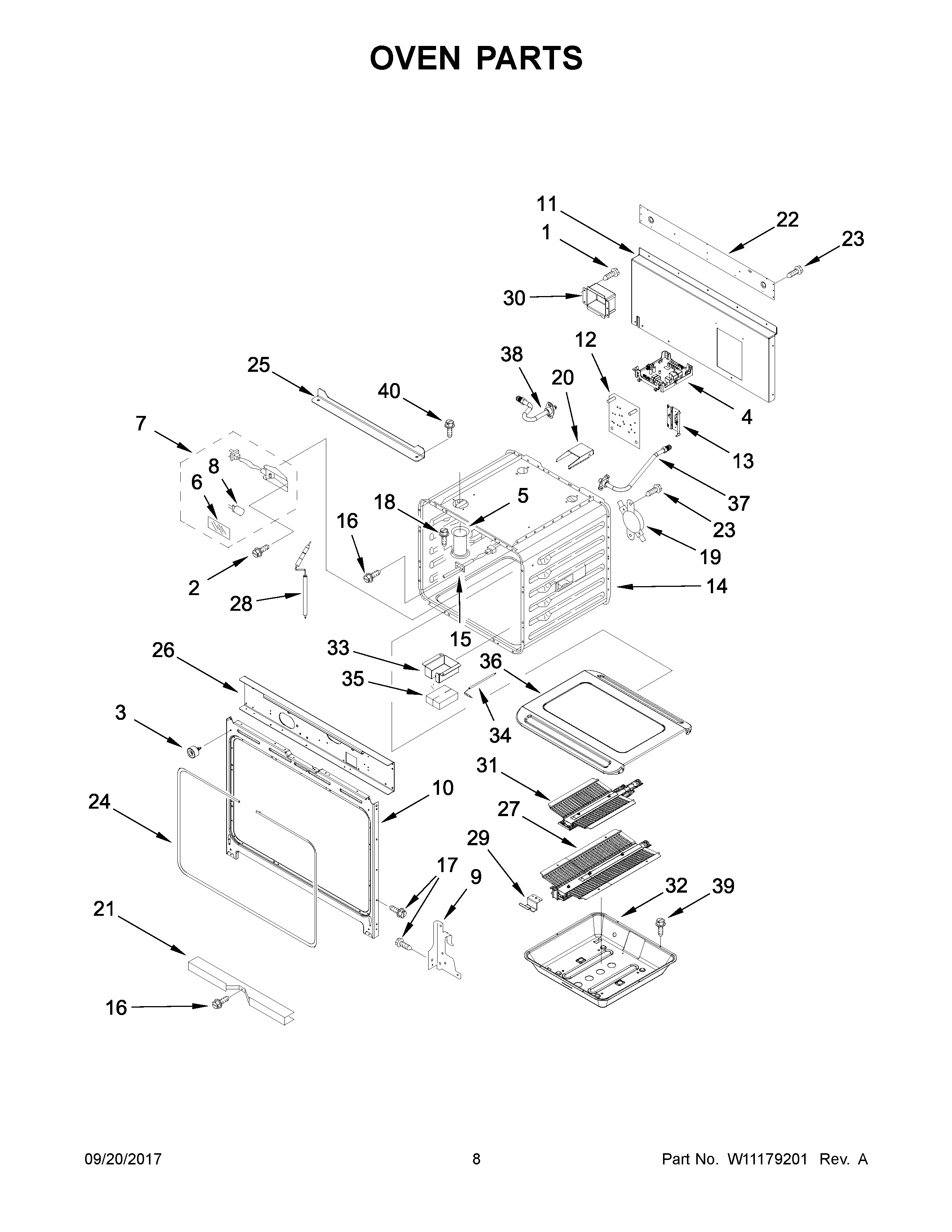

JLRP430WP01 05 – OVEN PARTS

Products

Position	Product
NI	MAY W10299354
NI	MAY W10299350
NI	INSULATION, WRAP, 30“
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10292297
2	MAY 4449748
3	ASSEMBLY, BUMPER
4	MANAGER, APPLIANCE
5	MAY W10145743
6	LENS
7	OVEN LIGHT ASSY
8	BULB, OVEN
9	MAY 4455605
9A	MAY 4455606
10	MAY W10115831
11	MAY W10145392
12	MAY W10511278
13	MAY W10145362
15	MAY W10131825
16	MAY 4449154
17	MAY 4449040
18	Screw
19	THERMOSTAT
20	DRAWER
21	MAY W10157511
22	MAY W10321813
23	MAY 7101P426- 60
24	GASKET, OVEN (30")
25	MAY W10317437
26	MAY W10145377
27	MAY W10311335
28	MAY W10332287
29	MAY W10308040
30	MAY W10308051
31	BURNER, BAKE
32	SUPPORT, BAKE PAN
33	MAY W10310985
34	MAY W10878506
35	MAY W10311009
36	BOTTOM, OVEN GAS
37	MAY W10813915
38	MAY W10813909
39	WP12992902 Whirlpool Refrigerator Screw
40	MAY 7101P434-60
