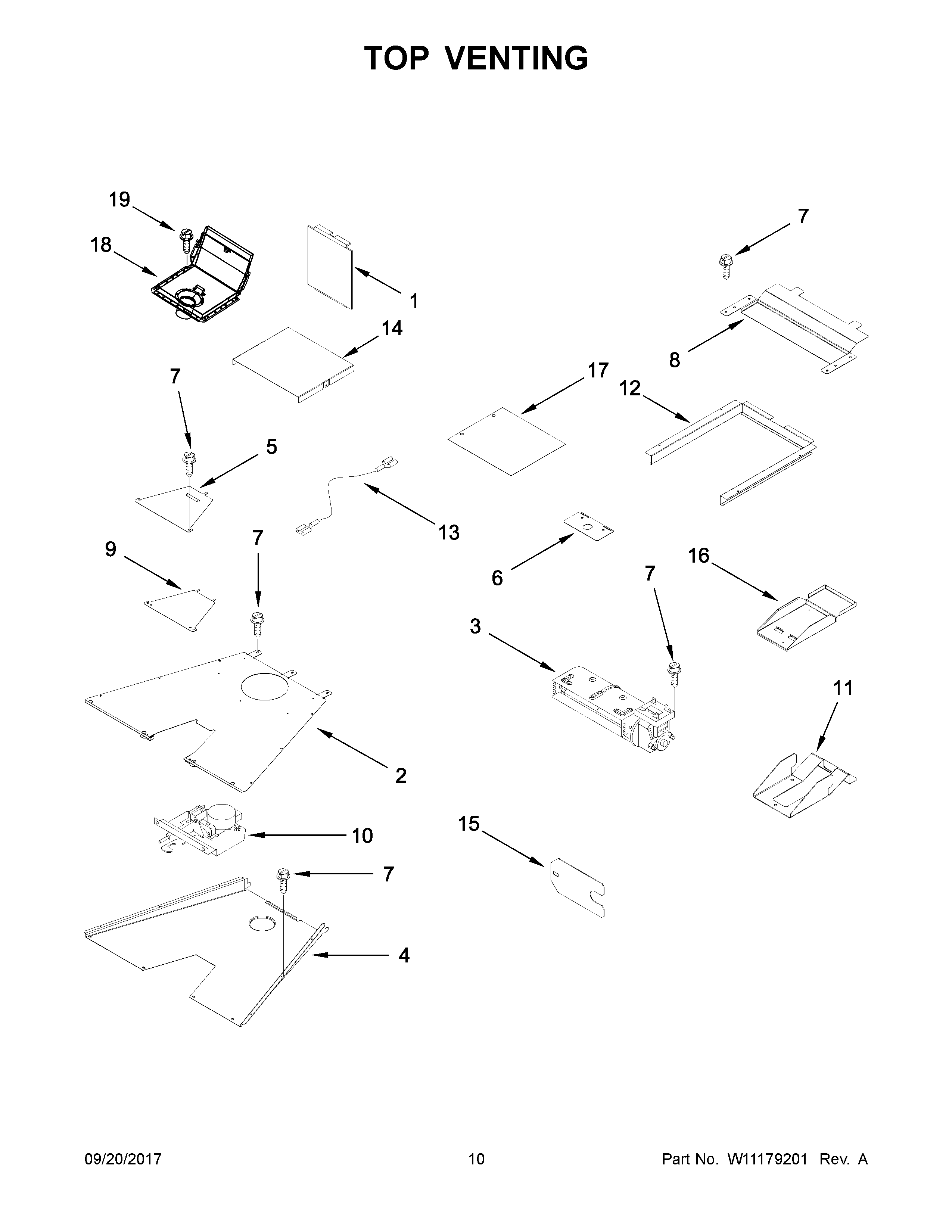

JLRP430WP01 06 – TOP VENTING

Products

Position	Product
1	MAY W10246087
2	MAY W10299182
3	BLOWER
4	MAY W10349015
5	PLATE, LATCH
6	MAY W10115855
7	MAY 7101P426- 60
8	MAY W10145748
9	MAY W10160858
10	LATCH, MOTORIZED
11	MAY W10308039
12	MAY W10145363
13	MAY W10830796
14	MAY W10246086
15	MAY W10145381
16	SUPPORT, CONTROL
17	SEAL
18	MAY W10340579
19	MAY 3400805
