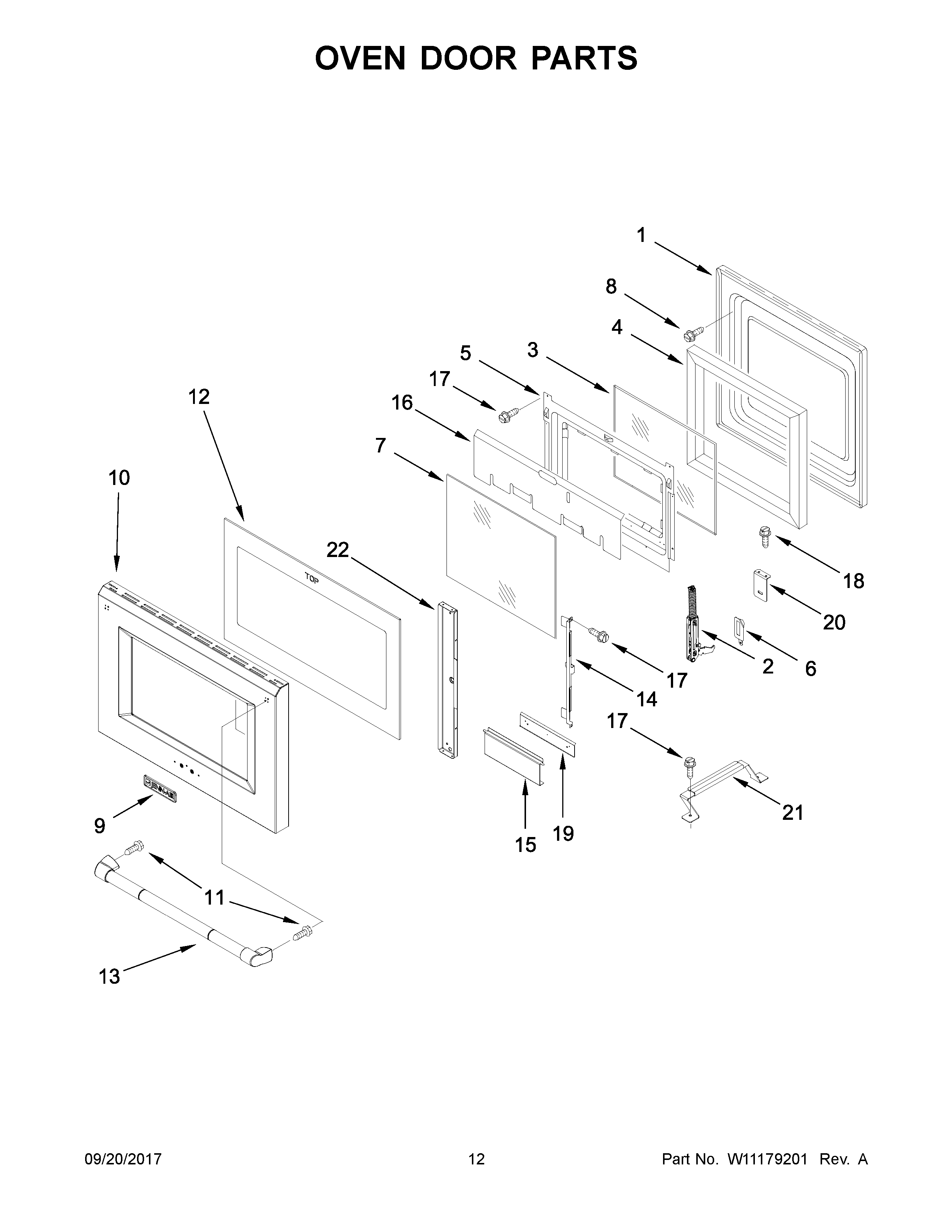

JLRP430WP01 07 – OVEN DOOR PARTS

Products

PositionProduct
1MAY 9759413
2AHINGE, DOOR (RIGHT)
2HINGE, DOOR (LEFT)
3MAY 4449259
4MAY 4451722
5MAY 4457132
6MAY W10115876
6AMAY W10115877
7MAY 9759225
8MAY W10292297
9MAY W10159578
10MAY W10145759
11SCREW, HANDLE
12MAY W10145850
13MAY 7701P475-60
14MAY 9759229
15BRACKET, CENTER OUTER GLASS
16SHIELD, HEAT TOP
17Screw
18MAY 7101P426- 60
19SHIELD, HEAT BOTTOM
20MAY W10115715
21MAY 9759230
22BRACKET, SIDE
