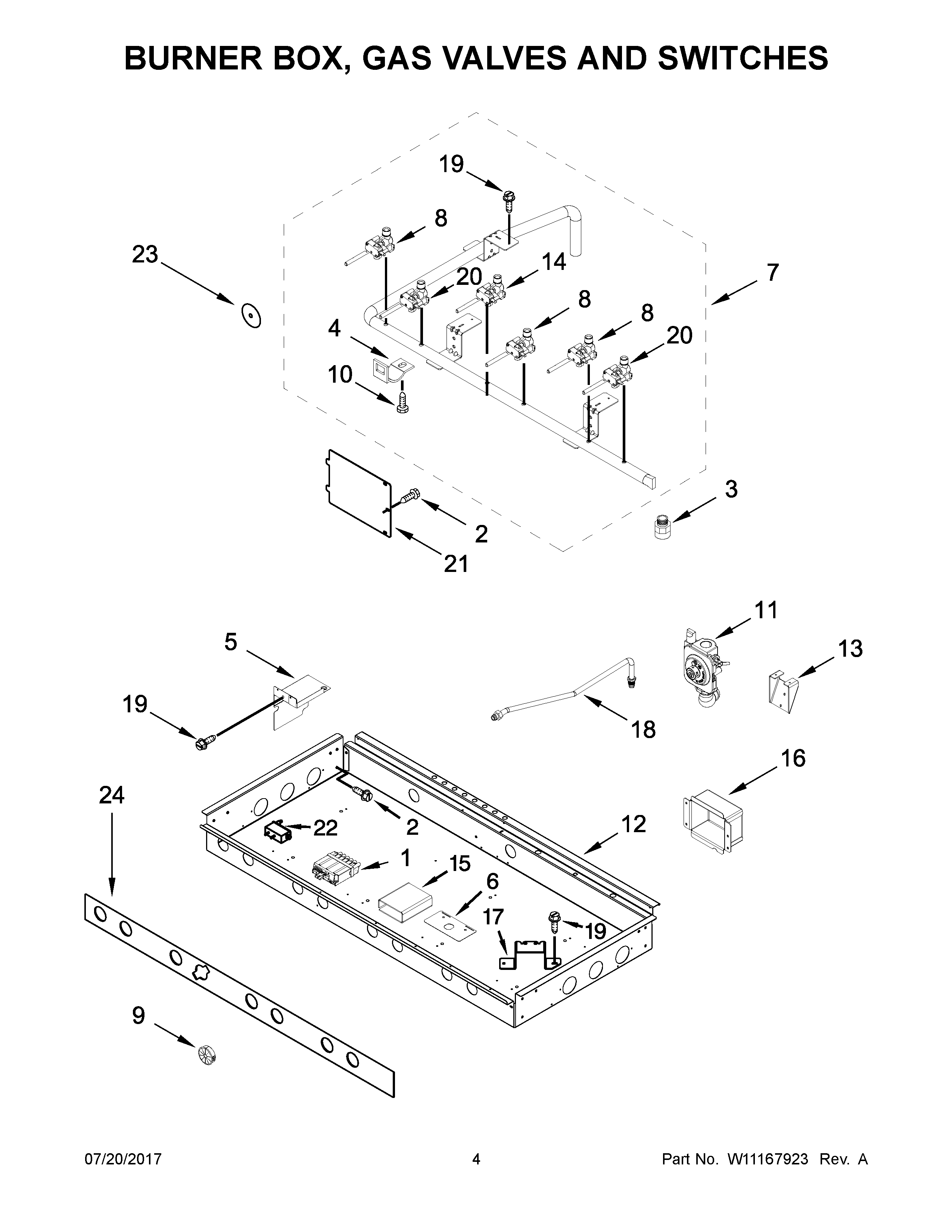

JLRP436WP01 03 – BURNER BOX, GAS VALVES AND SWITCHES

Products

PositionProduct
NITUBE (RIGHT FRONT, HIGH)
NILINER (NOT A SERVICEABLE PART)
NIMAY W10145488
NITUBE (CENTER FRONT)
NITUBE, FRT LFT
NITUBING, GAS (LF-RIGHT)
NITUBING, GAS (LF-LEFT)
NITUBING, GAS (LR)
NITUBE (RIGHT REAR)
1MODULE, SPARK
3ADAPTER, FEMALE
4BRACKET, VALVE
5BRACKET, SPARK MODULE
6MAY W10115855
7MAY W10815791
8VALVE, SINGLE (LEFT REAR, RIGHT REAR, CENTER FRONT)
9MAY W10189097
10SCREW, VALVE MTG
11MAY W10813917
12MAY W10371520
13MAY W10308042
14VALVE, SIMMER (CENTER REAR)
15INSULATION, SPARK MODULE
16MAY W10308051
17BRACKET, BURNER
18MAY W10348600
19MAY 7101P426- 60
20VALVE, GAS (LF)
21MAY W10115843
22REIGNITOR
23MAY W10189177
24MAY W10145622
