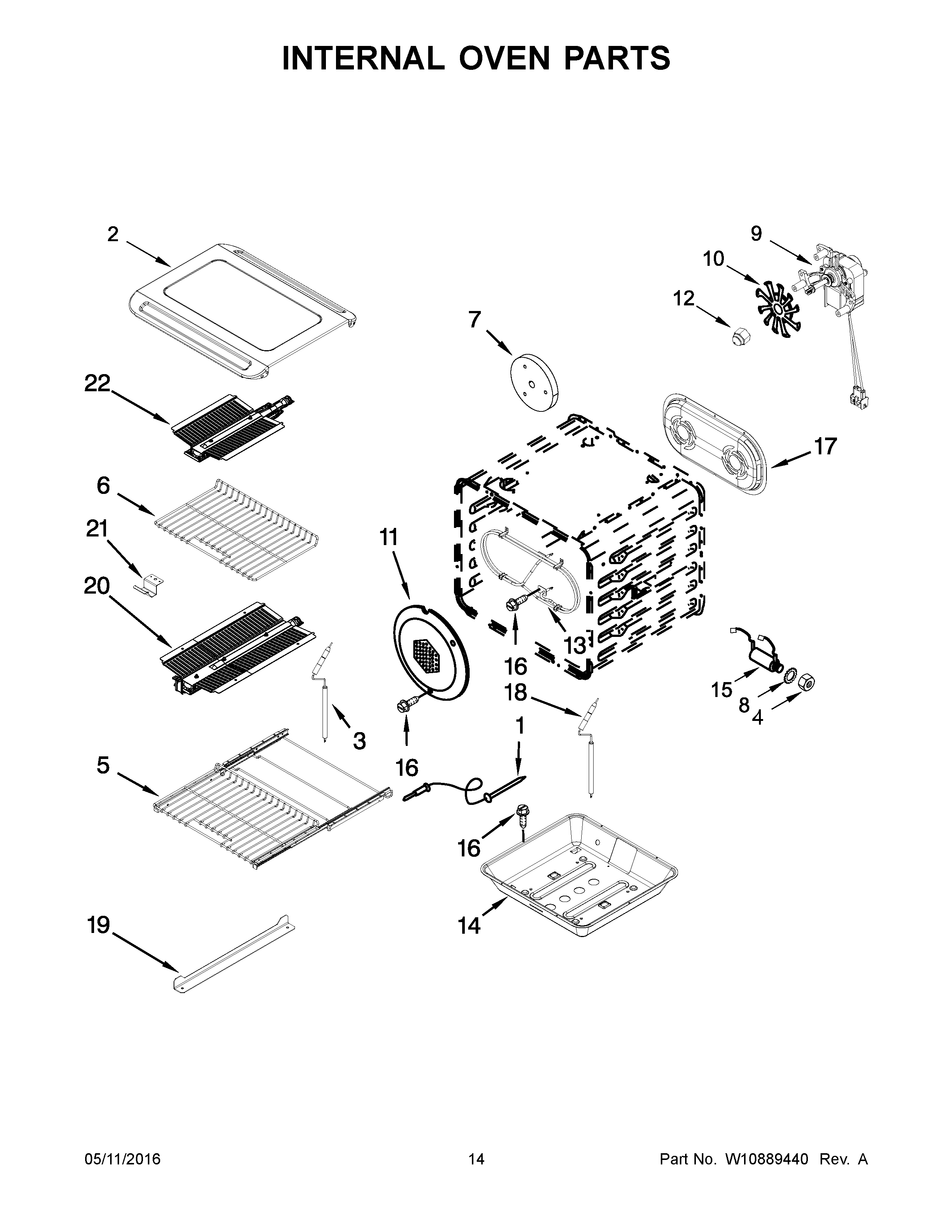

JLRP536WP00 08 – INTERNAL OVEN PARTS

JLRP536WP00 08 – INTERNAL OVEN PARTS

Written by

in

JLRP536WP00 08 – INTERNAL OVEN PARTS

Products

Position	Product
1	PROBE-MEAT
2	BOTTOM, OVEN GAS
3	MAY W10332287
4	LOCKNUT
5	RACK, OVEN (SLIDING)
6	MAY W10570880
7	MAY W10282821
8	WASHER
9	MOTOR, CONVECTION
10	MAY W10631503
11	COVER, FAN
12	MAY W10631504
13	MAY W10145949
14	SUPPORT, BAKE PAN
15	MAY 9755543
16	MAY 4449154
17	MAY W10246060
18	MAY W10332290
19	MAY W10317437
20	MAY W10311335
21	MAY W10308040
22	MAY W10311409
