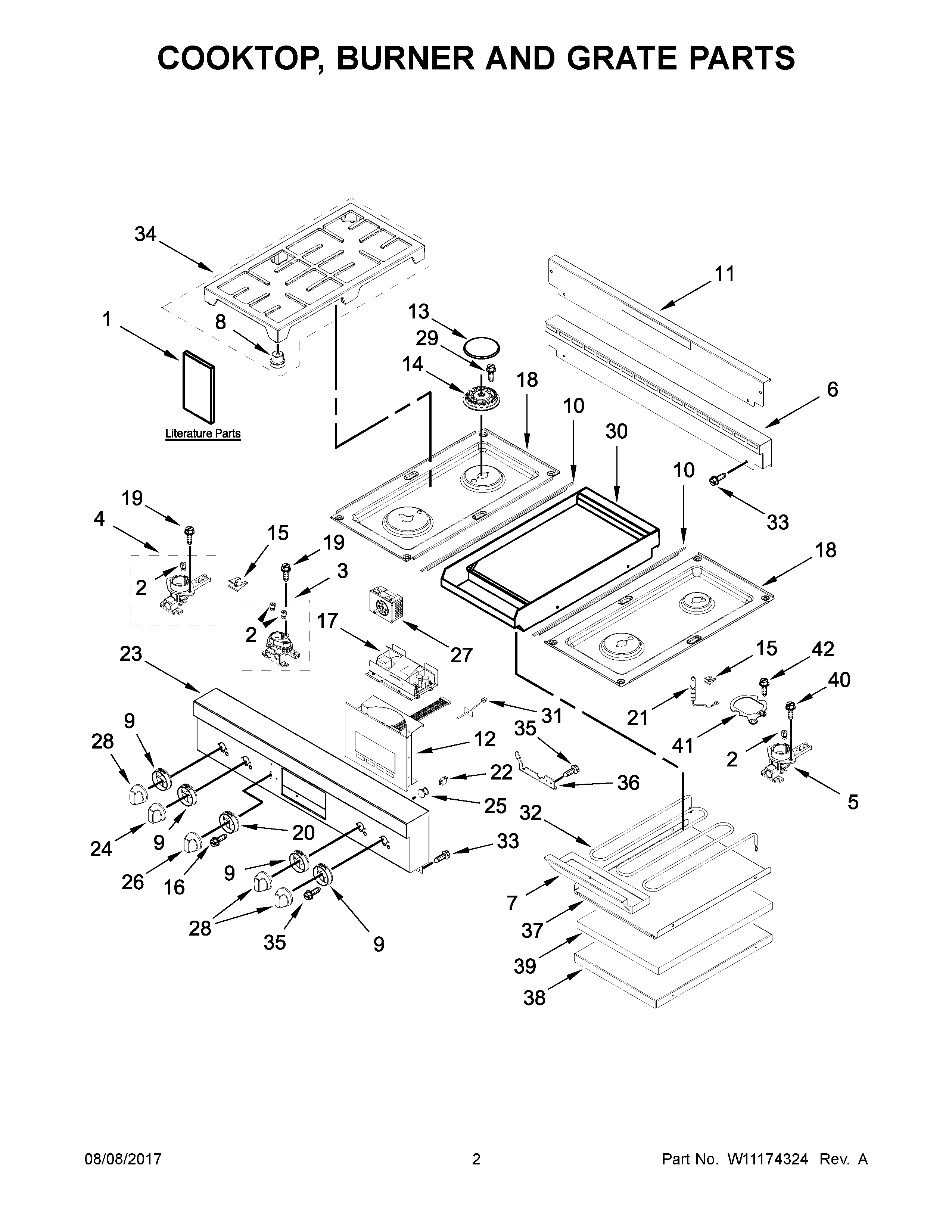

JLRP536WP01 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	MAY W10145988
NI	MAY 4450800
NI	MAY W10763501
NI	MAY W10830796
NI	HARNESS, DOOR LOCK
NI	MAY W10183556
NI	CORD, POWER
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10116146
NI	MAY W10340850
NI	MAY W10368807
NI	MAY W10116168
NI	MAY W10830797
NI	MAY W10344051
NI	BRACKET, ANTI-TIP
NI	SCREW, ANTI-TIP KIT
NI	CLIP, HARNESS
1B	MAY W10403308
1C	MAY W10403309
1A	INSTRUCTIONS, INSTALLATION
1	GUIDE, USE & CARE
2A	ORIFICE (LOW) (LEFT FRONT & RIGHT FRONT)
2	ORIFICE (HIGH) (LEFT FRONT & RIGHT FRONT)
2C	ORIFICE (3K) (CENTER REAR)
2B	ORIFICE (11K) (LEFT REAR, RIGHT REAR, CENTER FRONT)
3	MAY W10905356
4	MAY W10905358
5	ASSEMBLY, ORIFICE HOLDER (CENTER REAR)
6	MAY W10323249
7	DRIP, TRAY GRIDDLE
8	BUMPER, GRATE
9	MAY W10276494
10	L-STRIP
11	MAY W10323250
12	ASSEMBLY, KEYPAD
13	MAY W10256034
13A	MAY W10256032
13B	MAY W10364463
14A	BURNER, HEAD (LR,RF)
14B	BURNER HEAD (RR)
14	MAY W10879806
15	SPRING, ELECTRODE
15A	SPRING, ELECTRODE (RR)
16	SCREW
17	ASSEMBLY, POWER SUPPLY
18A	MAY W10352968
18	MAY W10352969
19	SCREW (ALL BUT CENTER REAR)
20	MAY W10145453
21	ELECTRODE, WIRE
22	LIGHT, INDICATOR HOUSING
23	PANEL, CONTROL
24	KNOB, CONTROL LF
25	MAY W10294500
26	MAY W10145566
27	MAY W10116113
28	KNOB, CONTROL (LR, RF) LR, RF
29	SCREW
30	MODULE, GRIDDLE
31	MAY W10319835
32	ELEMENT, GRIDDLE
33	SCREW (8BX3/8-NI)
34	MAY W10276551
35	MAY 7101P500-60
36A	BRACKET,CONSOLE (RIGHT)
36	BRACKET,CONSOLE (LEFT)
37	MAY W10145620
38	MAY W10246074
39	MAY W10145621
40	MAY 8286921
41	MAY 8286930
42	MAY 3196160
