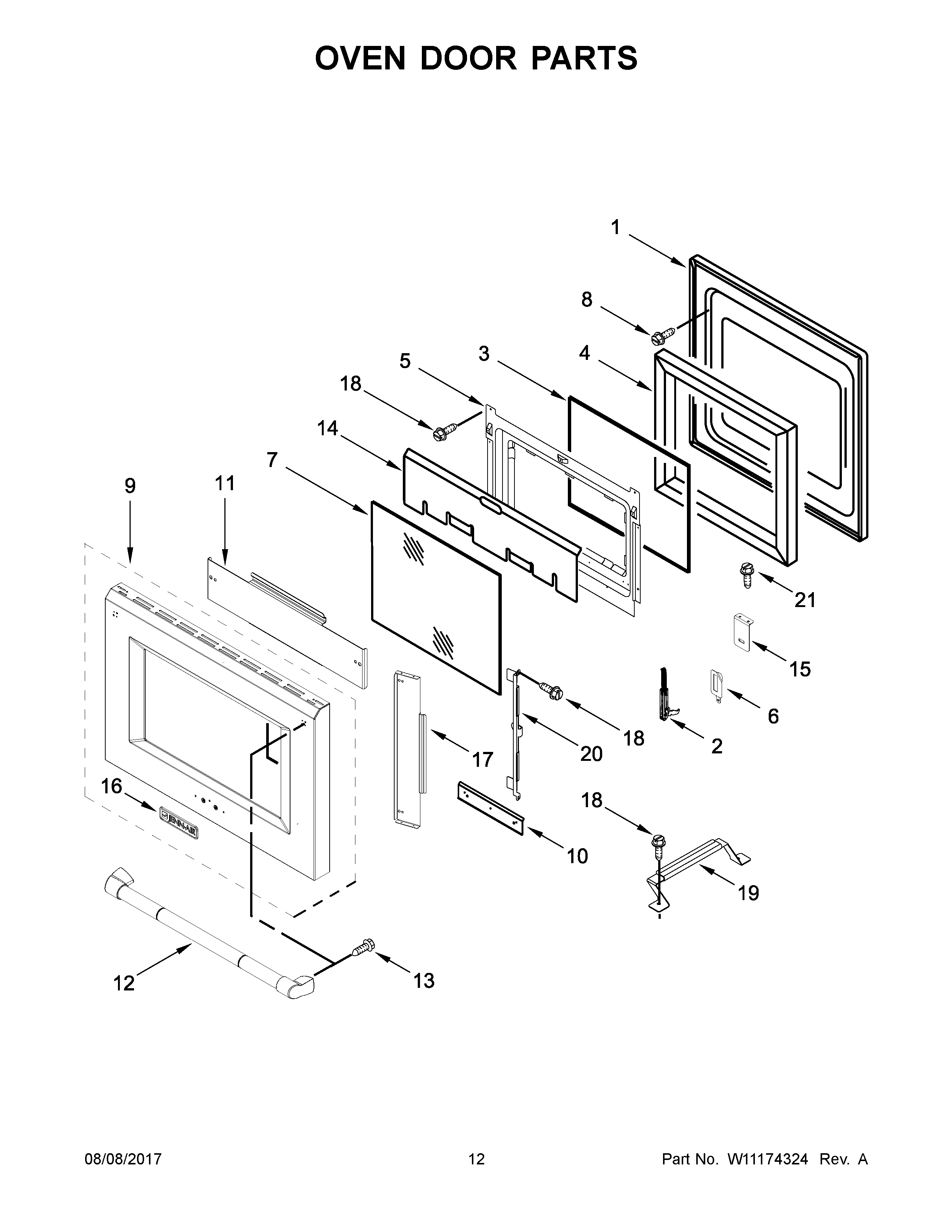

JLRP536WP01 07 – OVEN DOOR PARTS

Products

Position	Product
1	MAY W10188330
2	HINGE, DOOR (LEFT)
2A	HINGE, DOOR (RIGHT)
3	MAY W10226005
4	MAY W10115765
5	MAY W10188324
6A	MAY W10115877
6	MAY W10115876
7	MAY W10188327
8	MAY W10292297
9	PANEL, EXTERIOR
10	MAY W10226024
11	MAY W10145764
12	MAY W10145770
13	SCREW, HANDLE
14	MAY W10188328
15	MAY W10115715
16	MAY W10159578
17	BRACKET, SIDE
18	Screw
19	MAY 9759230
20	MAY 9759229
21	MAY 7101P426- 60
