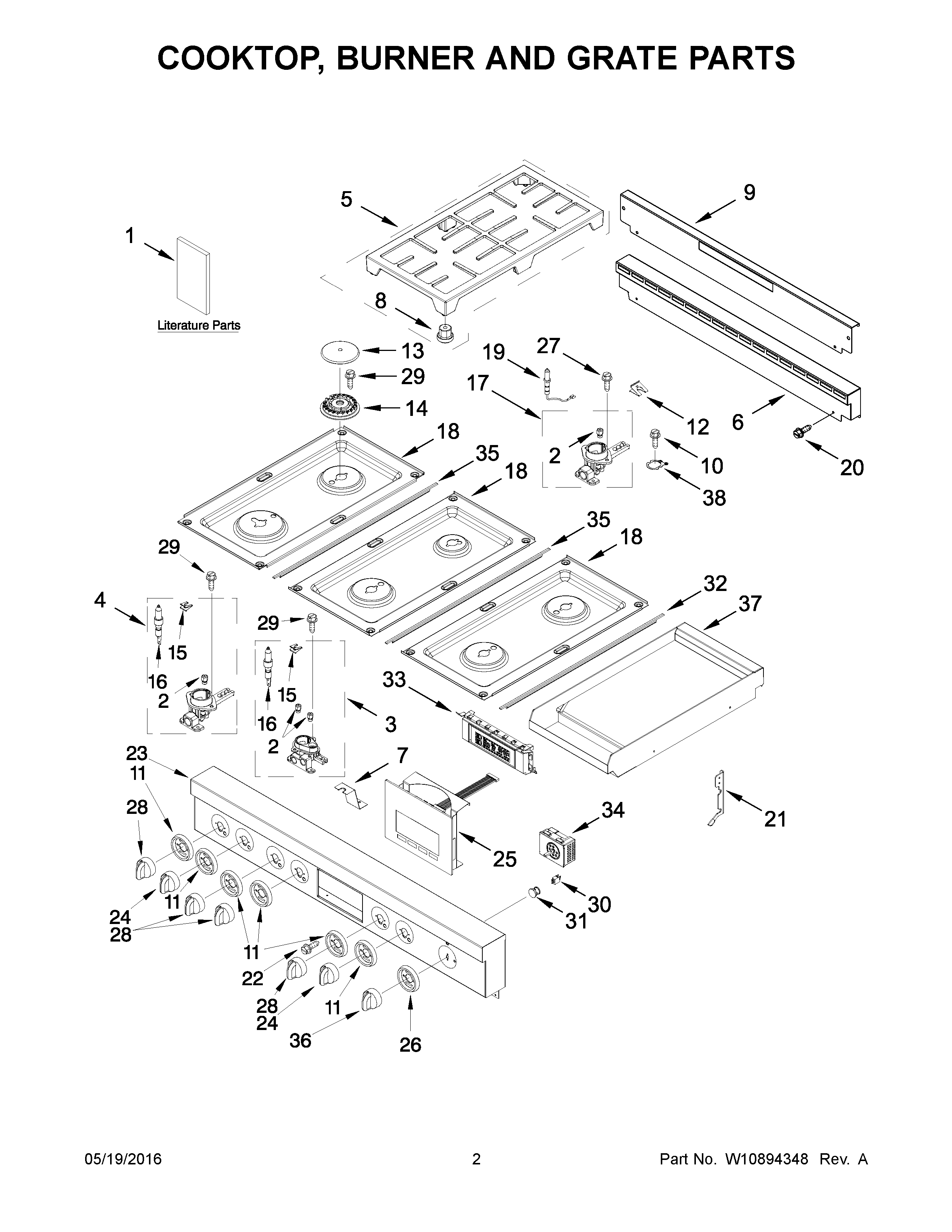

JLRP548WP00 02 – COOKTOP, BURNER AND GRATE PARTS

JLRP548WP00 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

JLRP548WP00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NIMAY W10344051
NIMAY W10146037
NIMAY W10399611
NIHARNESS, DOOR LOCK
NIMAY 4450800
NIMAY W10116169
NIMAY W10116146
NILINER (NOT A SERVICEABLE PART)
NICORD, POWER
NIMAY W10183556
NIMAY W10146036
NIMAY W10323791
NIMAY W10340850
NIMAY W10368807
NIMAY W10507832
NISCREW, ANTI-TIP KIT
NIBRACKET, ANTI-TIP
NICLIP, HARNESS
1DTIPS, SAFE COOKING (ENGLISH)
1ETIPS, SAFE COOKING (FRENCH)
1BMAY W10403310
1CMAY W10403311
1AGUIDE, USE & CARE
1INSTRUCTIONS, INSTALLATION
2ORIFICE (HIGH) (LEFT FRONT & RIGHT FRONT)
2AORIFICE (LOW) (LEFT FRONT & RIGHT FRONT)
2CORIFICE (3K) (CENTER REAR)
2BORIFICE (11K) (LEFT REAR, RIGHT REAR, CENTER FRONT)
3ASSEMBLY, ORIFICE HOLDER (LEFT FRONT & RIGHT FRONT)
4ASSEMBLY, ORIFICE HOLDER (LEFT REAR, RIGHT REAR, CENTER FRONT)
5MAY W10276551
6MAY W10323251
7MAY 3801F946-51
8PAD, GRATE
9MAY W10323252
10MAY 3196160
11MAY W10276494
12SPRING, ELECTRODE (RR)
13BMAY W10364463
13AMAY W10256032
13MAY W10256034
14BBURNER HEAD (RR)
14ABURNER, HEAD (LR,RF)
14SPREADER, FLAME (20K) (LEFT FRONT AND RIGHT FRONT)
15MAY W10256046
16ELECTRODE (LR, RF & RR)
17ASSEMBLY, ORIFICE HOLDER (CENTER REAR)
18AMAY W10352963
18BCOOKTOP (BLACK (CENTER))
18MAY W10352969
19ELECTRODE, BURNER
20SCREW (8BX3/8-NI)
21ABRACKET,CONSOLE (RIGHT)
21BRACKET,CONSOLE (LEFT)
22MAY 7101P500-60
23MAY W10789955
24KNOB, CONTROL LF
25MAY W10464534
26MAY W10145453
27MAY 8286921
28KNOB, CONTROL (LR, RF) LR, RF
29SCREW (ALL BUT CENTER REAR)
30LIGHT, INDICATOR HOUSING
31MAY W10294500
32L-STRIP
33ASSEMBLY, POWER SUPPLY
34MAY W10116113
35TRIM, T-STRIP
36MAY W10145566
37MODULE, GRIDDLE
38MAY 8286930
