JLRP548WP00 04 – 48″ CHASSIS PARTS – Aparts

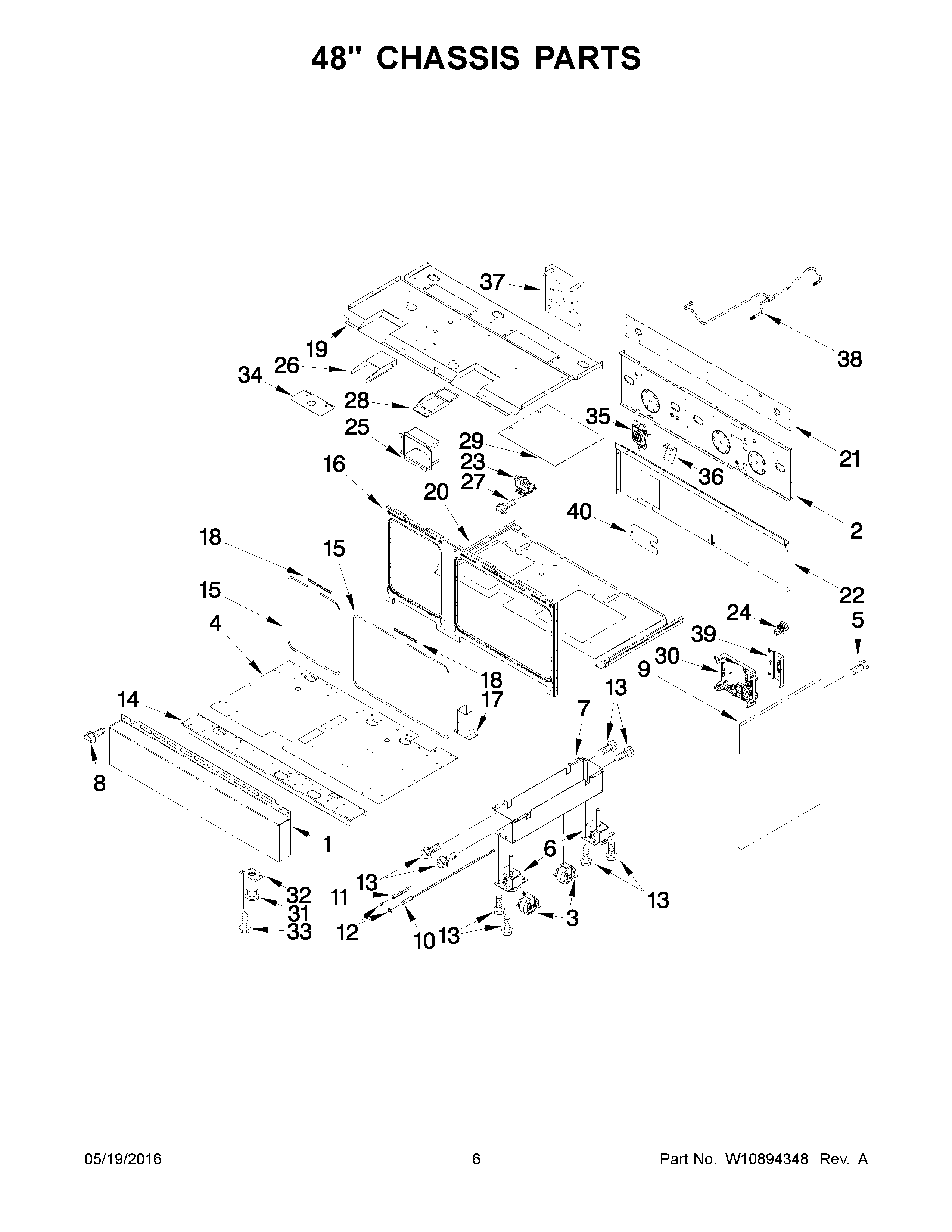

JLRP548WP00 04 – 48″ CHASSIS PARTS

Products

Position	Product
1	KICKPLATE
2	MAY W10145354
3	MAY W10138054
4	DUCT, BOTTOM (48")
6	FOOT
7	BASE, LEVELING
8	Screw
9A	MAY W10250466
9	MAY W10250467
10	MAY W10115869
11	MAY W10115793
12	RING
13	MAY W10292297
14	MAY W10145375
15A	GASKET, OVEN (18")
15	GASKET, OVEN (30")
16	MAY W10160895
17	MAY W10115819
18A	MAY W10216520
18	MAY W10157511
19	MAY W10145372
20	MAY W10145369
21	MAY W10321816
22	MAY W10145390
23	MAY W10145680
24	MAY W10311268
25	MAY W10308051
26	DRAWER
27	MAY 7101P426- 60
28	SUPPORT
29	SEAL
30	MANAGER, APPLIANCE
31	MAY 9759117
32	PLATE, MOUNTING FOOT
33	MAY 3400518
34	MAY W10115855
35	MAY W10813917
36	MAY W10308042
37	MAY W10511278
38	MAY W10145704
39	MAY W10145362
40	MAY W10145381
