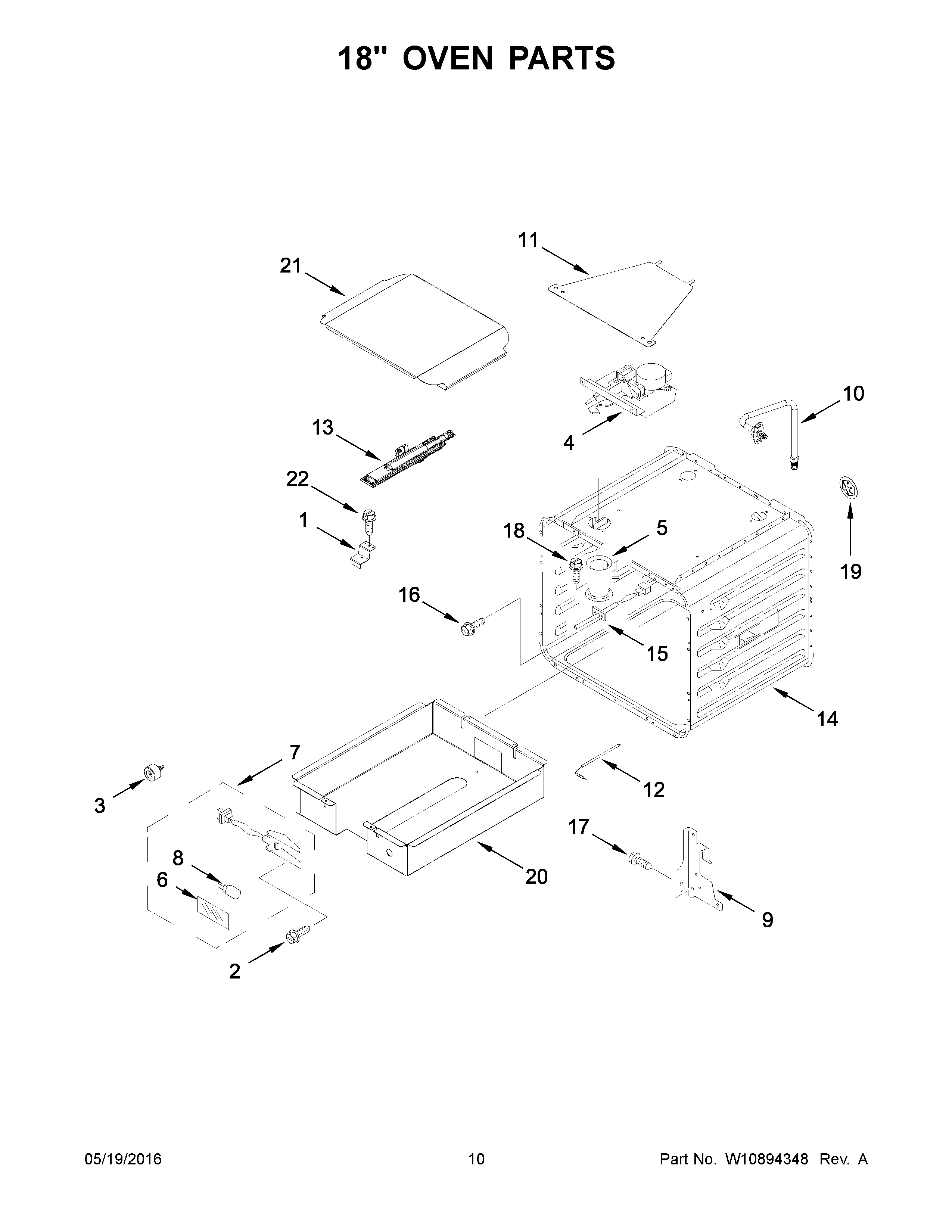

JLRP548WP00 06 – 18″ OVEN PARTS

JLRP548WP00 06 – 18″ OVEN PARTS

Written by

in

JLRP548WP00 06 – 18″ OVEN PARTS

Products

Position	Product
NI	MAY W10299353
NI	MAY W10282820
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10299355
1	MAY W10308041
2	MAY 4449748
3	ASSEMBLY, BUMPER
4	MAY W10195935
5	MAY W10145743
6	LENS
7	OVEN LIGHT ASSY
8	BULB, OVEN
9A	MAY 4455606
9	MAY 4455605
10	TUBE, BAKE (LEFT)
11	MAY W10160858
12	MAY W10332290
13	MAY W10337289
15	MAY W10131825
16	MAY 4449154
17	MAY 4449040
18	Screw
19	MAY 3400968
20	MAY W10145651
21	MAY W10246100
22	MAY 7101P426- 60
