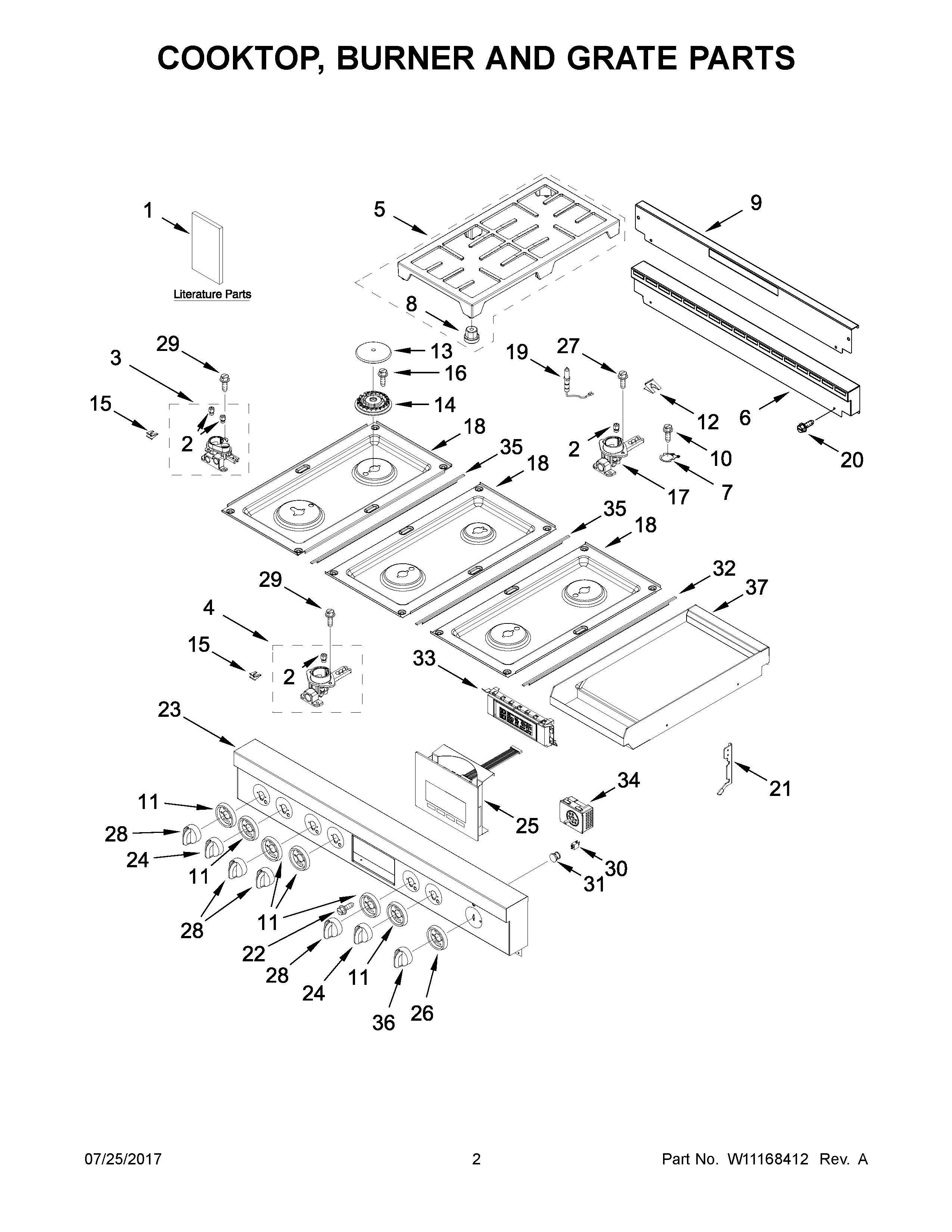

JLRP548WP01 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	BRACKET, ANTI-TIP
NI	MAY W10399611
NI	HARNESS, DOOR LOCK
NI	MAY W10116169
NI	MAY W10116146
NI	MAY 4450800
NI	MAY W10763503
NI	MAY W10340850
NI	MAY W10368807
NI	LINER (NOT A SERVICEABLE PART)
NI	CORD, POWER
NI	MAY W10183556
NI	MAY W10830796
NI	MAY W10830797
NI	SCREW, ANTI-TIP KIT
NI	CLIP, HARNESS
NI	MAY W10344051
1A	GUIDE, USE & CARE
1	INSTRUCTIONS, INSTALLATION
1C	MAY W10403311
1B	MAY W10403310
2C	ORIFICE (3K) (CENTER REAR)
2B	ORIFICE (11K) (LEFT REAR, RIGHT REAR, CENTER FRONT)
2A	ORIFICE (LOW) (LEFT FRONT & RIGHT FRONT)
2	ORIFICE (HIGH) (LEFT FRONT & RIGHT FRONT)
3	MAY W10905356
4	MAY W10905358
5	MAY W10276551
6	MAY W10323251
7	MAY 8286930
8	BUMPER, GRATE
9	MAY W10323252
10	MAY 3196160
11	MAY W10276494
12	SPRING, ELECTRODE (RR)
13B	MAY W10364463
13	MAY W10256034
13A	MAY W10256032
14B	BURNER HEAD (RR)
14A	BURNER, HEAD (LR,RF)
14	MAY W10879806
15	SPRING, ELECTRODE
16	SCREW
17	ASSEMBLY, ORIFICE HOLDER (CENTER REAR)
18A	MAY W10352963
18	MAY W10352969
18B	COOKTOP (BLACK (CENTER))
19	ELECTRODE, BURNER
20	SCREW (8BX3/8-NI)
21A	BRACKET,CONSOLE (RIGHT)
21	BRACKET,CONSOLE (LEFT)
22	MAY 7101P500-60
23	MAY W10789955
24	KNOB, CONTROL LF
25	MAY W10464534
26	MAY W10145453
27	MAY 8286921
28	KNOB, CONTROL (LR, RF) LR, RF
29	SCREW (ALL BUT CENTER REAR)
30	LIGHT, INDICATOR HOUSING
31	MAY W10294500
32	L-STRIP
33	ASSEMBLY, POWER SUPPLY
34	MAY W10116113
35	TRIM, T-STRIP
36	MAY W10145566
37	MODULE, GRIDDLE
