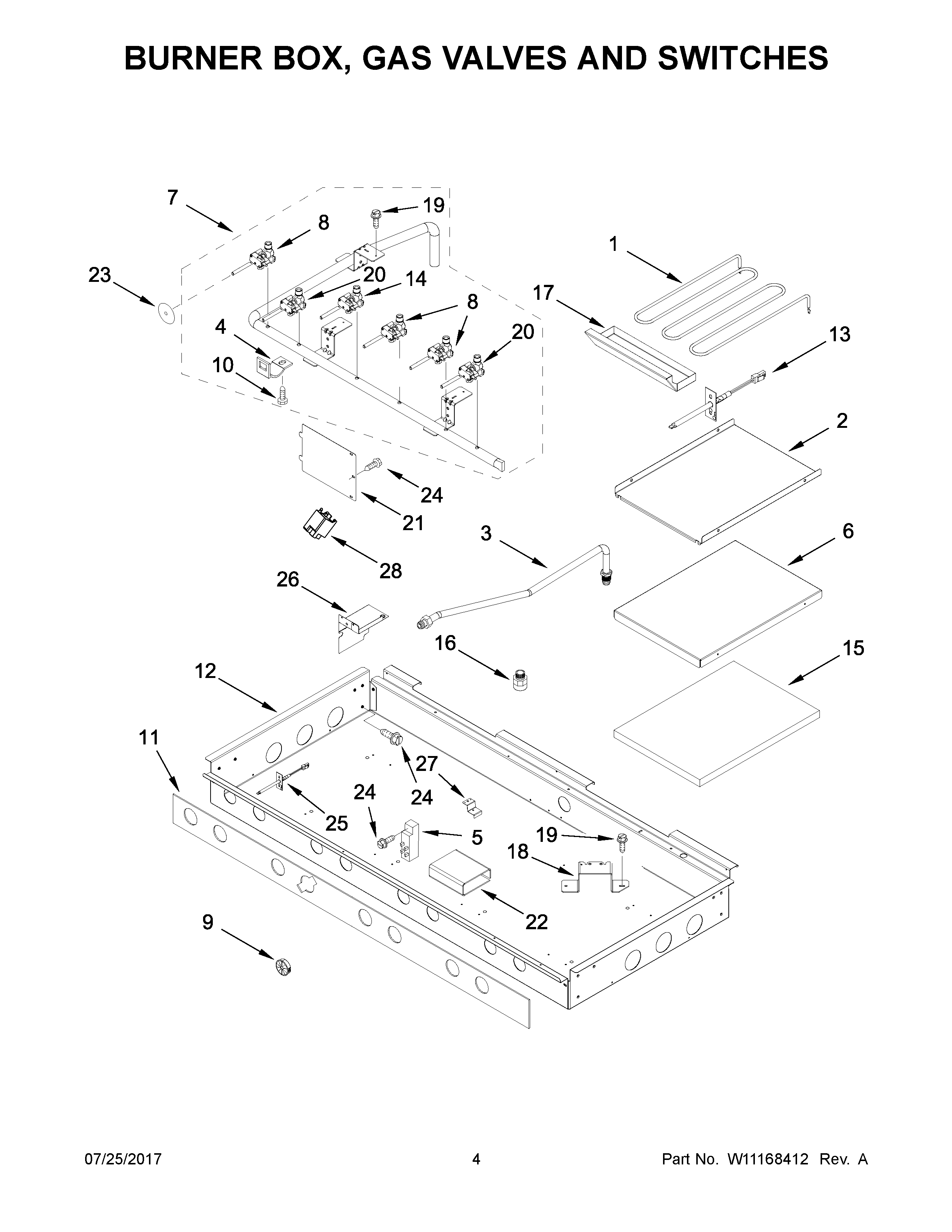

JLRP548WP01 03 – BURNER BOX, GAS VALVES AND SWITCHES

Products

Position	Product
NI	TUBING, GAS (LR)
NI	MAY W10145492
NI	TUBING, GAS (LF (LOW))
NI	TUBING, GAS (LF (HIGH))
NI	TUBING, GAS (CF)
NI	TUBING, GAS (RR)
NI	TUBING, GAS (RF (LOW))
NI	TUBING, GAS (RF (HIGH))
NI	LINER (NOT A SERVICEABLE PART)
1	ELEMENT, GRIDDLE
2	MAY W10145620
3	MAY W10348600
4	BRACKET, VALVE
5	MODULE, SPARK
6	MAY W10246074
7	ASSEMBLY, MANIFOLD
8	VALVE, SINGLE (LEFT REAR, RIGHT REAR, CENTER FRONT)
9	MAY W10189097
10	SCREW, VALVE MTG
11	MAY W10160202
12	MAY W10371521
13	MAY W10319835
14	VALVE, SIMMER (CENTER REAR)
15	MAY W10145621
16	ADAPTER, FEMALE
17	DRIP, TRAY GRIDDLE
18	BRACKET, BURNER
19	MAY 4450800
20	VALVE, GAS (LF)
21	MAY W10115843
22	INSULATION, SPARK MODULE
23	MAY W10189177
24	MAY 7101P426- 60
25	MAY W10131825
26	BRACKET, SPARK MODULE
27	MAY W10308039
28	REIGNITOR
