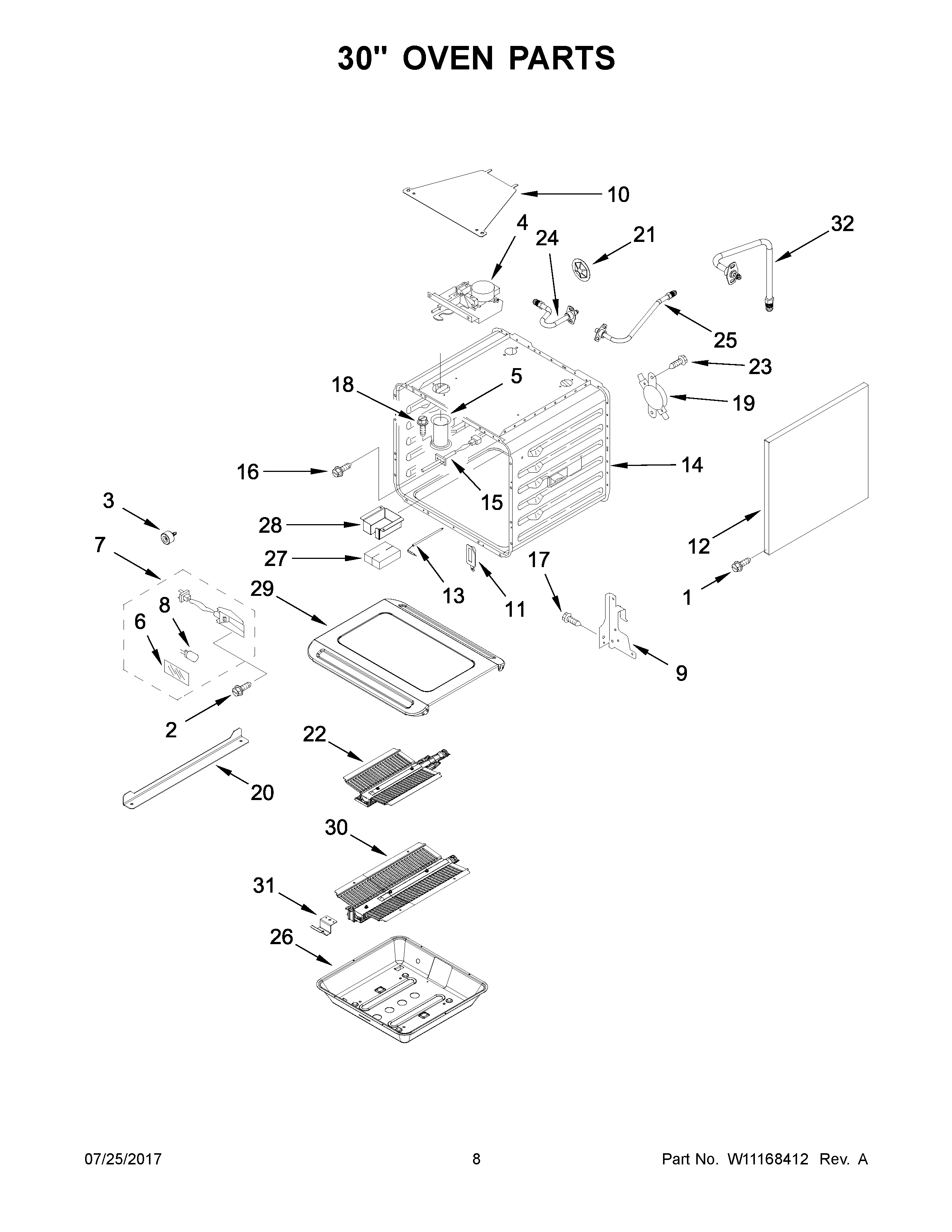

JLRP548WP01 05 – 30″ OVEN PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, WRAP, 30“
NI	MAY W10299350
NI	MAY W10299354
1	MAY W10292297
2	MAY 4449748
3	ASSEMBLY, BUMPER
4	LATCH, MOTORIZED
5	MAY W10145743
6	LENS
7	OVEN LIGHT ASSY
8	BULB, OVEN
9	MAY 4455605
9A	MAY 4455606
10	MAY W10160858
11A	MAY W10115877
11	MAY W10115876
12A	SIDE, CHASSIS (RIGHT)
12	SIDE, CHASSIS (LEFT)
13	MAY W10878506
15	MAY W10131825
16	MAY 4449154
17	MAY 4449040
18	Screw
19	THERMOSTAT
20	MAY W10317437
21	MAY 3400968
22	BURNER, BAKE
23	MAY 7101P426- 60
24	MAY W10813909
25	MAY W10813915
26	SUPPORT, BAKE PAN
27	MAY W10311009
28	MAY W10310985
29	BOTTOM, OVEN GAS
30	MAY W10311335
31	MAY W10308040
32	TUBE, BAKE (LEFT)
