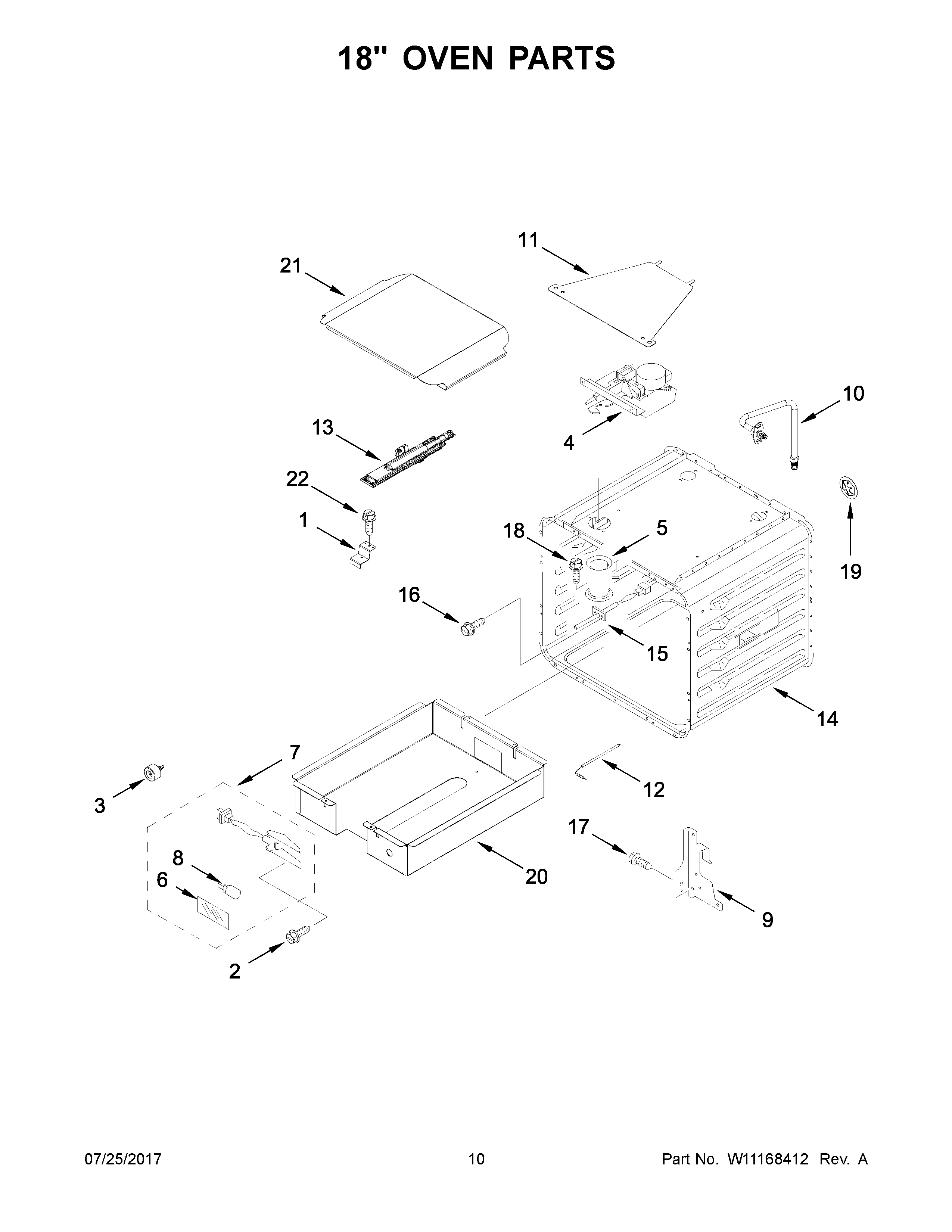

JLRP548WP01 06 – 18″ OVEN PARTS

Products

Position	Product
NI	MAY W10299353
NI	MAY W10282820
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10299355
1	MAY W10308041
2	MAY 4449748
3	ASSEMBLY, BUMPER
4	MAY W10195935
5	MAY W10145743
6	LENS
7	OVEN LIGHT ASSY
8	BULB, OVEN
9A	MAY 4455606
9	MAY 4455605
10	TUBE, BAKE (LEFT)
11	MAY W10160858
12	MAY W10878506
13	BURNER, BAKE W/O SPREADER
15	MAY W10131825
16	MAY 4449154
17	MAY 4449040
18	Screw
19	MAY 3400968
20	MAY W10145651
21	MAY W10246100
22	MAY 7101P426- 60
