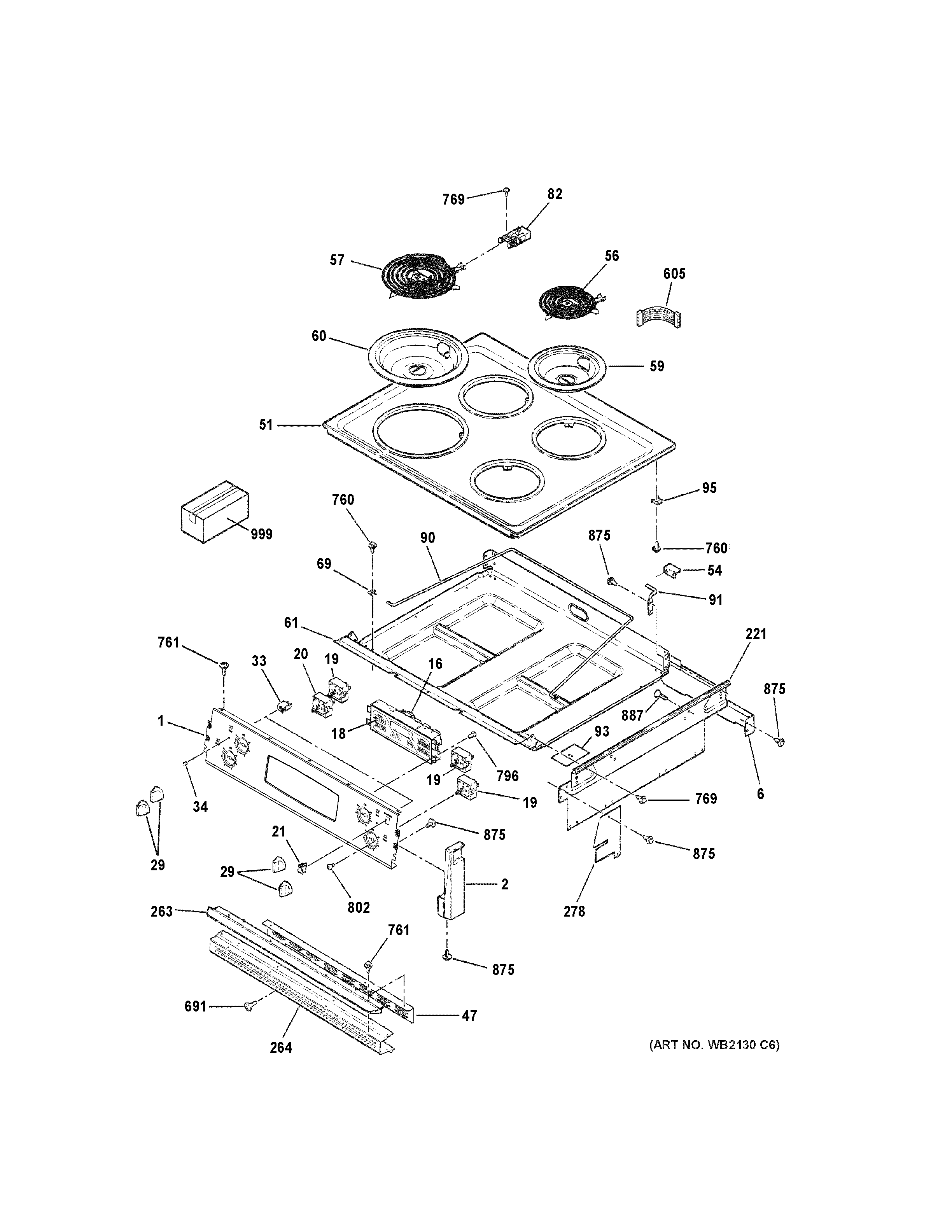

JM250DF2WW CONTROL PANEL & COOKTOP

JM250DF2WW CONTROL PANEL & COOKTOP

Written by

in

JM250DF2WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB36X20143 GE Oven Control Panel
1LABEL WIRE DIAGRAM
2WB07T10533 GE Cap Right End (White)
2WB07T10534 GE White Oven Endcap LT
6WB37K5022 GE Oven Back Panel
16ERC3B2K5 OVEN CONTROL
18WB07X20144 GE Oven Clock Plate (White)
19WB24T10029 GE Oven Infinite Burner Switch
20WB24T10025 SWITCH INFIN(2500W)
21GEN WB24K5036
29WB3K5110 GE Oven Infinite Control Knob
33WB25T10040 GE Oven Light Indicator
34LENS
47WB38K5029 GE Oven Vent Barrier
51WB62K5077 GE Oven Electric MTP White
54WB02X10739 GE Oven Anti-Tip Bracket
56WB30X20478 GE Oven Range Cooktop 6" Surface Unit Burner Element
57WB30X20481 GE Oven 8" Surface Element
59WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
60WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
61WB64K5051 GE Oven Bottom Burner Box
69WB2M87 GE Oven Support Rod Clamp
82WB17T10006 GE Oven Burner Receptacle Block
90GEN WB02K5226
91WB14K5009 GE Oven Right Maintop Hinge
91WB14K5008 GE Oven Left Hinge Maintop
93WB34K5137 GE Oven Barrier Body Side External
95WB1K5118 GE Oven Hinge Clip
221WB63T10104 GE Upper Left Side Extension
221WB63T10103 GE Upper Side Right Extension
263I-BROW TRIM – WHITE
264WB7K5236 GE Oven Vent Trim
278GEN WB34T10086
278WB34T10087 GE Shield Front Lower Right
605MAINTOP HARNESS WIRE
691WB1K5169 GE Trim Screw 10-16 X 3/8" White
760WB1X1293 GE Oven Screw
761WB1K5029 GE Oven Screw
769WB1X500D GE Oven Screw Package
796WB1K5116 GE Oven Screw
802WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
875WH2X930 GE Screw
887WB01T10120 GE Screw 8-18 x 0.750 (Nickel)
999PM MANUAL MINI & WD ASM
999PM QUICK GUIDE
999PM INSTRUCTIONS INSTALL
