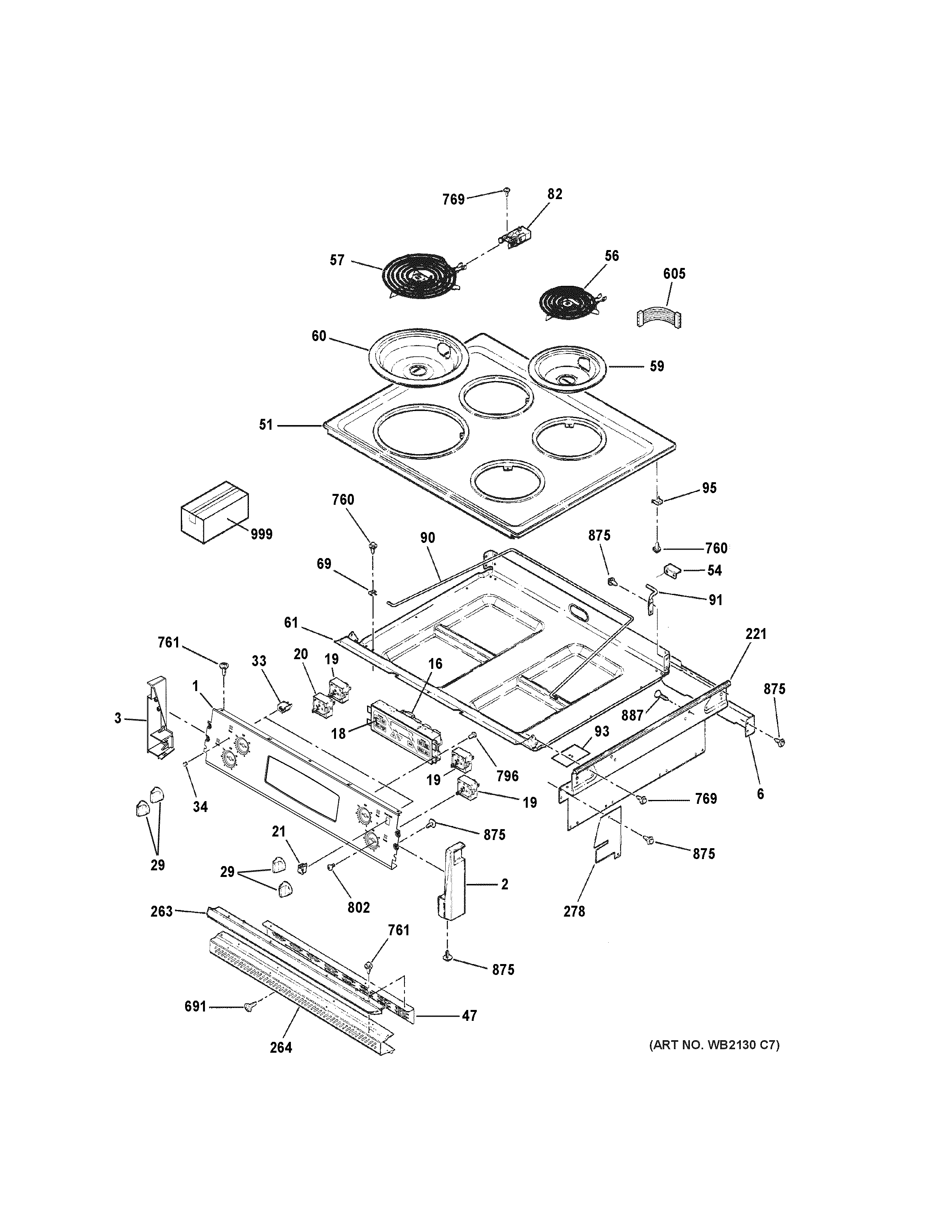

JM250DT2BB CONTROL PANEL & COOKTOP

Products

Position	Product
1	WB36X20136 GE Range Control Panel
2	WB07X43000 GE Black Right End Cap
3	WB07X43001 GE Black Light End Cap
6	WB37K5022 GE Oven Back Panel
16	ERC3B2K5 OVEN CONTROL
18	WB07X20137 GE Black Range Clock Plate
19	WB24T10022 GE Oven Infinite Switch
20	WB24T10025 SWITCH INFIN(2500W)
21	WB24K5035 GE Oven Rocker Switch
29	WB3K5109 GE Oven Black Infinite Knob
33	WB25T10040 GE Oven Light Indicator
34	LENS
47	WB38K5029 GE Oven Vent Barrier
51	WB62K5079 GE Oven Black Maintop
54	WB02X10739 GE Oven Anti-Tip Bracket
56	WB31X46067 GE 6" Surface Burner
57	WB31X46066 GE Surface Burner 8"
59	WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
60	WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
61	WB64K5051 GE Oven Bottom Burner Box
69	WB2M87 GE Oven Support Rod Clamp
82	WB17T10006 GE Oven Burner Receptacle Block
90	GEN WB02K5226
91	WB14K5008 GE Oven Left Hinge Maintop
91	WB14K5009 GE Oven Right Maintop Hinge
93	WB34K5137 GE Oven Barrier Body Side External
95	WB1K5118 GE Oven Hinge Clip
221	WB63T10104 GE Upper Left Side Extension
221	WB63T10103 GE Upper Side Right Extension
263	WB7K5378 GE Oven Brow Trim
264	VENT TRIM
278	WB34T10087 GE Shield Front Lower Right
278	GEN WB34T10086
605	MAINTOP HARNESS WIRE
691	WB1K5162 GE Oven Black Screw
760	WB1X1293 GE Oven Screw
761	WB1K5029 GE Oven Screw
769	WB1X500D GE Oven Screw Package
796	WB1K5116 GE Oven Screw
802	WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
875	WH2X930 GE Screw
887	WB01T10120 GE Screw 8-18 x 0.750 (Nickel)
999	PM MINI MANUAL AND WIRING
999	PM INSTRUCTIONS INSTALL
999	PM OWNERS MANUAL
