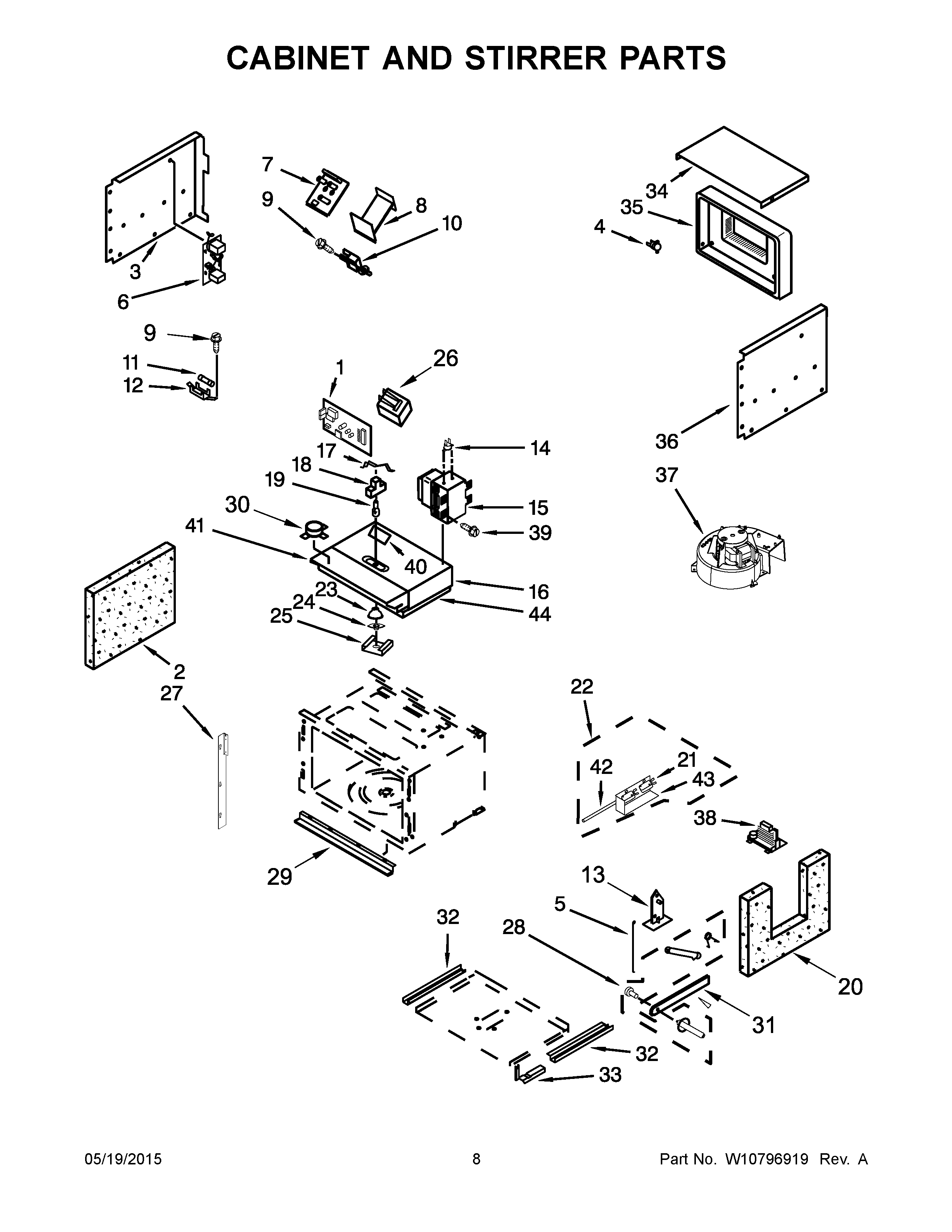

JMC2127WS02 05 – CABINET AND STIRRER PARTS

Products

Position	Product
NI	MAY 461967903621
NI	RELAY OMRON
NI	MAY W10277646
NI	MISCELLANEOUS PARTS, HARNESS, COMM CMB POWER
NI	MAY W10277591
NI	RELAY OEG
1	MAY W10626304
4	MAY W10120223
5	SPRING, TORSION
6	FILTER, NOISE
7	MAY W10578541
9	MAY W10131249
10	ACTUATOR
11	FUSE
12	BLOCK, FUSE
13	SUPPORT
14	THERMOSTAT, MAGNETRON
15	MAY 461967847321
17	SPRING, LAMP
18	HOLDER, LAMP
19	MAY 241954900069
21	SWITCH
22	MAY 461968971522
23	REFLECTOR
24	LENS, LAMP
25	CLIP, SPRING
26	TRANSFORMER, LIGHT (20V)
27A	MAY 461967013722
27	MAY 461967013732
28	BUSHING
29	MAY 461968973251
30	SENSOR, HUMIDITY
31	ARM, SLIDING
32	SUPPORT, BOTTOM
33	MAY 461968979601
37	MAY 461968969271
38	MAY W10468206
39	MAY W10130890
42	ROD, RELEASE
43	HOLDER, SWITCH
44	LINER (NOT A SERVICEABLE PART)
