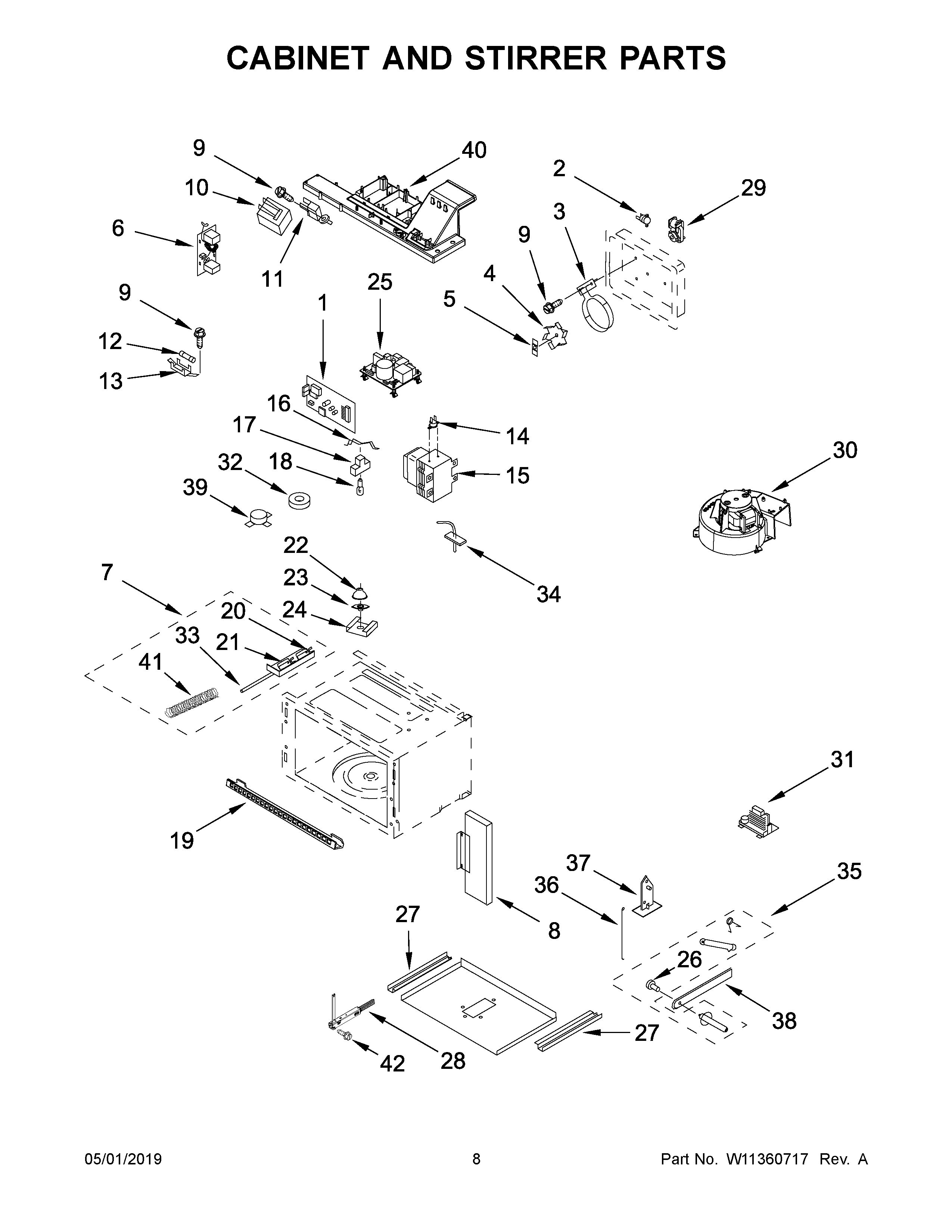

JMC2427IM01 05 – CABINET AND STIRRER PARTSadmin2025-04-26T09:39:54+00:00JMC2427IM01 05 – CABINET AND STIRRER PARTS
Products
| Position | Product |
|---|
| 1 | MAY W11289988 |
| 2 | SENSOR, CONVECTION |
| 3 | HEATER, CONVECTION ELEMENT |
| 4 | FAN, CONVECTION |
| 5 | NUT, SPEED |
| 6 | FILTER, NOISE |
| 7 | ASSEMBLY, INTERLOCK SWITCH |
| 8A | TRIM, SIDE (RIGHT) |
| 8 | TRIM, SIDE (LEFT) |
| 9 | SCREW |
| 10 | TRANSFORMER, LIGHT (20V) |
| 11 | THERMOACTUATOR |
| 12 | FUSE |
| 13 | BLOCK, FUSE |
| 14 | THERMOSTAT, MAGNETRON |
| 15 | MAY W11226473 |
| 16 | SPRING, LAMP |
| 17 | HOLDER, LAMP |
| 18 | LAMP, HALOGEN |
| 19 | MAY 461968973251 |
| 20 | SWITCH |
| 21 | HOLDER, SWITCH |
| 22 | REFLECTOR |
| 23 | LENS, LAMP |
| 24 | CLIP, SPRING |
| 25 | BOARD, POWER SUPPLY |
| 26 | BUSHING |
| 27 | SUPPORT, BOTTOM |
| 28 | MAY W11256757 |
| 29 | MOTOR, CONVECTION FAN |
| 30 | MAY W11131760 |
| 31 | MAY W11237240 |
| 32 | SEALING, LAMP |
| 33 | ROD, RELEASE |
| 34 | SENSOR, TERMPERATURE |
| 35 | ASSEMBLY, SLIDING ARM |
| 36 | SPRING, TORSION |
| 37 | SUPPORT |
| 38 | ARM, SLIDING |
| 39 | SENSOR, HUMIDITY |
| 40 | DUCT, MAGNETRON |
| 41 | SPRING, RELEASE ROD |
| 42 | MAY 461967825781 |
