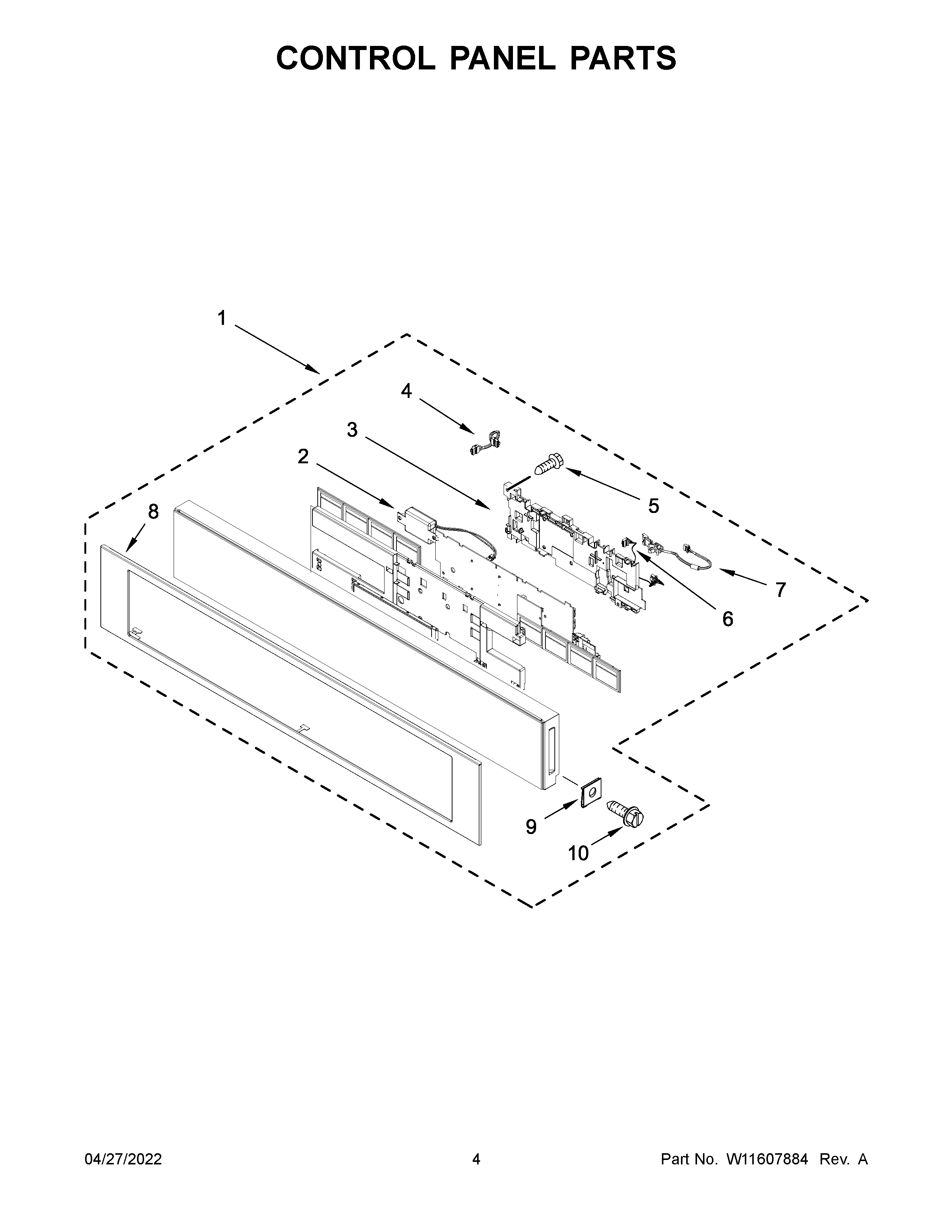

JMC2427LL00 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11598159 Whirlpool Console + Core
2W11123146 Whirlpool Speaker
3W10668510 Whirlpool Housing
4W10566973 Whirlpool Wire Harness
5W10489172 Whirlpool Screw
6W10524350 Whirlpool Wire Harness
7W10575307 Whirlpool Wire Harness
8SKIN, CONTROL PANEL (STAINLESS)
9WP4450118 Whirlpool Nut
10SCREW (BLACK)
