JMC2427LL01 OVEN PARTS

Products

Position	Product
	QUICK START GUIDE
	W11539494 Whirlpool Wire Harness
	W11546965 Whirlpool Wire Harness
	W11578578 Whirlpool Microwave Wire Harness
	W11578580 Whirlpool Wire Harness
	W11598162 Whirlpool Hardware
	LITERATURE PARTS (OWNER'S MANUAL)
	BRACKET, LOWER (RIGHT)
	W11356986 Whirlpool Wire Harness
	W11239805 Whirlpool Mounting Rail
	W11356992 Whirlpool Conduit
	W11627411 Whirlpool Mounting Rail
	FOLLOWING PARTS NOT ILLUSTRATED
	W11226264 Whirlpool Wire Harness
	TECH SHEET

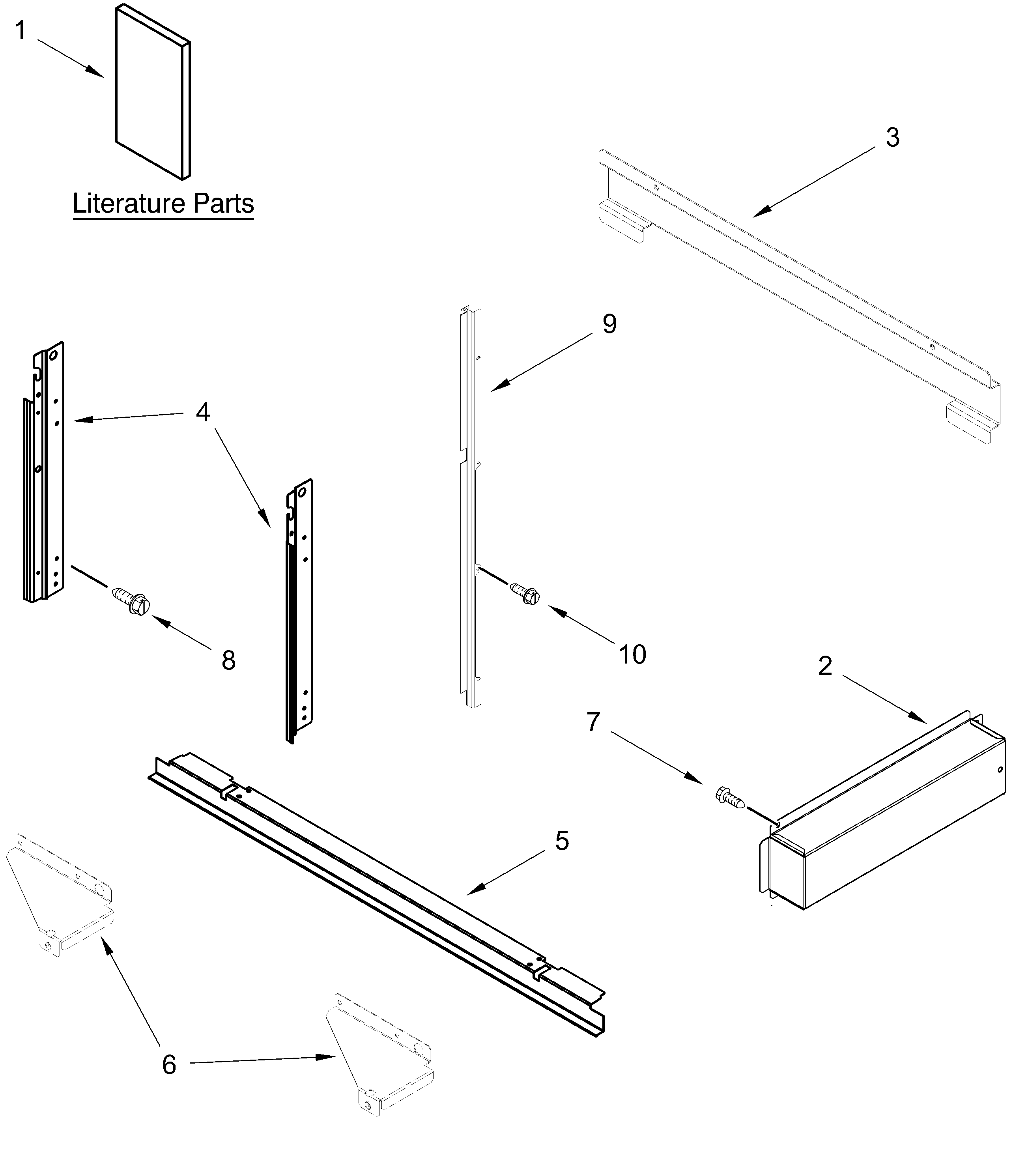

1	Literature Parts
2	W10239155 Whirlpool Microwave Cover
3	W11673269 Whirlpool Support Bracket
4	W11627410 Whirlpool Mounting Rail
5	W11312229 Whirlpool Trim Assembly
6	W10239158 Whirlpool Support
7	SCREW
8	SCREW
9	W11239807 Whirlpool Mounting Rail
10	W11602623 Whirlpool Screw
