JMC2427LM00 03 – CONTROL PANEL PARTS

JMC2427LM00 03 – CONTROL PANEL PARTS

Written by

in

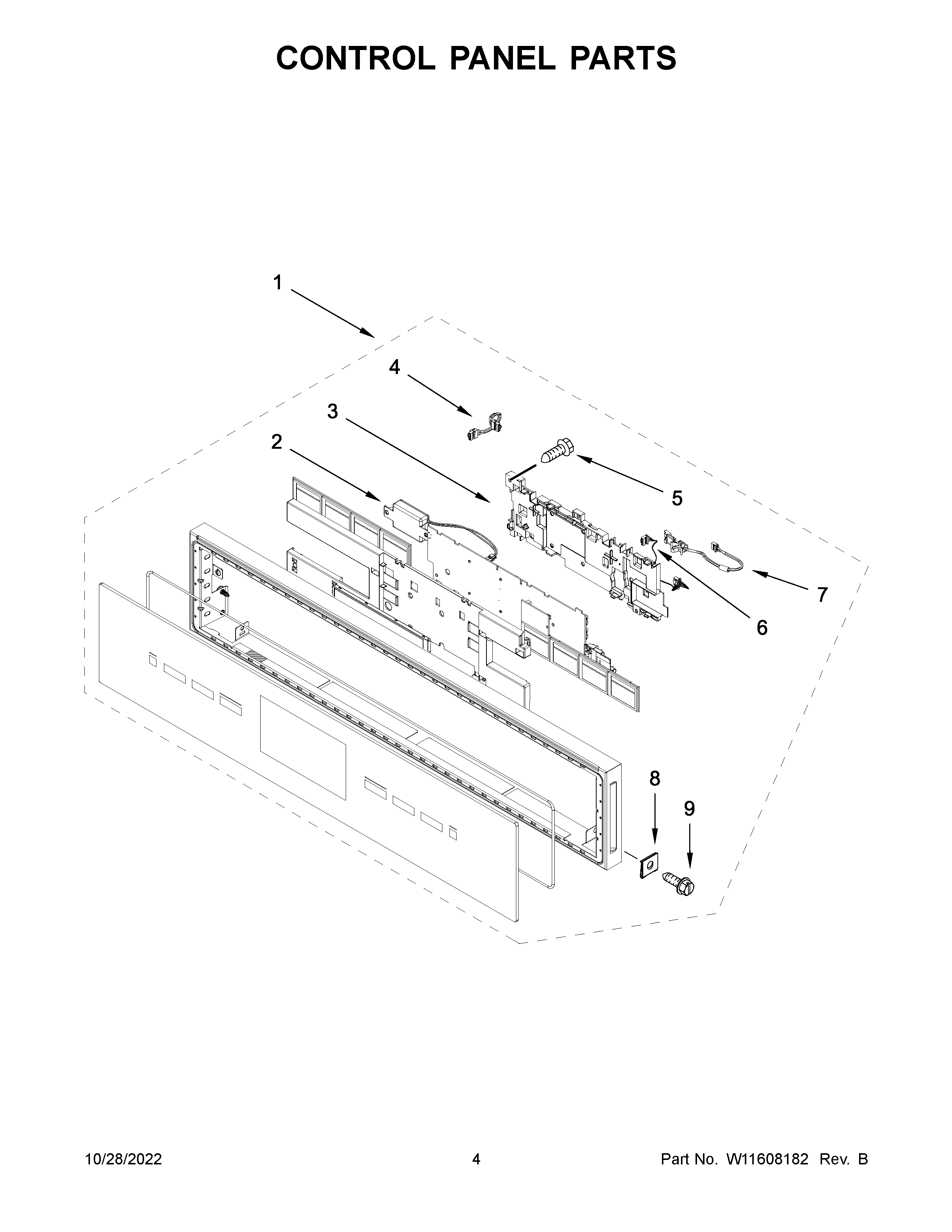

JMC2427LM00 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11598163 Whirlpool Console + Core
2W11123146 Whirlpool Speaker
3W10668510 Whirlpool Housing
4W10566973 Whirlpool Wire Harness
5W10489172 Whirlpool Screw
6W10524350 Whirlpool Wire Harness
7W10575307 Whirlpool Wire Harness
8WP4450118 Whirlpool Nut
9SCREW (BLACK)
