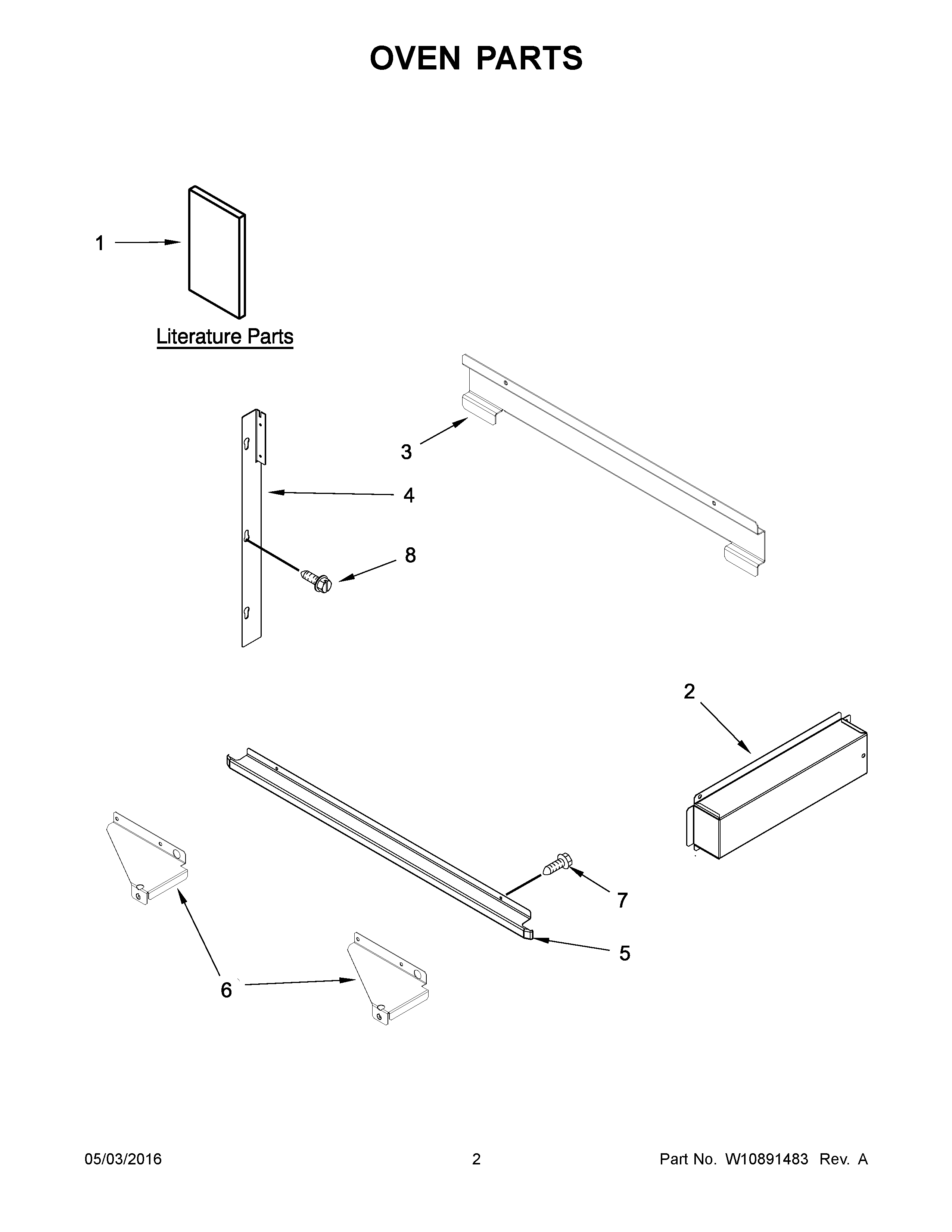

JMC2430DB01 02 – OVEN PARTS

JMC2430DB01 02 – OVEN PARTS

Written by

in

JMC2430DB01 02 – OVEN PARTS

Products

PositionProduct
NIMAY 4450800
NIMAY W10389372
NIMAY W10371813
NIHARNESS, COMMUNICATION
NISTRAP, GROUND
NICONDUIT
NIMAY W10406103
NILINER (NOT A SERVICEABLE PART)
1AGUIDE, USE & CARE (MICROWAVE)
1MAY W10768186
1BSHEET, TECH
2BOX, CONDUIT
3SUPPORT, MICROWAVE MODULE
4ARAIL, SIDE (RIGHT)
4RAIL, SIDE (LEFT)
5TRIM, BOTTOM (BLACK)
5ATRIM, BOTTOM (STAINLESS)
6BRACKET, LOWER (LEFT)
6ABRACKET, LOWER (RIGHT)
7Screw
8MAY 7101P653-60
