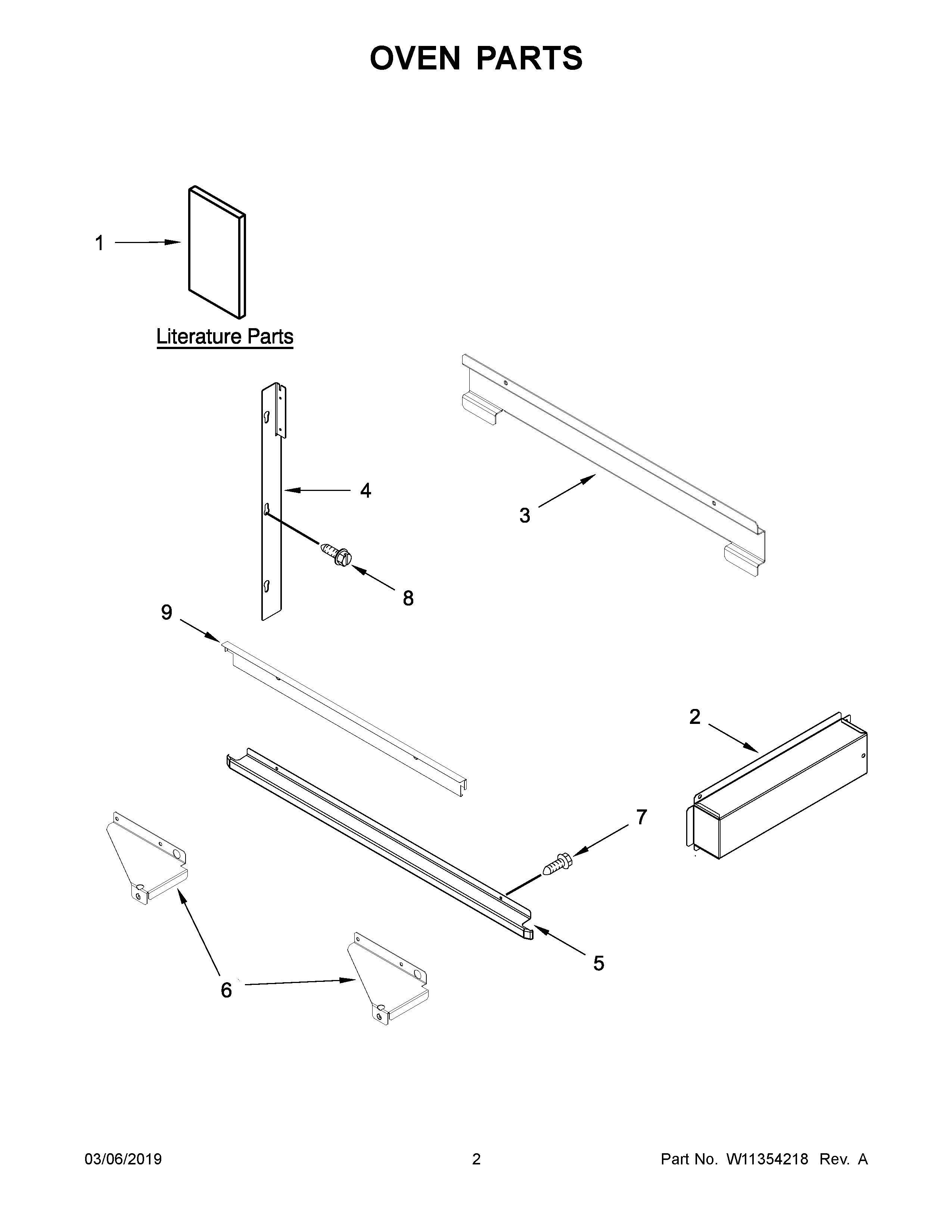

JMC2430DB02 02 – OVEN PARTS

Products

PositionProduct
NICONDUIT
NIBAG, HARDWARE
NIHARNESS, COMMUNICATION
NIHARNESS, INTERLOCK
NIHARNESS, FAN & TURNTABLE
NIHARNESS, INVERTER
NIHARNESS, CABLE TREE ASSEMBLY
NIMAY W11198503
NILINER (NOT A SERVICEABLE PART)
NIMAY 4450800
NISTRAP, GROUND
1AGUIDE, USE & CARE (MICROWAVE)
1BSHEET, TECH
1INSTR, INSTALLER
2BOX, CONDUIT
3SUPPORT, MICROWAVE MODULE
4ARAIL, SIDE (RIGHT)
4RAIL, SIDE (LEFT)
5ATRIM, BOTTOM (STAINLESS)
5TRIM, BOTTOM (BLACK)
6BRACKET, LOWER (LEFT)
6ABRACKET, LOWER (RIGHT)
7Screw
8MAY 7101P426- 60
9COVER, 30" COMPLIMENT
