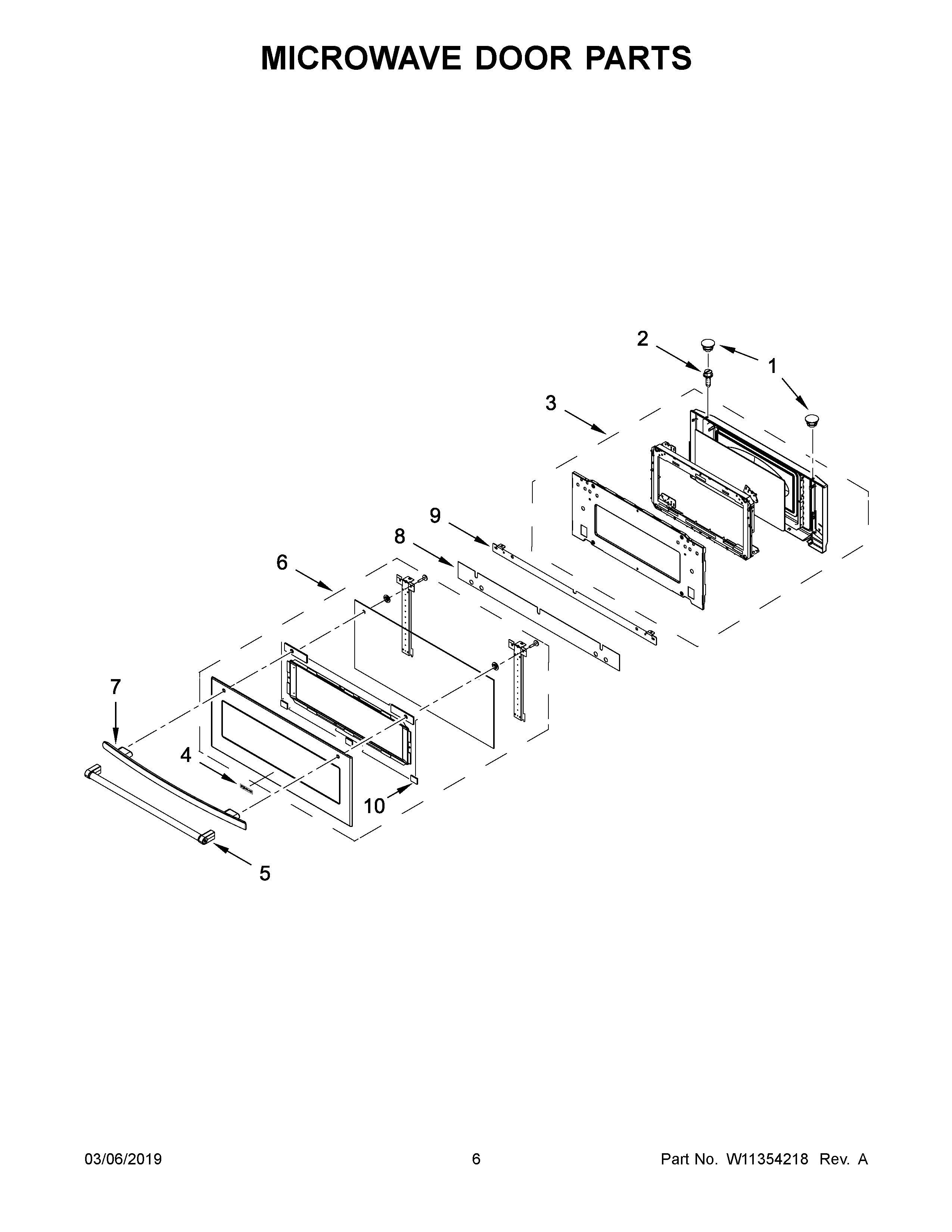

JMC2430DP02 04 – MICROWAVE DOOR PARTS

Products

Position	Product
1	CAP, SCREW
2	SCREW (8BX3/8-NI)
3	ASSEMBLY, INNER DOOR
4	ASSEMBLY, BADGE (BLACK)
4A	ASSEMBLY, BADGE (STAINLESS)
4B	MAY W10159578
5	ASSEMBLY, DOOR HANDLE (STAINLESS)
6	ASSEMBLY, OUTER DOOR (BLACK)
6A	ASSEMBLY, OUTER DOOR (STAINLESS)
7A	ASSEMBLY, DOOR HANDLE (STAINLESS)
7	ASSEMBLY, DOOR HANDLE (BLACK)
8	FOAM, DOOR HANDLE
9	BRACKET, BALANCING DOOR (BLACK MODEL ONLY)
10	SPACER, VENT
