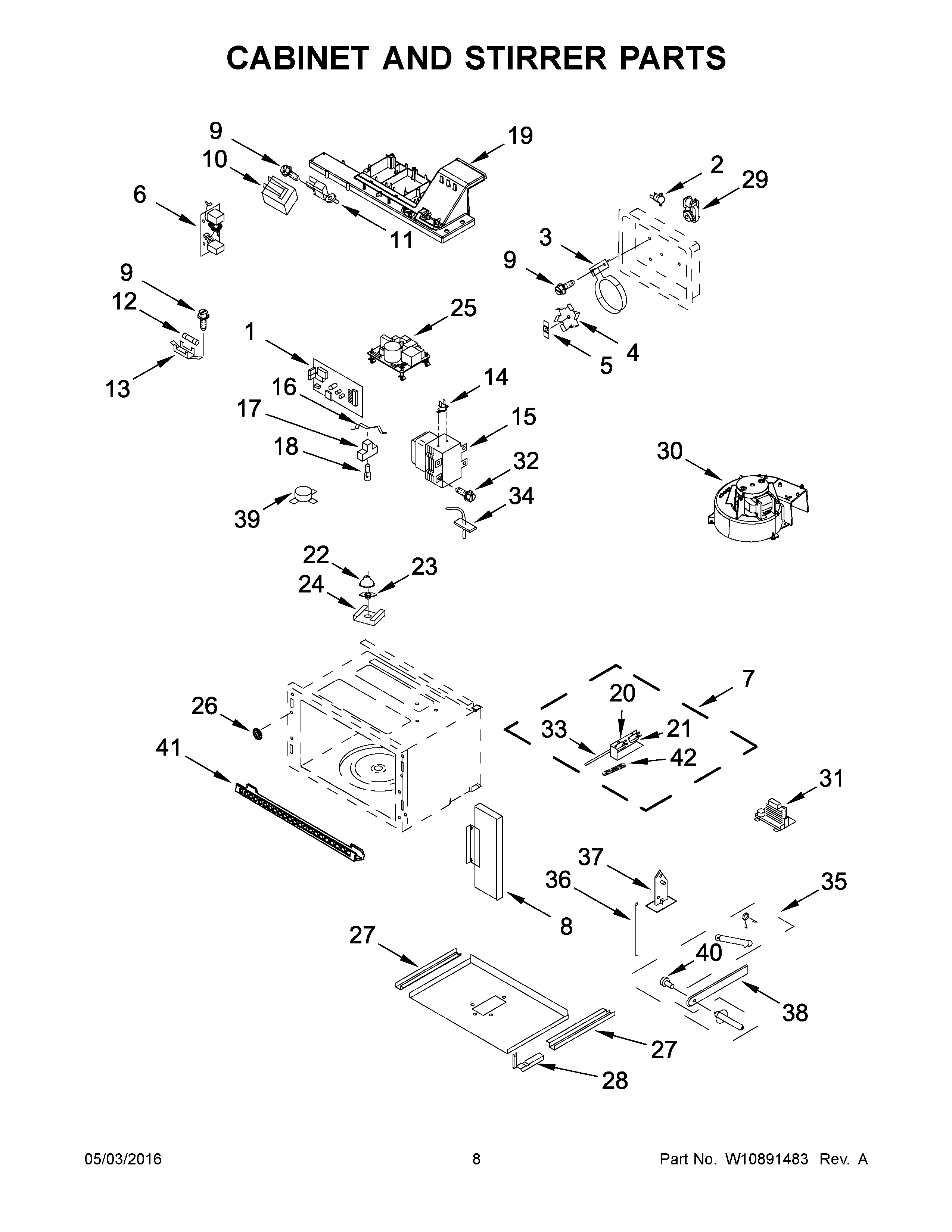

JMC2430DS01 05 – CABINET AND STIRRER PARTS

JMC2430DS01 05 – CABINET AND STIRRER PARTS

Written by

in

JMC2430DS01 05 – CABINET AND STIRRER PARTS

Products

Position	Product
1	MAY W10711277
2	SENSOR, CONVECTION
3	HEATER, CONVECTION ELEMENT
4	FAN, CONVECTION
5	NUT, SPEED
6	FILTER, NOISE
7	ASSEMBLY, INTERLOCK SWITCH
8A	MAY W10367739
8	TRIM, SIDE (LEFT)
9	MAY W10131249
10	TRANSFORMER, LIGHT (20V)
11	THERMOACTUATOR
12	FUSE
13	BLOCK, FUSE
14	THERMOSTAT, MAGNETRON
15	MAY 461967847321
16	SPRING, LAMP
17	HOLDER, LAMP
18	LAMP, HALOGEN
19	DUCT, MAGNETRON
20	SWITCH
21	HOLDER, SWITCH
22	REFLECTOR
23	LENS, LAMP
24	CLIP, SPRING
25	BOARD, POWER SUPPLY
26	MAY W10283016
27	SUPPORT, BOTTOM
28	MAY 461968979601
29	MOTOR, CONVECTION FAN
30	MAY 461968969271
31	MAY W10468206
32	MAY W10130890
33	ROD, RELEASE
34	SENSOR, TERMPERATURE
35	ASSEMBLY, SLIDING ARM
36	SPRING, TORSION
37	SUPPORT
38	ARM, SLIDING
39	SENSOR, HUMIDITY
40	BUSHING
41	VENT, TOP MICROWAVE
42	SPRING, RELEASE ROD
