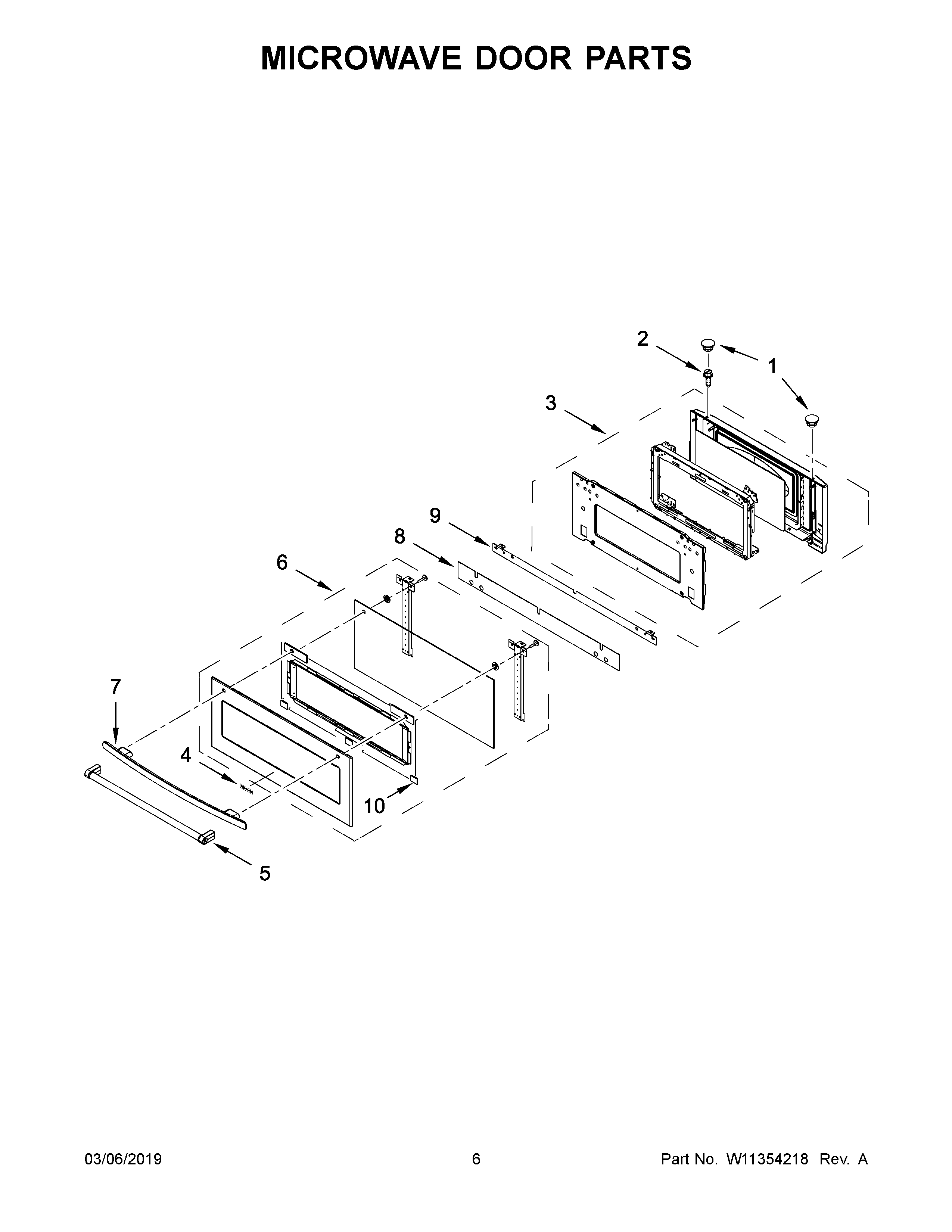

JMC2430DS02 04 – MICROWAVE DOOR PARTSadmin2025-04-26T09:35:42+00:00JMC2430DS02 04 – MICROWAVE DOOR PARTS
Products
| Position | Product |
|---|
| 1 | CAP, SCREW |
| 2 | SCREW (8BX3/8-NI) |
| 3 | ASSEMBLY, INNER DOOR |
| 4 | ASSEMBLY, BADGE (BLACK) |
| 4A | ASSEMBLY, BADGE (STAINLESS) |
| 4B | MAY W10159578 |
| 5 | ASSEMBLY, DOOR HANDLE (STAINLESS) |
| 6 | ASSEMBLY, OUTER DOOR (BLACK) |
| 6A | ASSEMBLY, OUTER DOOR (STAINLESS) |
| 7A | ASSEMBLY, DOOR HANDLE (STAINLESS) |
| 7 | ASSEMBLY, DOOR HANDLE (BLACK) |
| 8 | FOAM, DOOR HANDLE |
| 9 | BRACKET, BALANCING DOOR (BLACK MODEL ONLY) |
| 10 | SPACER, VENT |
