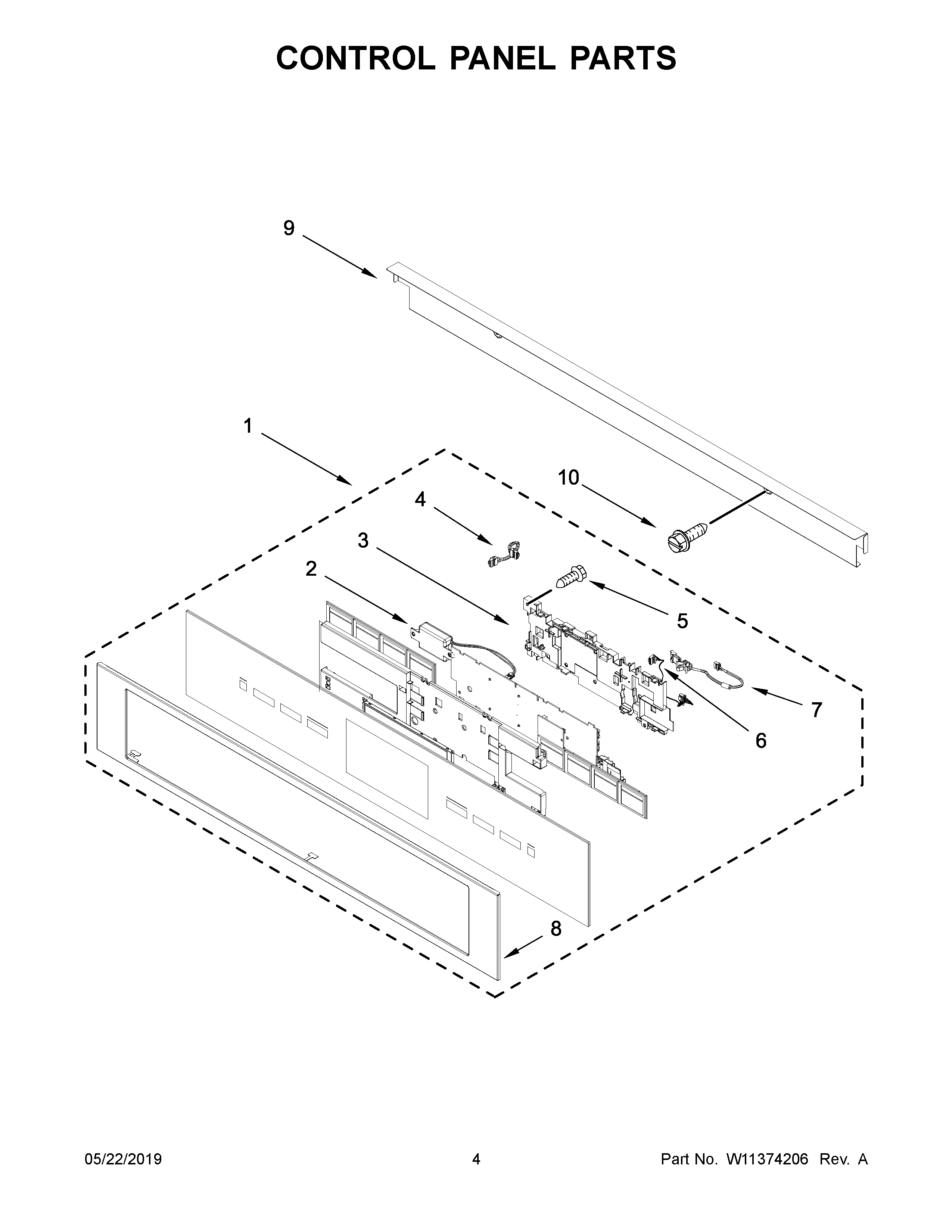

JMC2430IL02 03 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	MAY W11196781
2	ASSEMBLY, SPEAKER
3	HOUSING
4	HARNESS, KEYPAD (LEFT TO CENTER)
5	MAY W10489172
6	HARNESS, KEYPAD (RIGHT TO CENTER)
7	JUMPER HARNESS, POWER SUPPLY
8	SKIN, CONTROL PANEL (STAINLESS)
9	COVER, 30" COMPLIMENT
10	MAY 7101P426- 60
