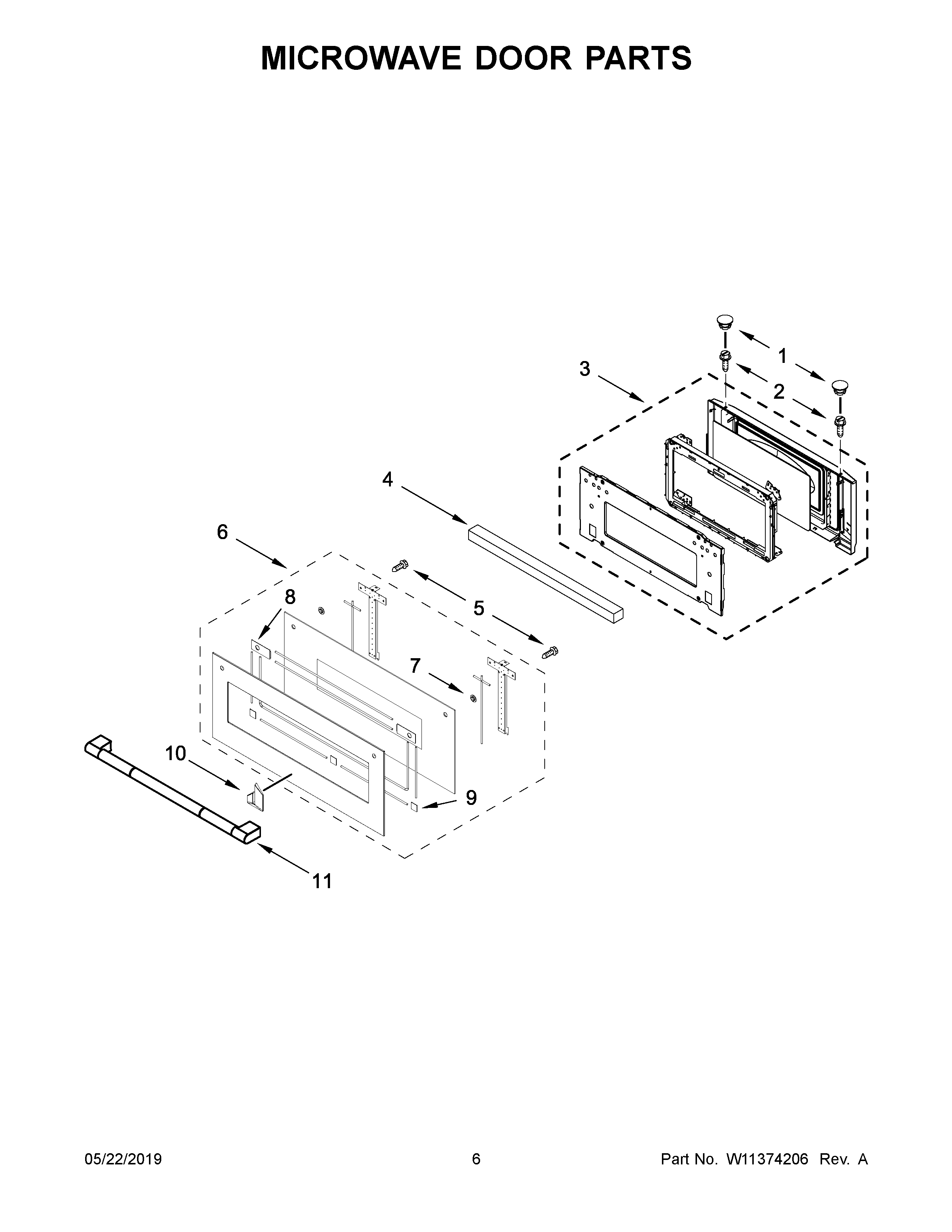

JMC2430IL02 04 – MICROWAVE DOOR PARTS

JMC2430IL02 04 – MICROWAVE DOOR PARTS

Written by

in

JMC2430IL02 04 – MICROWAVE DOOR PARTS

Products

PositionProduct
1CAP, SCREW
2SCREW (8BX3/8-NI)
3ASSEMBLY, INNER DOOR
4FOAM, DOOR HANDLE
5SCREW
6MAY W11200398
7WASHER, DOOR
8SPACER, HANDLE
9SPACER, VENT
10MAY W11238658
11ASSEMBLY, HANDLE (STAINLESS)
