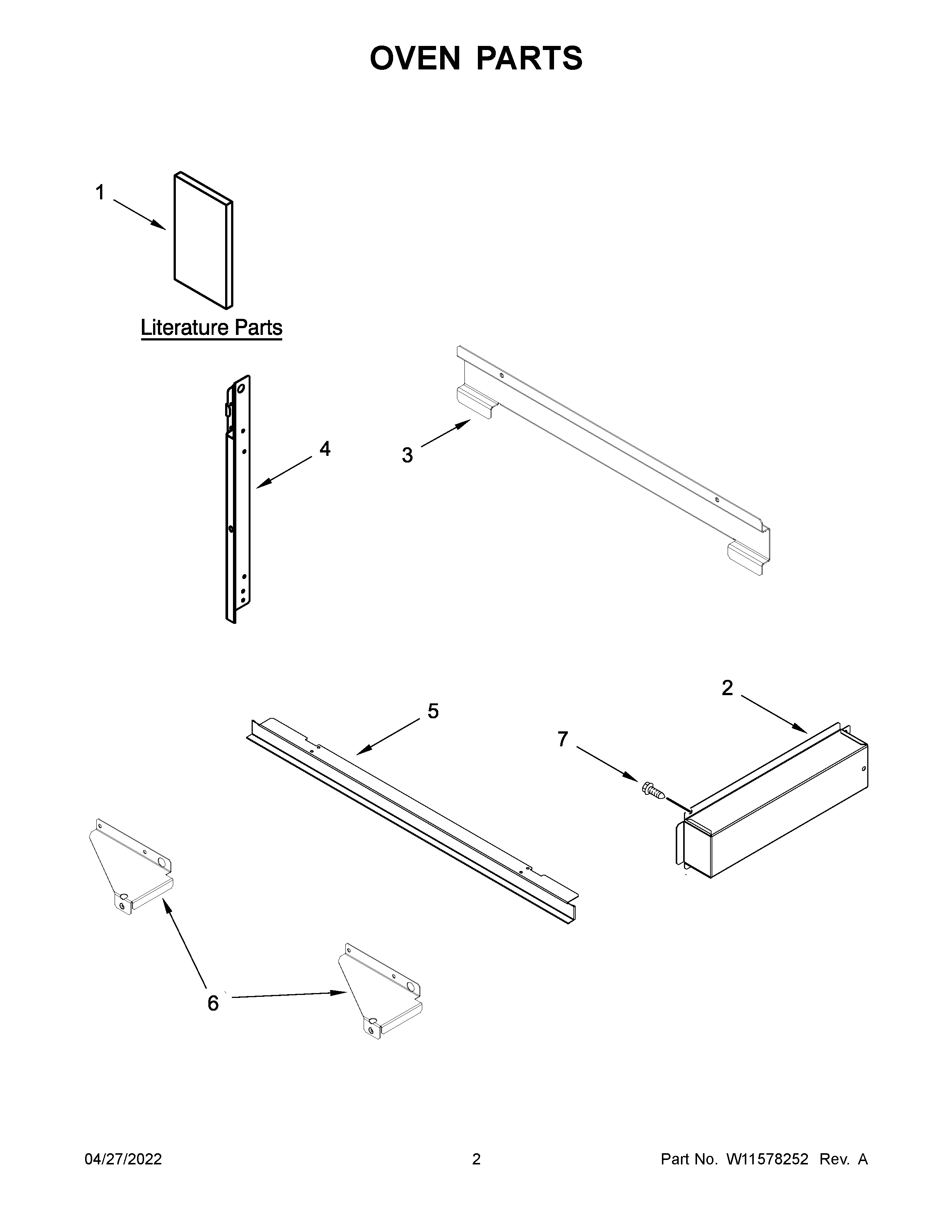

JMC2430IL15 02 – OVEN PARTS

Products

Position	Product
NI	W10760039 Whirlpool Hardware
NI	W11356986 Whirlpool Wire Harness
NI	W11578580 Whirlpool Wire Harness
NI	W11578578 Whirlpool Microwave Wire Harness
NI	W11546965 Whirlpool Wire Harness
NI	W11539494 Whirlpool Wire Harness
NI	W11356992 Whirlpool Conduit
NI	W11356977 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11226264 Whirlpool Wire Harness
NI	4450800 Whirlpool Oven Screw
1C	DIAGRAM, WIRING
1B	SHEET, TECH
1A	GUIDE, USE AND CARE (MICROWAVE OVEN)
1	INSTALLATION INSTRUCTIONS
2	W10239155 Whirlpool Microwave Cover
3	W11673269 Whirlpool Support Bracket
4A	RAIL, SIDE (RIGHT)
4	RAIL, SIDE (LEFT)
5	W11359268 Whirlpool Trim
6A	W10239157 Whirlpool Microwave Support
6	W10239156 Whirlpool Microwave Support
7	SCREW
