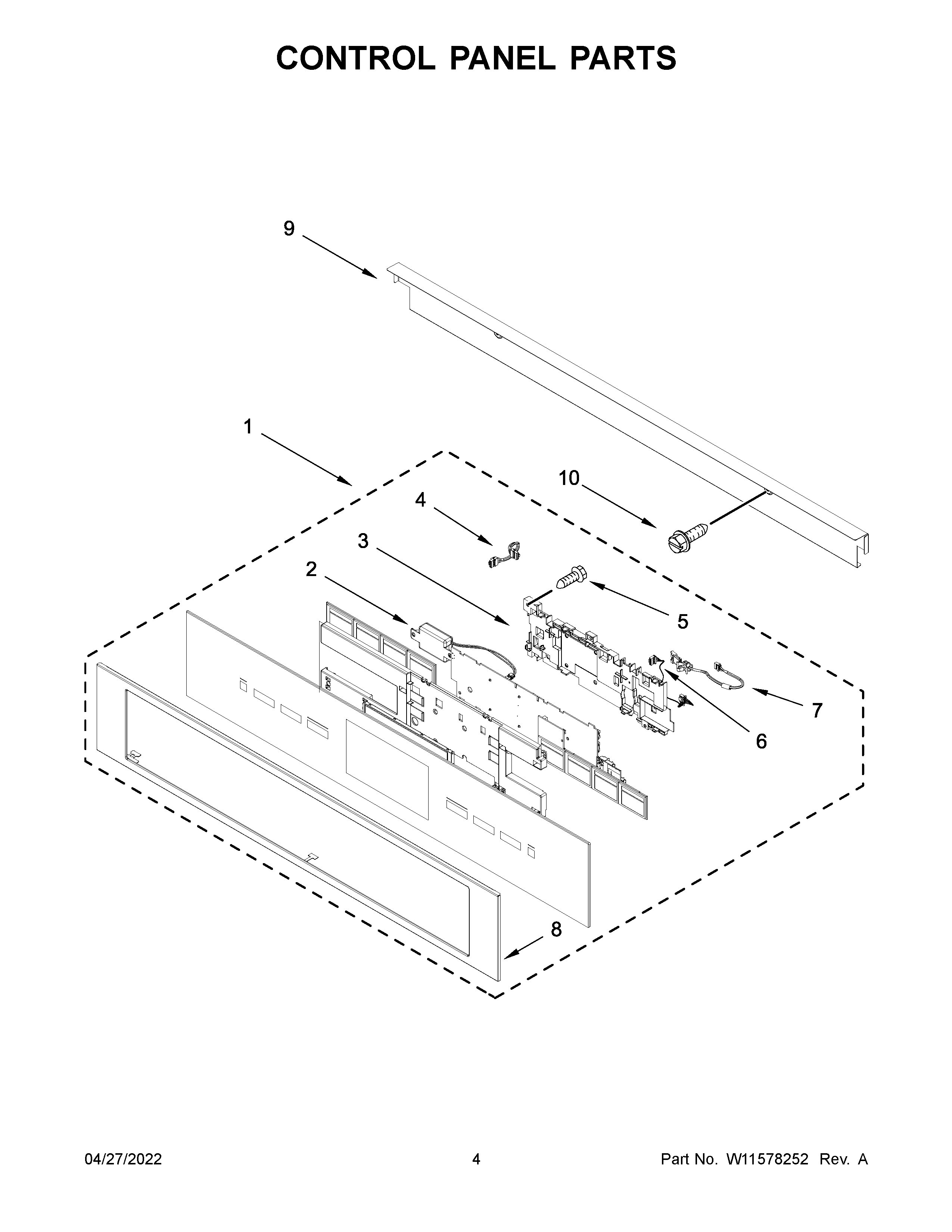

JMC2430IL15 03 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	W11451816 Whirlpool Console + Core
2	W11123146 Whirlpool Speaker
3	W10668510 Whirlpool Housing
4	W10566973 Whirlpool Wire Harness
5	W10489172 Whirlpool Screw
6	W10524350 Whirlpool Wire Harness
7	W10575307 Whirlpool Wire Harness
8	W11197498 Whirlpool Oven Control Panel
9	COVER, 30 IN COMPLIMENT
10	SCREW
