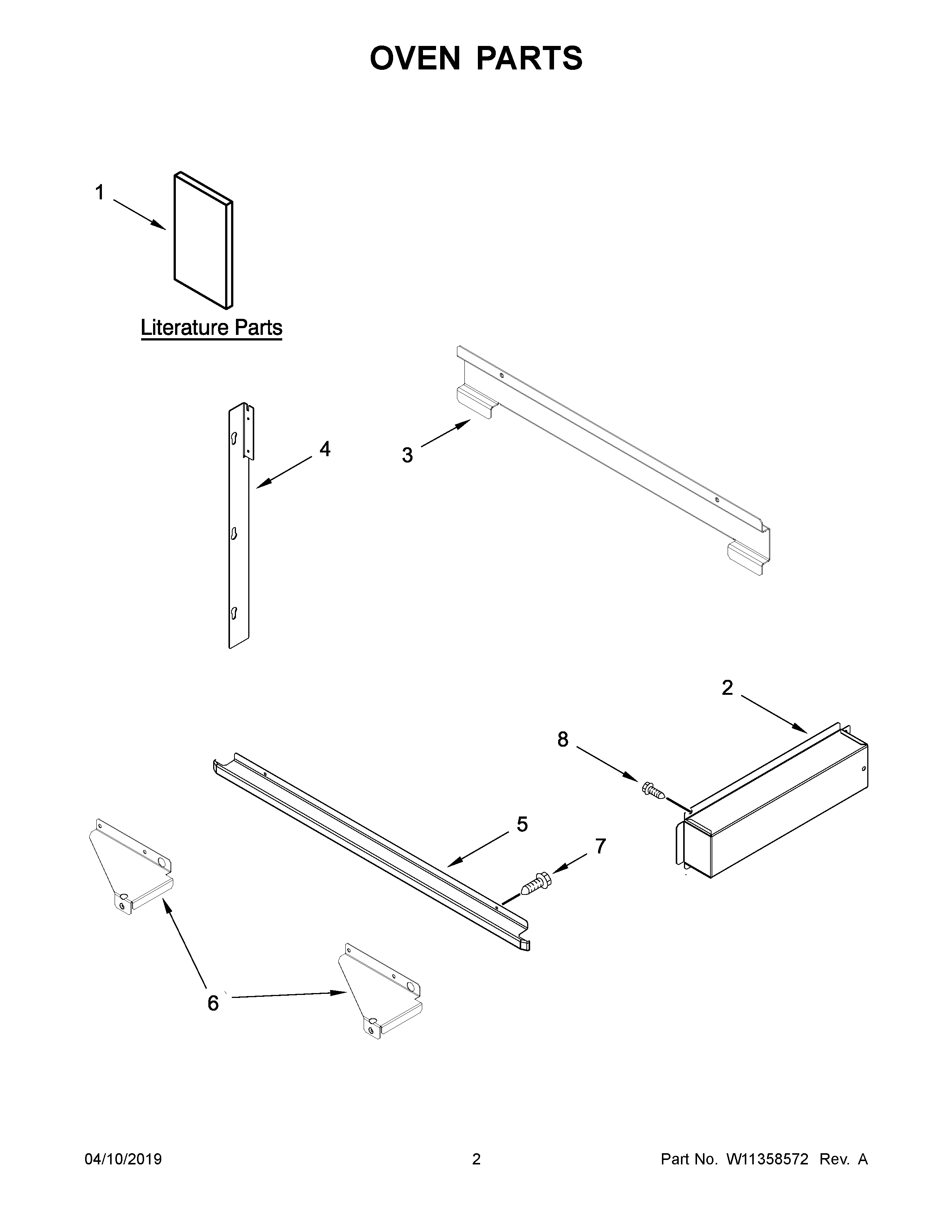

JMC2430IM01 02 – OVEN PARTSadmin2025-04-26T09:35:59+00:00JMC2430IM01 02 – OVEN PARTS
Products
| Position | Product |
|---|
| NI | MAY 4450800 |
| NI | CONDUIT |
| NI | STRAP, GROUND |
| NI | BAG, HARDWARE |
| NI | HARNESS, COMMUNICATION |
| NI | HARNESS, INTERLOCK |
| NI | HARNESS, FAN & TURNTABLE |
| NI | HARNESS, INVERTER |
| NI | HARNESS, CABLE TREE ASSEMBLY |
| NI | MAY W11198503 |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1B | MAY W11284428 |
| 1 | MAY W11235626 |
| 1A | MAY W11235346 |
| 1C | MAY W11235305 |
| 2 | BOX, CONDUIT |
| 3 | SUPPORT, MICROWAVE MODULE |
| 4 | RAIL, SIDE (LEFT) |
| 4A | RAIL, SIDE (RIGHT) |
| 5 | TRIM, BOTTOM (STAINLESS) |
| 6A | BRACKET, LOWER (RIGHT) |
| 6 | BRACKET, LOWER (LEFT) |
| 7 | Screw |
| 8 | MAY 7101P426- 60 |
