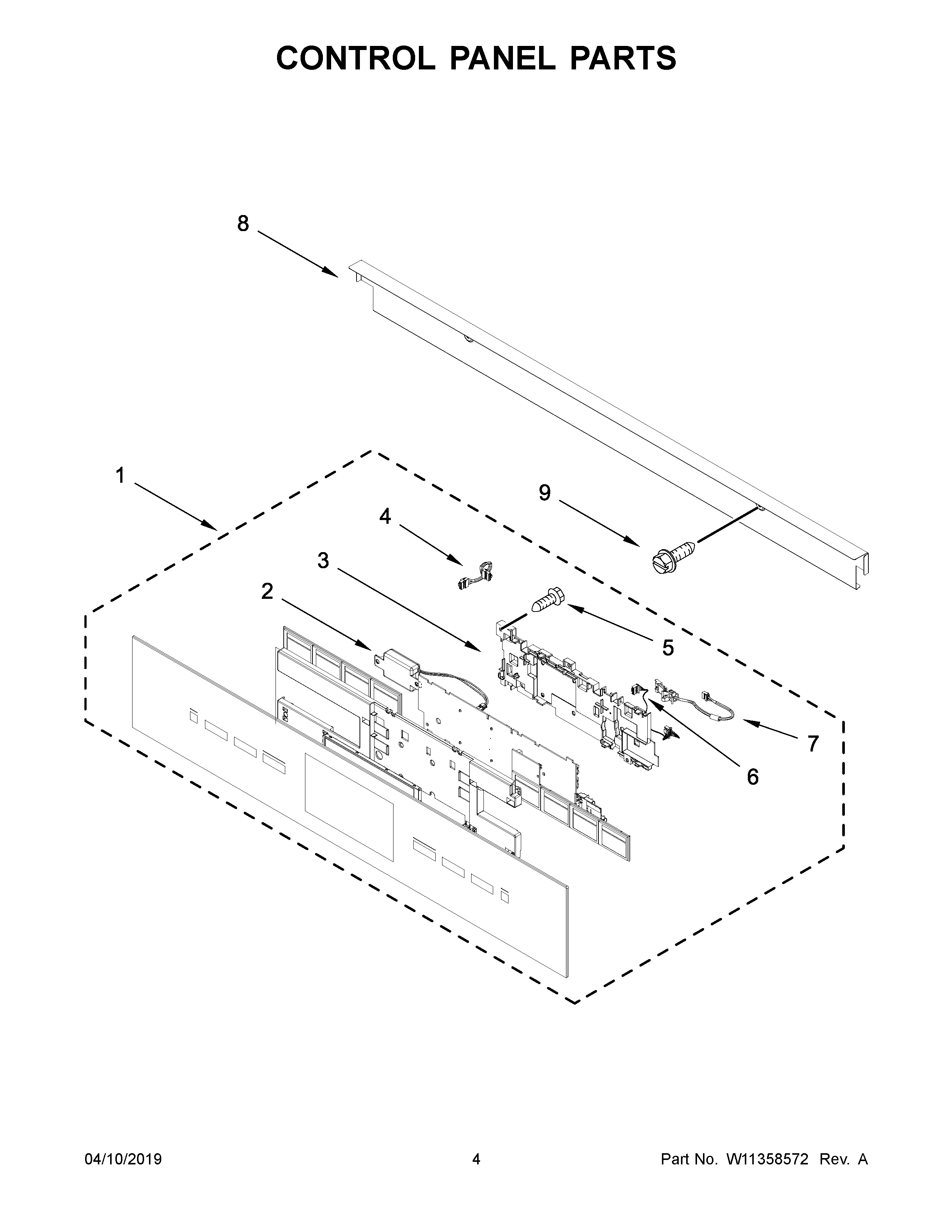

JMC2430IM01 03 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY W11241533
2	ASSEMBLY, SPEAKER
3	HOUSING
4	HARNESS, KEYPAD (LEFT TO CENTER)
5	MAY W10489172
6	HARNESS, KEYPAD (RIGHT TO CENTER)
7	JUMPER HARNESS, POWER SUPPLY
8	COVER, 30" COMPLIMENT
9	MAY 7101P426- 60
