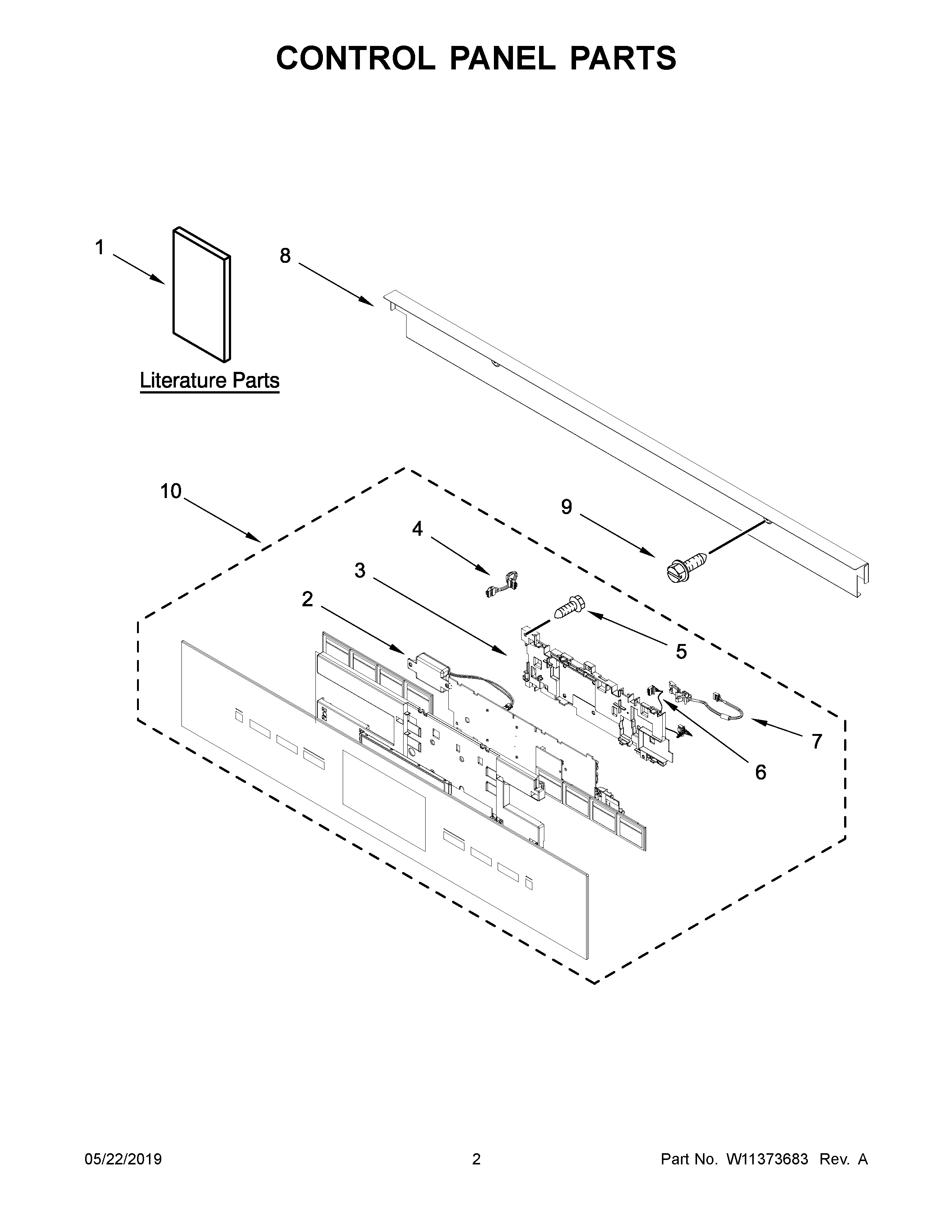

JMC2430IM02 02 – CONTROL PANEL PARTSadmin2025-04-26T09:36:57+00:00JMC2430IM02 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| NI | STRAP, GROUND |
| NI | HARNESS, FAN AND TURNTABLE |
| NI | BAG, HARDWARE |
| NI | JUMPER HARNESS, COMMUNICATION |
| NI | HARNESS, INVERTER |
| NI | CONDUIT |
| NI | HARNESS, INTERLOCK |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | HARNESS, CABLE TREE ASSEMBLY |
| NI | MAY 4450800 |
| NI | HARNESS, COMMUNICATION |
| 1B | MAY W11284428 |
| 1A | MAY W11235346 |
| 1 | MAY W11235626 |
| 1C | MAY W11235305 |
| 2 | ASSEMBLY, SPEAKER |
| 3 | HOUSING |
| 4 | HARNESS, KEYPAD (LEFT TO CENTER) |
| 5 | MAY W10489172 |
| 6 | HARNESS, KEYPAD (RIGHT TO CENTER) |
| 7 | JUMPER HARNESS, POWER SUPPLY |
| 8 | COVER, 30" COMPLIMENT |
| 9 | MAY 7101P426- 60 |
| 10 | MAY W11241533 |
