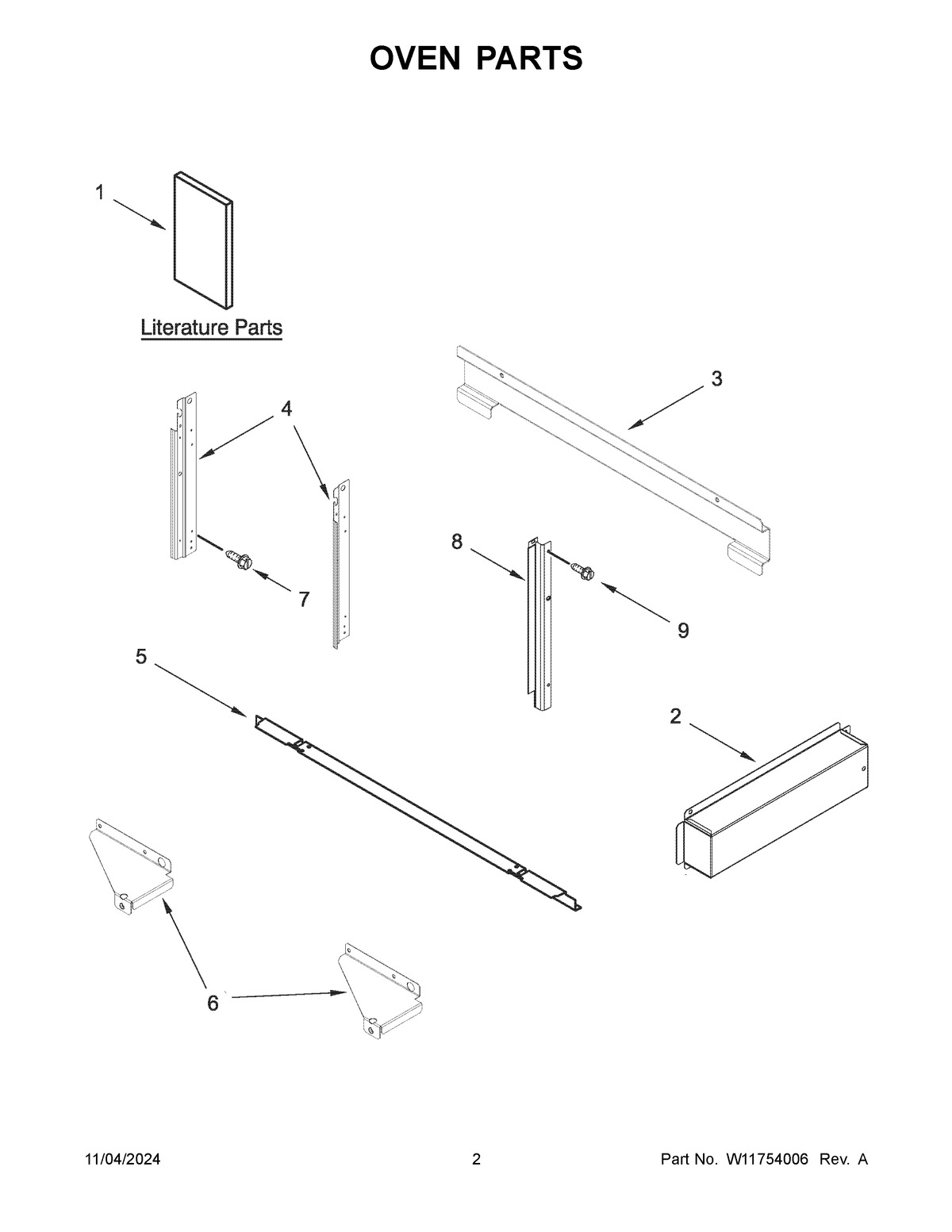

JMC2430LL01 02 – OVEN PARTS

JMC2430LL01 02 – OVEN PARTS

Written by

in

JMC2430LL01 02 – OVEN PARTS

Products

PositionProduct
NIW11578578 Whirlpool Microwave Wire Harness
NIFOLLOWING PARTS NOT ILLUSTRATED
NIW11356986 Whirlpool Wire Harness
NIW11546965 Whirlpool Wire Harness
NIW11226264 Whirlpool Wire Harness
NIW11539494 Whirlpool Wire Harness
NIW11356992 Whirlpool Conduit
NIW11578580 Whirlpool Wire Harness
NIW11598162 Whirlpool Hardware
1AQUICK START GUIDE
1BTECH SHEET
1LITERATURE PARTS (OWNER'S MANUAL)
2W10239155 Whirlpool Microwave Cover
3W11673269 Whirlpool Support Bracket
4AW11627411 Whirlpool Mounting Rail
4W11627410 Whirlpool Mounting Rail
5W11676904 Whirlpool Trim Assembly
6AW10239157 Whirlpool Microwave Support
6W10239156 Whirlpool Microwave Support
7SCREW
8W11239807 Whirlpool Mounting Rail
8AW11239805 Whirlpool Mounting Rail
9W11602623 Whirlpool Screw
